1 Who this book is for

You hold an amateur licence, you have an HF (high frequency, shortwave) transceiver, and you want to move messages and mail between stations without the internet. You do not need to be a programmer. If you have made an FT8 contact, run a packet node or sat through an evening net, you have the background this book assumes.

It is also written for the ham who wants to know why: why a lost frame costs only that frame, why the station sometimes waits before keying when the channel sounds clear. The reasoning is in plain speech, with the numbers taken from the software itself. It is not a programming reference: it names frames and bytes, because those travel between stations, but never a source file.

2 Two ways through the book

The operator route is Parts I and II. Part I is the big picture: Chapter 1, then Chapter 2, which follows one piece of mail from one operator to another and is the best short tour of the whole system, then the radio background in Chapter 3. Part II is the operator's manual: installing, every window of the client, what the outbox is telling you, and accounts.

The deep dive is everything after that, in the order a reader needs it. Part III is the signal: the passband, the error-correcting codes, the three modems and the receiver. Part IV is the protocol, everything that happens on the air between stations. Part V covers the services built on it, such as emergency calls and mail. Part VI is the station software, Part VII is FmLink, and Part VIII explains how mLink is tested.

Each idea is explained once, in one chapter, and every other chapter links to it: when a sentence ends in a link, the full story is at the other end. Reading only the box at the top of each chapter is a fair way to get the shape of the parts you skip. For a number in a hurry, go to Appendix A; for the bytes of a frame, Appendix B.

3 Conventions

3.1 One yardstick for signal strength

Every signal-to-noise figure in this book is on one scale, SNR@3k: the signal against the noise in a 3 kHz SSB (single sideband) bandwidth, defined in Section 3.4.3.

3.2 Frame chains in brackets

One transmission from an mLink station is usually several frames back to back. We write it as frame names in square brackets, in the order they go out:

[presence][rts][bulk 0][bulk 1][bulk 2]

That reads: a PRESENCE frame (who is talking), a request to send (what is coming and for whom), then three bulk data frames. "Protocol" in this book always means what happens on the air, never the conversation between your station and the program you look at.

3.3 The boxes

3.4 Glossary terms and cross-references

A term with a dotted underline, like region, is a glossary entry. Hover over it for a one-line definition, or follow it to the glossary at the back. A term is linked the first time it appears in a chapter. References to chapters, sections, figures and tables are live links, numbered automatically. Acronyms are spelled out the first time a chapter uses them, and where the wider industry has a name for something mLink built, we give that name too.

1.1 The problem it solves

Hams have always moved traffic without anyone else's infrastructure. The radiogram, the traffic net, packet radio and the modern digital modes all answer the same question: when the phones and the internet are not an option, how do words get from here to there?

mLink answers it for today's shack: a computer and a sound card between the operator and the radio, and messages that look like the ones people already write, with subjects, recipients, replies and attachments. It is built for the conditions where the easy assumptions fail:

• The path is poor and it changes. On HF (high frequency, the shortwave bands), a station you copied solidly ten minutes ago may be down in the noise now and back in another ten. Chapter 3 explains why.
• Everyone shares one frequency. No central controller hands out turns. Each station decides for itself when to transmit, and two that decide at the same moment ruin each other's signals.
• Stations come and go. Some run all day from a fixed shack, some for an hour on battery. Some have internet access; in a real emergency most will not.
• Air time is precious. A weak-signal channel carries tens or hundreds of bytes per second, not millions. Every byte repeated needlessly is air time taken from someone else.

1.2 What mLink does

• Nets with accountability. A virtual net with a net control, a roster and roll calls that take seconds, bulletins that come back with a record of who received them, and standing orders every member keeps. See Chapter 22.
• Mail to anywhere in the world. A subject, recipients, copies, replies tied to the mail they answer, and attachments. Mail travels by radio between stations, and through any station with internet access to a central mailserver. That lets a station on one frequency send mail to a station on a different frequency or band, in another region or another country, or to an ordinary email address. It never spends air time it does not have to, and it is never thrown away for taking too long. See Chapter 24.
• Messages. Short text to one station or to everyone listening, with several exchanges on the frequency at once.
• Delivery without the internet. Stations exchange messages and mail by radio alone, and a station that hears both ends relays for one that does not. See Chapter 19.
• Distress calls. A call for help has its own slice of the passband and its own very slow, very robust signal, which every station listens for at all times. Nothing is allowed to make a distress call harder to send or harder to hear. See Chapter 23.
• Strong encryption, for services that may use it. AES-256-GCM with keys agreed from signed certificates or shared across a group, for services such as MARS and SHARES whose rules allow it. It stays off on amateur frequencies. See Chapter 26.
• Strong compression. Every message is compressed with Zstandard at its highest setting, with a dictionary trained on radio traffic so that short messages shrink too. See Chapter 21.
• One station, several radios, several operators. Computers on different bands join into one station, and operators sign in with their own accounts and roles. See Chapter 31 and Chapter 7.

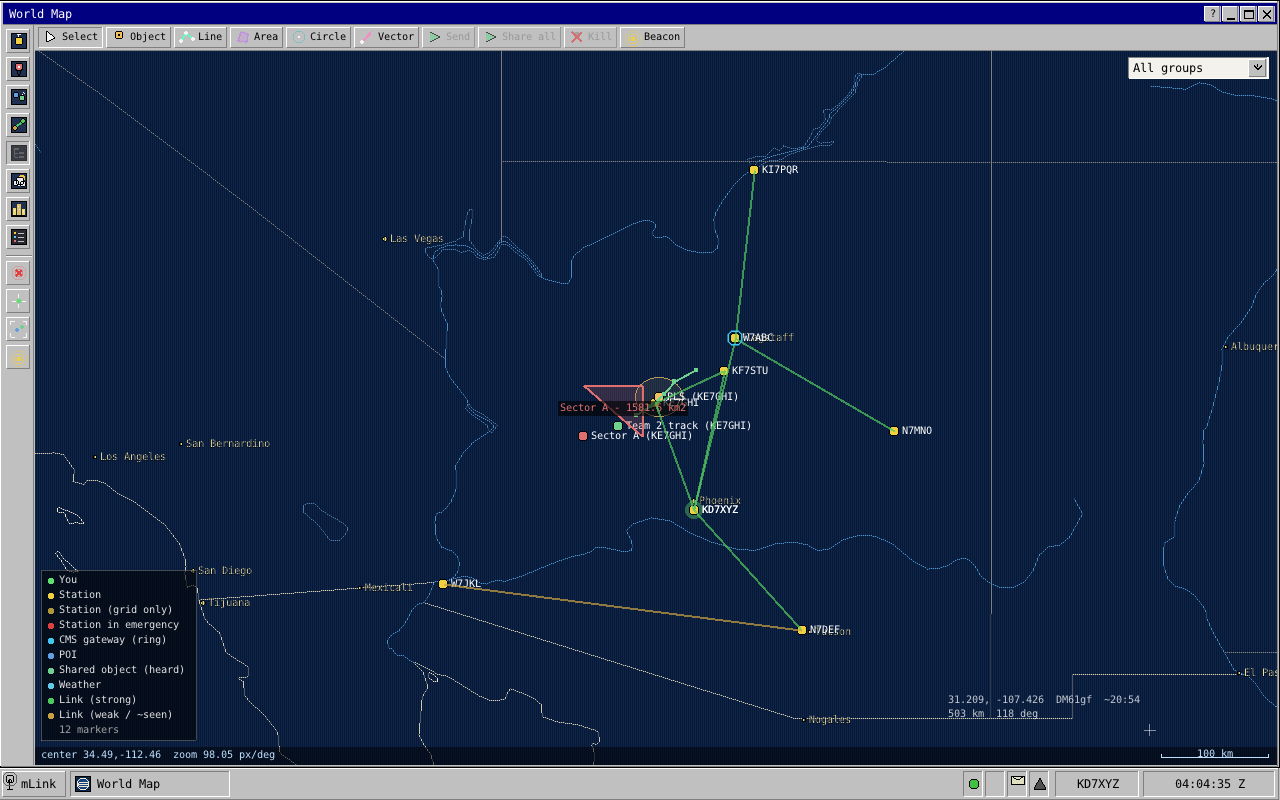

• Position and maps. Stations report where they are, and operators share map sketches and search patterns. See Chapter 28.
• Internet data shared over the air. A station with internet access can fetch something such as a weather forecast for stations without it. See Chapter 27.

Underneath all of them is one job: getting a string of bytes from one station to another, completely and correctly. Chapter 2 follows that job from end to end.

1.3 The three programs

mLink is three programs that cooperate. Only one of them ever touches a radio.

1.3.1 The station daemon

The station daemon is the program that runs your station. (A daemon, in computing, is a program that runs in the background with no window of its own.) It owns the sound card and therefore the radio. It holds the modems, the error-correcting codes, the receiver that listens to the whole passband all the time, and every rule about when to transmit and what to say. It keeps a database of everything that must last: stations heard, messages and mail, the outbox, the settings. Every decision about the air is made here, from what this station has measured.

The daemon runs whether or not anyone is looking at it: a station can sit unattended, listening, answering and carrying traffic for others. See Chapter 29.

1.3.2 The client

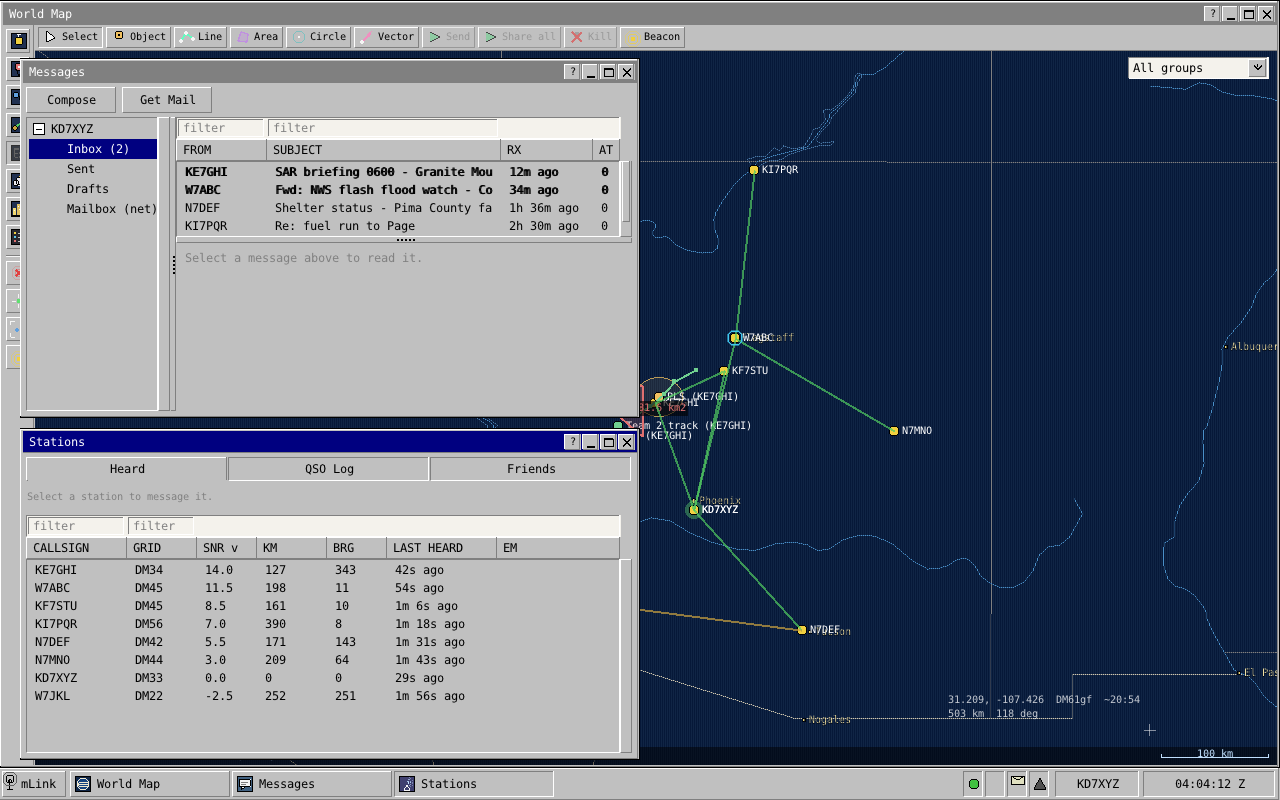

The client is what you look at: one window laid out like a small desktop, with a Start menu of applets for mail, the stations heard, a map, a spectrum display and more. The same client also runs in a web browser.

The client is deliberately thin. It keeps no messages of its own; it sends commands to the daemon and shows the updates the daemon sends back. So you can close it and the station keeps working, you can connect from another computer, and several operators can work one station at once. Chapter 5 walks through the client; Chapter 30 describes the connection.

1.3.3 The mailserver

The mailserver is a separate program that runs on an internet host and has no radio at all. It keeps a mailbox for each callsign, passes mail to and from ordinary internet email, and runs mailing lists. A station with internet access talks to it directly, and by doing so becomes a gateway for the stations around it that have none: it says on the air that it can reach the mailserver, and carries mail between the air and the mailbox. See Chapter 25.

The mailserver is central to getting mail delivered. It is the one place a mail can wait, for as long as it takes, for a recipient who is off the air, out of range or on another band, and the one place every gateway can reach. Most mail between stations that are not in range of each other ends up passing through it.

That the radio side also works without it is a feature, not the normal case. Two stations with no internet still exchange mail directly or through other stations, and a frequency cut off from the internet keeps working as a net. When a gateway comes back into range, the waiting mail moves on.

1.4 Four habits: a net that runs itself

If you have sat in on a well-run traffic net, you have the right picture. Stations check in, everyone listens to everything, and when one station cannot reach another, somebody in the middle offers to relay. mLink works the same way with one difference: nobody has to be net control. Every station follows the same rules and decides for itself from what it has heard. Four habits make that work.

1.4.1 Stations announce themselves

A station opens its transmissions with a short frame called PRESENCE, carrying its callsign and grid square, which also serves as its station identification. With nothing else to say it still sends one alone from time to time, a beacon, so the stations around it know it is there. See Chapter 14.

1.4.2 Stations learn who hears whom

Every frame a station decodes tells it that the sender exists and how strong the sender was on arrival. Each station builds a table of the stations it hears and how well, and stations share short summaries of their tables on the air, so each one learns not only "whom do I hear?" but "whom do my neighbours hear?" See Chapter 18.

1.4.3 Stations choose how to send from what they measured

There is no speed setting and no mode switch. A station with something to send looks up how well the path has been working and picks for itself: short messages and weak paths go on a slow, robust signal, large messages over good paths on a fast one (Chapter 15). When part of a long transfer is lost, the receiving station says exactly which part, and only that part is sent again (Chapter 16).

1.4.4 Stations relay for each other

There are no routes to configure and no digipeater paths to type in. Stations keep a copy of traffic they overhear, even when it was not for them. When a sender finds it cannot reach the destination, it asks the stations around it at that moment, and one that has heard the destination recently offers to carry the message. The destination records it as coming from the original sender, not from the helper. See Chapter 19.

1.5 One system, top to bottom

Many operators know Winlink, the long-established radio email system. Winlink got the product right: mail is the right unit for emergency traffic, and a central mail store reached through internet gateways is the right shape for a network. mLink keeps both, and is intended as a full replacement for the Winlink network.

What it changes is how the pieces fit. A Winlink station is assembled from separate programs written at different times by different people: a mail client, a modem program, gateway software, and the central servers, joined by interfaces that each know little about the others. mLink is one system designed as a whole. The modem knows what kind of traffic it is carrying, the part that shares the channel knows what the modem can do at the present signal level, the mail layer knows which stations have been heard and which of them can reach the internet, and the mailserver knows what a station on the air can and cannot afford to send. Each layer has what it needs from the others, so nothing has to be configured to match, and no air time is spent on negotiation between them.

Winlink works with several modems, and a station can only use the ones it has. mLink has one signal design, built into the daemon, and every mLink station can talk to every other.

mLink is built to beat Pactor, VARA, ARDOP and packet where it counts for an organisation: mail that arrives, and a frequency that carries the traffic of everyone on it. Those modems each connect one station to one gateway. The operator keeps a list of gateways, picks one, and hopes it is listening and in range on that band at that hour; if it is not, the mail does not move. An mLink network works together:

• Every station is always decoding and always helping. There is no particular gateway to reach and no gateway list to keep. Any station that hears you can carry your mail, relay your message or tell you that mail is waiting (Chapter 19, Chapter 24).
• The frequency is never held by one pair. Several exchanges run side by side in different parts of the passband (Chapter 17).
• No session to set up. No connect, no negotiation of speed, no disconnect. A transmission starts with the data.
• Only what was lost is sent again, and a frame is the same length whatever the signal level, so nothing is re-timed or re-negotiated when the path changes (Chapter 16).
• It reaches weaker stations. Short messages get through at −5 dB and a distress call at −17 dB (Chapter 9).
• Less is sent in the first place. Every message is compressed hard before it goes on the air (Chapter 21). For ordinary text traffic that alone can put mLink ahead of even the fastest of those modems in the time a message takes.

Raw speed between two stations on one strong path is the single measure where the fastest hardware modems are ahead, and compression narrows even that for ordinary text. On every other measure above, mLink is designed to lead. Simulation bears this out: a twelve-station net running for hours delivered every mail and every message, with stations helping one another and not one transmission lost to overlap (Chapter 33). A side-by-side trial on the air is still to come; hardware modems are expensive to borrow.

The largest difference an operator meets is in the radio half. A Winlink station exchanges mail by connecting to one particular gateway for a session, and only those two stations may use the frequency meanwhile. mLink has no connection step: every station on the frequency hears every transmission, any station can hold and carry mail for another, and a gateway that hears your station offers you your waiting mail without being asked.

1.6 Where mLink stands

mLink is in active development and approaching its final phase. The signal side (the modems, the codes and the receiver) is settled, and the core of the protocol is complete: stations find each other, choose how to send, share the channel, repair losses, recruit relays, and move mail and distress calls end to end. All of it is exercised continuously by a test suite that runs many stations against a simulated shared radio channel (Chapter 33). Proving the system on real HF paths is part of the phase now under way. One piece is still being built: FmLink, the same design for FM simplex on VHF and UHF (Chapter 32).

1.7 What to remember

• mLink moves messages, mail and distress calls between amateur stations over a shared, fading channel, with or without the internet.
• It is three programs: the station daemon (owns the radio and makes every decision), the client (a window onto the station, desktop or browser) and the mailserver (internet mailboxes, no radio).
• It is one system designed as a whole, intended to replace the Winlink network and its separate programs. The mailserver is central to delivery; working without it is a feature for when the internet is gone.
• Four habits make the net: stations announce themselves, learn who hears whom, pick how to send from what they measured, and relay for each other.

2.1 The example

Three stations are on one 40 m frequency. None has internet access.

• A (KX0AAA) has a mail for B.
• B (KX0BBB) is the recipient, a few hundred kilometres away.
• C (KX0CCC) is unattended. It listens and helps.

The mail is a text report. Compressed and wrapped it is 2,000 bytes. B has reported hearing A at +10 dB (SNR@3k), and A uses that figure.

2.2 Scenario 1: B hears A

1. Compose. The operator at A writes the mail in the client and presses Send. The client hands it to the station daemon in one command; the station makes every decision from here (Section 5.5.2, Chapter 30).
2. Outbox. The station saves the mail in its outbox as pending, then queues it (Chapter 6).
3. Check and wrap. The station computes a 16-bit integrity check over A's callsign, B's callsign and the mail. That value also names the mail on the air. It then tags the content as mail, compresses it if that makes it smaller, and adds one byte saying how it was packed: 2,000 bytes (Section 16.2, Chapter 21).
4. Choose how to send. The station picks from the size and its link estimate for B. A small message or a weak path goes as a shortburst or longburst. 2,000 bytes over a path better than +6 dB go as a bulk transfer. With the 2-byte check in front that is 2,002 bytes in three frames: frame 0 at rate 1/2 holds 603, frame 1 at rate 3/4 holds 907, frame 2 at rate 5/6 holds the last 492 (Chapter 15).
5. Wait for a free moment. The station keys only when it is not in another exchange, no other station has reserved the part of the passband it needs (a defer), and its receiver hears nothing. If the frequency has just gone quiet it first waits a random time, from a fraction of a second to several seconds. The outbox row becomes airing (Chapter 17).
6. Transmit. One transmission carries the mail: [presence][rts][bulk 0][bulk 1][bulk 2]. PRESENCE gives A's callsign and grid. The RTS says three bulk frames follow for KX0BBB, rates up to 5/6, and gives the check value. Both are 0.64-second frames on the bulk-control channel (Section 8.5.1). After 150 ms come the three 5.44-second bulk frames, sent by OFDM (Chapter 12) and protected by an LDPC code (Chapter 9). Total: 17.8 seconds. C hears the RTS and stays off the bulk region until the transfer ends (Chapter 14).
7. Receive. B decodes the PRESENCE and RTS, works out when frame 0 starts, and finds each later frame one frame-length further on. In this example a fade destroys frame 1. Frame 2 still decodes, because its position was fixed by frame 0. B keeps frames 0 and 2 and has a 907-byte gap (Section 13.8).
8. Reply. About two thirds of a second after A's transmission ends, B sends [presence][dnak] on the same control channel, 1.3 seconds. The dNAK is a map with one bit per bulk frame; only frame 1's bit is set (Chapter 16).
9. Repair. A sends only frame 1's 907 bytes, and one rate more robust than they were lost at: two rate-1/2 frames of 603 and 304 bytes, in [presence][retx-rts][bulk 0][bulk 1], 12.3 seconds. B writes them into the gap. mLink calls this selective repair dARQ (Section 16.5).
10. Verify. B unwraps the mail and computes the same 16-bit check. It matches. A mail that fails the check is neither delivered nor acknowledged.
11. Acknowledge. B sends [presence][ack]. The ACK names the mail by its check value. B's client shows new mail from A. A's outbox row becomes sent.

From the first PRESENCE to the end of the ACK: about 35 seconds, of which 32.7 are transmission (17.8, 1.3, 12.3 and 1.3).

2.3 Scenario 2: B cannot hear A, but C hears both

A's estimate for B is a few minutes old and still looks good, so steps 1 to 6 happen as before. C is not the addressee, but it decodes the transfer and keeps a copy.

1. Silence. A waits five seconds for a reply. None comes.
2. Probe. A does not send the bulk frames again. It sends one short question, [presence][qsl], a probe that carries no data. Silence again (Section 16.6).
3. Ask for a relay. A sends a REQUEST naming KX0BBB and the mail's check value. It does not carry the mail. C holds that mail and heard B within the last two minutes, so after a random wait it sends an OFFER saying how well it hears B. A waits two seconds for better offers, then names C in a SELECT: [presence][relay/request], [presence][relay/offer], [presence][relay/select].
4. The relay delivers. C sends the mail to B as a transfer of its own: [presence][relay/for][rts][bulk 0][bulk 1][bulk 2]. The RELAY/FOR frame names A as the author and gives the original check value. B replies to C exactly as in Scenario 1, repairs included, and files the mail as coming from A.
5. Result. C sends A a RELAY/RESULT frame. A's outbox row becomes sent. If C cannot reach A at once, it holds the result and sends it when it next hears A (Chapter 19).

2.4 Scenario 3: nobody can reach B

B is off the air and C cannot hear it either.

1. Transfer, silence, probe, REQUEST happen as in Scenario 2. Nobody offers.
2. One more attempt. A station can hold a copy only if it caught the opening frames, so no offers may mean the opening was lost. A sends the whole transmission once more, then asks again (Section 16.6.3).
3. Deferred. Still nothing. A stops transmitting for this mail and marks the row deferred: no relay has volunteered yet; it will ask again after a growing wait.
4. Try again later. When A next hears any station, and at least one minute has passed since the last try (doubling after each failed try, up to 32 minutes), it tries again: directly if the station it hears is B, otherwise by asking for a relay. Waiting mail goes oldest first and is never discarded for waiting (Chapter 20).

If a gateway is on the frequency there is one more path. A gateway that overhears the mail puts a copy in B's mailbox on the mailserver and answers A's REQUEST by saying so; A's row becomes deposited. Any gateway that later hears B offers B the waiting mail (Chapter 24).

2.5 What to remember

• B hears A: one transmission, a reply naming any lost frames, a repair of only those frames, an ACK. Here 2,000 bytes took about 35 seconds.
• B does not answer: one probe, then a relay chosen on the spot from the stations that hold the mail and hear B.
• Nobody can help: the mail is deferred and retried when a station is heard again. Mail does not expire.

3.1 Your transceiver is an audio pipe

An SSB (single sideband) transceiver is usually thought of as a voice radio. For data work, think of it as a pipe for audio. Whatever audio you feed into its data input comes out of the far station's data output, much the same as it went in. To your radio, every mLink signal is just sound.

3.1.1 Upper sideband: audio pitch becomes radio frequency

In upper sideband (USB) mode, the radio takes each audio tone and moves it up so that it sits that many hertz above the dial frequency. A 1,000 Hz tone fed into a radio set to a dial frequency f goes out on the air at f + 1,000 Hz. At the receiving end the process runs backwards, and a receiver set to f turns that signal back into a 1,000 Hz tone. Tones stay tones, their spacing stays the same and their timing is preserved. mLink runs on upper sideband, in the radio's data mode where it has one (often labelled DATA-U, PKT-U or DIG-U).

That is why this book describes mLink's signals in audio terms. When a later chapter says a signal is centred on 2,250 Hz, it means the audio fed to the radio, and therefore 2,250 Hz above the dial on the air.

3.1.2 The pipe is about 3 kHz wide

The passband is the range of audio frequencies the radio lets through. SSB radios are built around voice, and a typical one passes something like 3 kHz of audio. mLink is designed to fit inside that, and it uses nearly all of it, from very low audio right up to the top. Both ends matter. Many radios narrow their filter for data modes, or roll off the low audio to keep voice crisp, and a radio that does either cuts off part of mLink.

3.2 Sound cards and samples

Between the radio and the computer sits a sound card, often built into a small interface box. On receive it measures the audio voltage many thousands of times a second and hands the computer a stream of numbers. Each number is a sample, and how many are taken each second is the sample rate. On transmit it does the reverse.

A sampled signal can only represent frequencies up to half the sample rate. mLink does all of its signal processing at 12,000 samples per second, so it can represent audio up to 6,000 Hz, twice what the passband needs. Many sound cards prefer to run at 48,000 samples per second; the station then converts between the card's rate and its own.

Because the rate is fixed, time and samples are interchangeable throughout mLink. One second is 12,000 samples. A bulk frame is 65,280 samples, which is exactly 5.44 seconds. Timing that matters is counted in samples, and that is how a receiving station can predict, to the sample, where the next frame of a transfer will begin.

3.3 Tones, phase and the I/Q picture

Every mLink signal is built from tones. A pure tone has three properties: its frequency (how many cycles per second), its amplitude (how loud) and its phase (where in its cycle it is at a given instant). A modem carries data by changing one or more of these from one short stretch of time to the next. Each stretch is a symbol, and the number of symbols per second is the baud rate.

mLink changes tones in three ways. Its emergency modem changes the frequency, picking one of eight tones for each symbol (Chapter 10). Its announce modem changes the phase of a single tone (Chapter 11). Its bulk modem changes the phase of many tones at once, side by side (Chapter 12).

3.3.1 Phase as an arrow

Picture phase as an arrow spinning around a circle. The arrow's length is the tone's amplitude; its angle at any instant is the phase. Now watch it from a viewpoint that spins at exactly the tone's own frequency: the arrow stands still. If the transmitter jumps the phase by a quarter turn, the arrow jumps by a quarter turn and stays there.

Describe the arrow's tip by two coordinates, how far across and how far up, and you have what radio engineers call I and Q: the in-phase and quadrature parts of the signal. The receiver works with both numbers for every sample. The pair records not just how strong the signal is but where it is in its cycle, which is exactly what a modem that shifts phase needs to read. Plot where the arrow lands for each received symbol and you get the constellation display that digital-mode software shows: tight clusters for a clean signal, fuzzy clouds for a noisy one.

3.4 Noise, decibels and SNR

Every receiver hears noise: the hiss of the atmosphere, distant lightning, the power line next door and the receiver's own electronics. The most important number about any received signal is how strong it is compared with that noise, the signal-to-noise ratio, or SNR.

3.4.1 Decibels without tears

Radio people write ratios like this in decibels (dB), because the ratios involved span a huge range. A decibel figure is shorthand for a multiplication. The few values worth memorising:

Decibels add where ratios multiply: +13 dB is +10 dB and +3 dB, so twenty times. An SNR of 0 dB means the signal and the noise have equal power. A negative SNR means the signal is weaker than the noise: at −10 dB the noise has ten times the signal's power. For voice that is hopeless, but data modes copy signals like that every day.

3.4.2 Why an SNR needs a bandwidth

Noise is spread across all frequencies more or less evenly. A receiver listening through a wide filter lets in more of it; a narrow filter lets in less. Halve the bandwidth and you halve the noise power, which is −3 dB. So an SNR figure means nothing until you say what bandwidth the noise was measured in. The same signal can honestly be described as −15 dB in a 3 kHz bandwidth and about +3 dB in a 50 Hz one, because the 50 Hz slice holds sixty times less noise (about 17.8 dB less).

This is also half of the answer to "how can anything copy a signal below the noise?" A narrow signal only has to beat the noise inside its own narrow slice. The other half is time and coding: long symbols let the receiver average the noise down, and error-correcting codes repair the symbols that still come out wrong (Chapter 9).

3.4.3 The SNR@3k yardstick

mLink quotes every SNR against one fixed reference: the noise that a 3,000 Hz-wide SSB receiver lets through. We write this SNR@3k. It is the natural yardstick for an SSB station, because 3 kHz is roughly what the radio passes anyway. It means the same thing whether the signal being measured is mLink's narrowest or its widest, so any two figures can be compared directly. And it is one number everywhere: the strength your station reports for each station it hears, every figure in this book, and the thresholds the station uses to make its decisions are all SNR@3k.

If you use FT8 or JS8, you already know this kind of number. Those programs report against a 2.5 kHz reference instead of 3 kHz, so the same signal reads about 0.8 dB lower on mLink's scale. That is close enough to compare directly: a station that gives you −12 on FT8 is very close to −12 dB SNR@3k.

How far down each of mLink's three signals can be copied is listed in Section A.8. The short version: the slow ones work well below 0 dB, and the fast one needs to be a few decibels above it. mLink chooses between them from the measured path (Chapter 15).

3.5 Half duplex: you are deaf while you transmit

An amateur transceiver cannot transmit and receive at the same time on the same frequency. Its own signal is millions of times stronger at its antenna than anything it could hope to hear. This is half duplex, and it shapes a great deal of mLink's behaviour.

A station switches between receive and transmit with the PTT (push-to-talk) line, the same thing your microphone button does. mLink can key the radio by a CAT (computer aided transceiver) command, by a control line on a serial port, or by VOX (voice operated switch), where the radio keys itself when audio arrives. VOX needs no cable but is slow to react, so a station keyed that way sends a short tone ahead of every transmission to give the radio time (Chapter 8).

Half duplex has three consequences you will meet again and again:

• A station hears nothing while it transmits. If another station transmits at the same moment, neither hears the other, and anyone listening hears both on top of each other. That is why stations listen first and wait for a free moment (Chapter 17).
• Answers must wait until the sender has stopped. A reply that starts while the sender's transmitter is still on, or before its receiver is listening again, is lost (Chapter 16).
• Silence is ambiguous. A station that hears no answer cannot tell whether the other station never heard it, heard it but could not reply, or replied while something else was in the way.

3.6 The HF channel

A VHF path is usually line of sight and stays much the same from minute to minute. HF (high frequency, 3 to 30 MHz) is different, and the difference is why mLink's signals look the way they do.

3.6.1 The ionosphere and skip

Above about 60 km, sunlight ionises the thin upper atmosphere into layers, together called the ionosphere. An HF signal heading upward is bent back toward the ground and can come down hundreds or thousands of kilometres away: skip. It may bounce off the ground and go up again for a second hop. Which frequencies are bent back, and where they land, depends on the time of day, the season and the sunspot cycle. A path that works on 40 m in the evening may not work at noon.

Signals sent nearly straight up on the lower HF bands come back down all around the transmitter. This near-vertical incidence skywave (NVIS) is the workhorse of regional emergency communications, and it has the same character as any other skywave path: echoes, fading and drift.

3.6.2 Echoes: multipath

A signal rarely arrives by one path alone. One copy may come by a single hop and another by two; the ionosphere may split the signal into two copies travelling slightly different routes. Each copy covers a different distance, so they arrive at slightly different times. The receiver hears the sum: the signal plus delayed echoes of itself. This is multipath. On skywave paths the echoes typically trail the first arrival by half a millisecond to a few milliseconds, and in bad conditions by as much as 10 milliseconds.

3.6.3 Fading

The ionosphere is never still, so the lengths of the paths change all the time. When two copies of a tone arrive in step they add up; when they arrive half a cycle apart they cancel. As the paths shift, a signal fades in and out, sometimes over a fraction of a second, sometimes over minutes. Because the adding and cancelling depends on frequency, a fade can take out one part of the passband while leaving another untouched: on a waterfall display you can see dark notches wander slowly across a signal. A long transmission on HF should expect some part of it to meet a fade.

3.6.4 Drift and Doppler

The moving ionosphere also shifts each signal's frequency slightly, by a fraction of a hertz to a few hertz, and smears it: a pure tone arrives a little blurred. This is the Doppler effect, the same thing that changes the pitch of a passing siren. Separately, no two radios agree perfectly on what frequency their dials are set to. A few hertz or tens of hertz of difference is normal, and on upper sideband that error shifts every received tone by the same amount. Chapter 13 explains how mLink copes; an accurately calibrated radio still helps.

The standard channel models engineers use to test HF modems describe "good" through "poor" conditions as echoes of 0.5 to 2 milliseconds with Doppler smearing of 0.1 to 1 Hz. mLink's own tests run its stations through simulated fading, echoes and noise of this kind (Chapter 33).

3.7 Why slow symbols

Put all of that together and the trouble with sending data quickly over HF becomes clear. The obvious way to go fast is to send short symbols very quickly on a single carrier. At 2,400 symbols per second, a symbol lasts about 0.4 milliseconds. A 2-millisecond echo then overlaps the next five symbols, and the receiver hears each symbol mixed with the ghosts of the ones before it. A filter that learns the echo pattern can subtract it, but the pattern keeps changing as the path fades and drifts, so the filter is always chasing it, and a deep fade can leave it lost.

The other way is to make every symbol long compared with the echoes, so that an echo smears only the edge of a symbol and not the whole of the next one. All three of mLink's signals do this. The emergency modem's symbols last 160 milliseconds, which an echo of a few milliseconds barely touches. The announce modem's last 5 milliseconds, still longer than a typical echo. The bulk modem gets its speed back without shortening anything: it sends many slow tones side by side, each symbol about 27 milliseconds long, and starts each symbol with a guard interval that soaks up the echoes (Chapter 12).

Why three different signals and not one clever one is a question about jobs, not about echoes: one must be heard by everybody, one must move a lot of data, and one must get a distress call through almost anything. Chapter 8 takes it up.

3.8 What to remember

• On upper sideband the radio is an audio pipe about 3 kHz wide: audio pitch maps straight onto frequency above the dial. mLink uses nearly all of it, so keep the data filter wide at both ends.
• mLink processes audio at 12,000 samples per second, and counts time in samples.
• A tone seen as an arrow has two coordinates, I and Q; together they give its strength and its phase.
• Every SNR in mLink is SNR@3k: signal against the noise in a 3 kHz SSB bandwidth, within 1 dB of an FT8-style report.
• Radios are half duplex. A transmitting station hears nothing, so stations listen before they talk, answer only once the sender has stopped, and cannot be sure what silence means.
• HF brings echoes of up to several milliseconds, fading and small frequency shifts. That is why mLink sends slow symbols.

4.1 What you need

4.1.1 At the radio

• A transceiver. Any SSB transceiver you would use for a sound-card data mode such as FT8 or JS8. Its filters must pass audio from about 115 Hz to about 2,900 Hz, lower at the bottom than many voice settings reach (Chapter 8). FM radios are a separate story (Chapter 32).
• A sound interface between the radio's audio and the computer, with its own way of keying the radio. Three kinds are common: an interface of the SignaLink or Digirig type, which gives the computer a line that keys the radio's PTT (push-to-talk); a radio with a sound card built in, where one USB cable carries the audio and the radio's control commands; or, as a last resort, an interface that keys the radio by VOX.
• A way to key the transmitter. mLink knows three: a serial control line (RTS or DTR) wired to the PTT; a CAT command (computer-aided transceiver, the radio's own control protocol); or VOX, where the audio itself keys the radio. Use one of the first two. VOX is not recommended on HF: the delay before the radio keys is long and uncertain, mLink has to pay for it on every transmission, and support for it may be removed. Section 4.3.6 says what it costs.

4.1.2 The computer

The station daemon, the program wired to the radio, is built for Linux today; Windows and macOS are future build targets for it. The ready-made package is for 64-bit PCs (x86-64); on other processors, such as 64-bit ARM, you build it from source. The client you operate with comes as a Linux desktop program, a Windows desktop program and a web page for any browser. All three reach the daemon over the network, so a Windows or browser operator works a station that runs on a Linux computer. The mailserver is a separate program that somebody runs for a whole group (Chapter 25); your station needs only its address.

The computer should keep accurate UTC time, because every time the station records is UTC.

4.2 Getting mLink

4.2.1 The AppImage

The simplest route is a single file, mLink-x86_64.AppImage. An AppImage is a whole program in one file that runs without installing anything. This one holds the desktop client, the station daemon, the small web bridge that lets browsers connect, and the web client. It runs on Linux distributions from about 2020 onward, on any 64-bit x86 processor from about 2009 onward.

chmod +x mLink-x86_64.AppImage
./mLink-x86_64.AppImage

That opens the client. To run only the daemon, for example on a computer with no screen, put --daemon-only first; everything after it goes to the daemon:

./mLink-x86_64.AppImage --daemon-only --callsign W1AW --grid FN31pr --audio auto

4.2.2 Building from source

On a Debian or Ubuntu system the ready-made package is built with these packages: gcc g++ make cmake python3 autoconf automake libtool pkg-config patch bzip2 xz-utils zlib1g-dev libasound2-dev libx11-dev libxrandr-dev libxinerama-dev libxcursor-dev libxi-dev libgl-dev, plus libpipewire-0.3-dev for the PipeWire sound backend. The heavier libraries mLink depends on ship inside the source tree and are built along with it.

Use these three targets; a plain make builds a much slower debugging daemon.

make release                    # the daemon:  build/release/mlinkd
make mlinkd-ws-bridge-release   # the web bridge, next to it
make client-release             # the client:  client/bin/Release/mlink-client

Add USE_PIPEWIRE=1 to the first line to include PipeWire; without it the daemon uses ALSA, which every Linux system has. On a 64-bit PC the build assumes a processor from about 2013 onward (one with AVX2); for an older machine add MARCH=x86-64-v2. The web client needs the Emscripten compiler: make -C client web builds it into client/bin/web.

4.3 First run

4.3.1 Starting the station

From the client. Start the client. With nothing running yet, the "Connect to Daemon" window opens (Section 5.2). Leave the host at 127.0.0.1, the port at 8488 and the password at its default, mLink; type a name and press "Start local daemon". The client starts the daemon and signs you in.

By hand. Run the daemon in a terminal, then point any client at it:

mlinkd --callsign W1AW --grid FN31pr --audio auto

It runs until you press Ctrl+C. What you give on the command line is saved, so later runs need no options. mlinkd --help lists them all, and Chapter 29 explains them.

Both ways start the same station: the daemon keeps one database in one per-user data folder, however it was started, and a second daemon on the same database refuses to run. Where that file is, and why to back it up, is in Chapter 29.

4.3.2 Callsign and grid

Until the station has a real callsign it will not transmit, and the client shows a red "STATION BLOCKED" banner with the code callsign_missing (Section 14.2.2 has the rule and its one exception). Open Settings, then "Identity":

• "Callsign": type it and press "Apply". Up to nine characters, including a suffix such as VE3XYZ/P or KX0AAA-7; the whole callsign goes on the air.
• "Grid square": your Maidenhead grid square, such as FN31 or FN31pr, then "Apply". It puts you on other stations' maps. Every transmission carries it to six characters, which places you within about 5 by 7 km. To give away less, type only four characters, or keep six for your own maps and have the daemon send four with the command set_presence_grid_chars (the client has no control for it yet).
• "Position (lat/lon)": optional. Type a precise position and press "Set position", or tick "Use gpsd" if a GPS receiver is feeding gpsd on this computer (Section 28.1.2).

4.3.3 Sound device

Open Settings, "Audio", "Backend". First choose the sound system, the audio backend: pipewire if the daemon offers it and PipeWire runs on the computer, otherwise alsa. (null means no sound hardware, for testing.) Then pick the devices: "Capture (RX)" carries the radio's receive audio, "Playback (TX)" feeds the radio. "(System default)" uses the system's choice. Press "Apply".

The switch happens live and is saved. The daemon will not change devices in the middle of a transmission, and if the new device will not open it goes back to the one it had. "Refresh" shows an interface plugged in after the daemon started.

4.3.4 Audio levels

mLink has no level controls of its own. Set receive and transmit levels with the radio and the computer's sound mixer, as for any sound-card data mode. On receive, the "Waterfall" should show band noise as a steady speckle: black means too little audio, bright all over means too much. On transmit, raise the level until the radio gives the power you want, and stay below the point where the radio's ALC (automatic level control) acts. ALC squeezes the peaks, and a squeezed mLink signal spills outside its own strip of the passband (Section 8.8).

4.3.5 Keying the transmitter

Open Settings, "Radio", "Rig control". Its first line shows the current state, for example Rig: ptt-serial (key tier line). Under it is a form:

• "Backend:" none (mLink does not touch the radio; use this for VOX), ptt-serial (key with a serial control line, no CAT), or omnirig (key with a serial line or a CAT command, and read and set frequency and mode).
• "Device:" the serial port, such as /dev/ttyUSB0.
• "OmniRig ini:" for omnirig only, the radio's description file.
• "Baud:" the CAT speed; 0 lets the daemon choose.
• "PTT line:" "None (VOX / CAT)", "RTS" or "DTR", with "Invert" for interfaces that key on the opposite level.

"Apply" takes effect at once and is saved. The daemon then keys by a control line if one is set, otherwise by a CAT command if the radio's description has one, otherwise by VOX, and the first line names the result as the "key tier": line, cat-writeonly, cat-validated or vox. The same line warns in capitals of "CAT SILENT" (the radio stopped answering), "DEVICE LOST" (the serial port vanished) or "PTT STUCK" (the radio reports it is still transmitting when it should not be).

The description files are the ones written for OmniRig, the rig-control library by VE3NEA, so mLink needs no code of its own for each radio. The source tree carries nineteen, for popular Elecraft, Icom, Kenwood and Yaesu radios, in its rigs folder. The AppImage does not contain them: copy your radio's file from the source tree or from the OmniRig library to the station computer and give its path in the form.

The last setting is Settings, "Radio", "Keying (VOX)". A new station assumes the radio is not keyed by VOX. If yours is, tick "VOX keying"; the "VOX leader (ms):" box then takes any length from 0 to 2000. Or tick "Auto from rig control", and the station treats a key tier of vox, or no rig control at all, as VOX.

4.3.6 Why the VOX leader is 800 ms, and what it costs

A VOX-keyed radio starts transmitting only after it has heard audio, so the start of every transmission never reaches the air. A station set to VOX therefore sends a plain tone, the VOX leader, in front of every transmission, distress calls included, and lets the radio swallow that instead of the first frame (Section 8.9.1 says where the tone sits). A station keyed by a line or by CAT sends none.

The default, 800 ms, comes from a measurement. On an inexpensive VOX-keyed handheld with a Digirig, the transmitter's VOX and the far radio's squelch together swallowed 550 to 750 ms of each transmission. A 250 ms leader lost every one; 800 ms decoded reliably. If your radio's VOX is quicker you can shorten the leader, but test with another station first: a leader that is too short loses whole transmissions, while one that is too long only wastes time.

The cost is the leader itself: every transmission a VOX station makes is 0.8 seconds longer. A one-frame message that takes just under two seconds from a line-keyed radio takes almost three, and that time comes out of a channel everybody shares. A VOX station is also placed behind the others when stations take turns after activity (Section 17.7.1). The client says so in red when you tick the box. VOX works, but a radio keyed by a line or by CAT serves the whole frequency better.

4.3.7 Connecting to a mailserver

Mail for stations that are not on the air right now passes through a mailserver. In "Messages", select the "Mailbox (net)" folder (Section 5.5.3), type the server's address next to "Server URL:" and press "Apply". Then register, once: press "Register (internet)", or, with no internet here, type the callsign of a gateway you can hear next to "Gateway:" and press "Register over the air". What registering does is in Chapter 25; how mail then travels is in Chapter 24.

4.3.8 Operating from a browser

The daemon starts the web bridge by itself, and the bridge serves the web client on port 8489. The AppImage needs nothing more; a source build must be told where the web client's files are, with --web-root client/bin/web. Open http://127.0.0.1:8489 in a browser on the station computer. To let other computers on your network in, start the daemon with --web-lan; it prints the address to use. Chapter 30 explains the connection.

4.4 A first test

Before you depend on a station, prove each link of the chain in turn.

1. Is audio arriving? Open "Waterfall". Band noise should scroll. "Waiting for spectrum frames..." means the daemon has no audio.
2. Is the station happy? The tray should show a green dot and no red banner. If there is a banner, click it.
3. Is anyone heard? Tune to your group's frequency and wait. Stations appear in "Stations", "Heard" as they are decoded, each with an SNR on the SNR@3k scale. A newly started station listens for a while before it announces itself (Section 18.2).
4. Does the transmitter key? Send a short line in "Chat" to 0CQCQCQ. Watch the radio key, send, and unkey.
5. Does a message arrive? Select a heard station, press "Message", write a line and send. In "Messages", "Sent", its state goes from pending to airing to sent, and "Message acknowledged" appears in "Notifications". If the row shows anything else, Chapter 6 says what it means.

4.5 What to remember

• The station daemon runs on Linux, next to the radio. The client can be on the same computer, on another one, or in a browser.
• The AppImage is one file holding everything. However the daemon is started, it is the same station.
• The station stays off the air until it has a real callsign.
• Prefer keying by a control line or CAT. VOX works, but its 800 ms leader makes every transmission 0.8 seconds longer.
• Test the chain in order: audio in, banner clear, stations heard, transmitter keys, message acknowledged.

5.1 Before you start

The client does not run the radio. The station daemon does, and the client is a view onto it and a set of buttons that send it commands (Section 1.3). Close the client and the station keeps working. Open it again, on the same computer or another one, and everything is where you left it, because your QSO log, friends, canned messages, map objects and window arrangement are all kept by the station.

On-screen labels are quoted here exactly as the client shows them. Every time and date in the client is UTC; the clock in the bottom right corner reads, for example, 04:04:12 Z.

5.2 Connecting and signing in

When the client is not connected to a daemon, a window titled "Connect to Daemon" opens by itself in the middle of the screen. It closes by itself the moment you are signed in. It has five fields:

• "Host:" and "Port:": where the daemon is listening. For a station on the same computer that is 127.0.0.1 and port 8488.
• "Password:", with a "show" box to reveal what you typed.
• "Name:": who is sitting at this seat.
• "Position:": optional, a tactical position such as OPS CHIEF or SHELTER-3. It travels with your name on the mail you send.

The sign-in rule is printed under the Name field: "If your name has an account on the station, the password is your account password; otherwise the station password signs you in." Chapter 7 explains accounts, roles and walk-up guests.

Two tick boxes let the client remember what you typed: "Remember host/port" and "Save password (plaintext)", which writes the password to a file on this computer unscrambled.

Two buttons sit at the bottom. "Connect" attaches to a daemon that is already running. "Start local daemon" appears only when the host is this computer: it starts a daemon if none is answering on that port and signs you in as soon as it is ready (Chapter 4). Once you are connected, the same window, reopened from the Start menu, offers "Disconnect" instead.

The status line under the tick boxes says what happened. "Status: timed-out (no daemon answering at ...)" means nothing answered. "Status: sign-in refused" is followed by a short code in brackets and the station's own sentence of explanation:

• accounts_required: this station admits account holders only, so the station password alone gets nobody in. What that means for distress traffic is in Section 23.1.1.
• account_auth_failed: that name is an account, and the password did not work.
• auth_throttled: too many attempts from your address; wait and try again.

If the station ends a session you already had, the window comes back with "Status: signed out by the station" and the code, and a red message pops up telling you to sign in again.

5.3 The desktop

The screen is a desktop with a taskbar along the bottom. Each tool opens in its own window, and the client calls these tools applets. Drag a title bar to move a window; drag an edge or corner to resize it. Each title bar carries four small buttons. From left to right they are "?", which opens the Help window at the page for this applet, then minimise, maximise and close.

Dragging a window against an edge of the screen snaps it: to the top edge to fill the screen, to the left or right edge to take that half. If you shrink the client's own window until some windows fall off the edge, the client stacks them back into view.

The first time you connect to a new station, the client opens a starter set: "Status & Diagnostics", "Messages", "Stations" and "Waterfall". After that it restores the arrangement you left, which the station keeps, so it follows the station and not the computer you happen to sit at.

5.3.1 The Start menu

Click "mLink" at the bottom left to open the Start menu. The applets are grouped under six headings, in this order: Communicate, Stations & Map, Radio, Station, Data and System. Clicking an item opens the applet, or brings it to the front if it is already open; there is only ever one window of each.

Below the separator are three more items. "Connect..." reopens the "Connect to Daemon" window. "Stop daemon" stops a daemon that this client started; it is greyed out otherwise. "Quit client" leaves, after up to two questions. If your station is net control, a "Net control" box offers "Sign off & quit", "Leave silently" or "Cancel" (Section 22.9.9). If this client started the daemon, a "Quit mLink" box offers "Stop & quit", "Leave running" (the station stays on the air) or "Cancel".

Three applets, "Messages", "Stations" and "Status & Diagnostics", are each a hub: several related views under tabs in one window. When some other window has a "Message" or "Go to" button, it takes you to the right tab of the right hub.

5.3.2 The taskbar and the tray

Every open window has a slot on the taskbar. Click a slot to bring its window to the front; click the slot of the window already in front to minimise it.

The right end of the taskbar is the tray. It tells you, without opening anything, whether the station is connected, what it is doing, and whether anyone is in trouble.

The four small icons, left to right:

• Link to the daemon. A dot: green when connected, amber while connecting, red when offline. Hover over it to see the address; click it to open "Status & Diagnostics".
• What the station is doing. One letter, the first of the station's current transmit-decision state (I for idle, for example). Hover to see the full name. This is the state of the part of the daemon that decides when to transmit, which the protocol chapters call the MAC (medium access control). Click it to open "Status & Diagnostics".
• Messages. An envelope with a red count of the messages in the station's log. Click it to open "Messages".
• Emergency. A triangle, grey when all is quiet, red with an exclamation mark when this station or any station heard is declaring an emergency. Click it to open "Notifications".

The identity cell next to the clock says which callsign this station transmits as and who is signed in with what authority, as in KD7XYZ · alice · operator. A walk-up guest shows as guest: and the name typed at sign-in; a one-operator station shows only the callsign and the role. The role is shortened to admin, tech or operator. Hover over the cell for the long version.

While a transmission is queued or on the air, an "Abort" button appears just left of the icons. It calls off the current transmission and puts the message back in your Drafts (Section 16.9).

5.3.3 The red banner

Some problems stop a station from working at all: no callsign set, the sound device vanished, the radio would not key. When the daemon reports one of these, a red strip appears across the very top of the screen, above every window, reading "STATION BLOCKED --" followed by a short code and the reason, with "(+N more)" when there are several. It cannot be hidden behind a window, and it stays until the problem is fixed. Click it and the client takes you to the place to fix it: the matching Settings entry for a keying or FM-mode mismatch, "Status & Diagnostics" for anything else.

5.3.4 Pop-up messages

Short messages pop up at the bottom right, just above the taskbar, and fade after a few seconds: a green edge for success, amber for a warning, red for an error, blue for plain information. These are called toasts. A short one stays about three seconds; a long one stays up to eight, so you have time to read it. Click any toast to dismiss it. A toast that ends in a small » is also a link: clicking it opens the applet it is about.

Every warning and critical event the station reports gets a toast as well as a row in "Notifications", except the blocking problems that already own the red banner.

5.3.5 The keyboard and the lists

The Escape key peels away one layer per press, the most transient first. It cancels a quit box if one is showing; otherwise it closes the Start menu; otherwise it takes the text cursor out of the field you were typing in. While a dropdown list or a dialog box is open, Escape leaves the window behind it alone; close a dialog with its own "Cancel". Only when nothing else is in the way does Escape close the window in front.

Most lists in the client share one design. Click a column heading to sort by it, click again to reverse. A row of small filter boxes above the headings narrows the list to rows containing what you type.

5.4 On a phone-sized screen

The client has a second layout for a hand-held screen: the same applets and controls, arranged for a finger. It picks a layout when it starts, before it signs in, from the choice saved on this device or from what the device reports about itself. When neither settles it, it asks, full screen: "Are you on a phone or a desktop?", with two large buttons, "Phone" and "Desktop". The answer is saved. To change it later, open Settings, "Display", "UI scale" and press "Use phone layout" or "Use desktop layout"; the change takes effect the next time the client starts.

What differs in the phone layout:

• One applet at a time. There is no taskbar and there are no windows to move. The applet you opened fills the screen under a top bar. The bar's left button goes back, and names where it goes: the applet underneath, or "Home". Escape does the same.
• Home is the Start menu as a list of tall rows under the same headings, with a red "EMERGENCY" button fixed at the top that opens "Declare Emergency" in one touch.
• The tray moves to the top bar: the four status icons, and "Abort" while something is queued or on the air. Toasts drop down from under the bar.
• Lists become stacked rows. A table turns into rows two lines tall with no column headings, side-by-side panes sit one above the other, and a dropdown opens as a sheet at the bottom of the screen.
• Four applets get screens of their own. "Messages" shows its folders as a strip with "Compose" and "Get Mail" at the bottom, and opens a mail on its own screen. "Stations" lists the heard stations, most recent first; touch one for its details, with "Message this station" and "Show on map". "Settings" and "Help" show the tree first and the chosen page next. Back steps out of these inner screens before it leaves the applet. The other applets keep their desktop arrangement; one that is wider than the screen slides sideways under your finger.
• Nothing is arranged, so nothing is saved. The phone layout starts at Home every time and leaves your desktop arrangement alone.

A finger works like this. Touch and lift to press something. Slide to scroll a list. Hold still on a spot for the menu a right-click would open. On the map, slide to move it and use two fingers to zoom.

5.5 Communicate

5.5.1 Messages

"Messages" is your mail program, laid out like a desktop email client. Folders are on the left, the selected folder's contents on the right, and a toolbar with "Compose" and "Get Mail" across the top. The folder tree is headed by your callsign and holds:

• "Inbox", with the unread count in brackets. The columns are FROM, SUBJECT, RX (how long ago it arrived) and AT (how many attachments). Unread mail is shown in bold, replies are indented under the mail they answer, and a pencil in front of the sender marks a mail that another operator at your station is answering right now. Click a row to read it in the pane below; opening it marks it read.
• Folders you file into. "Archive" on an open mail moves it into a folder named archive, which appears in the tree once it holds something. In any folder other than the Inbox the same button reads "To Inbox".
• "Sent": everything that has left Drafts, one row per message, with its STATE, TYPE, DST (destination), BYTES, UPDATED and ERROR. The states, and the notes that appear beside them, are explained in Chapter 6.
• "Drafts": saved drafts, with a count. The last column says why each one is there, for example "Saved by you" or "Cut by your emergency broadcast".
• "Mailbox (net)": your station's link to the mailserver, described below.

Reading a mail shows "From:", an "Operator:" line with the sender's name and position if they gave one, "To:" and "Cc:", "Subject:", and a "Via:" line naming the mode the mail arrived in, with the dial frequency when your rig reports one. The buttons under the header are "Reply", "Reply All", "Forward", "Archive" and "Delete". Attachments are listed with a "Save" button each, which writes the file to your home directory. Small text files show their first lines, and pictures show as a thumbnail. A map attachment shows a one-line summary of its objects and an "Import to map" button that adds them to your World Map under the sender's callsign (Section 28.3.4).

If another operator at the same station is already replying to a mail, pressing "Reply" opens a box titled "Already being answered" that names them and asks "Reply as well?", with "Reply anyway" and "Cancel" (Chapter 7).

In Sent, select a row to "Edit" it (it reopens in the composer and replaces the original when you send), "Delete" it, or "Abort" it while it is still queued or on the air. In Drafts, "Send" transmits the draft exactly as saved, attachments included, "Edit" reopens it and "Delete" removes it.

At a station that is part of a cluster (Chapter 31), a "Mailbox:" choice at the right of the toolbar lets you look at another member's mailbox, read-only; "Local" brings your own back.

5.5.2 Writing mail

"Compose" in the toolbar, or any "Message" button anywhere in the client, opens the composer inside the Messages window. Its heading says what you are doing: "New message", "Reply", "Reply all", "Forward" or "Editing draft". A "New" button at the top right clears it. The fields are:

• "To:", with a "Cc+" button that shows a "Cc:" line. As you type a callsign, suggestions from your friends and the stations you hear appear as small buttons to click. Besides callsigns, "To:" takes 0CQCQCQ for everyone, or 0 followed by a net name (for example 0MARITIME) for a virtual net (Section 22.7.1).
• "Subject:" and "Message:", the body.
• Attachments. "Attach..." picks a file. "From map..." opens a short menu, "All my objects" or one "Group", and attaches those map objects as a file. Each attachment is listed under the buttons with a small "x" to remove it.
• "Broadcast area (CQ)..." replaces the recipients with a circle on the map, an area CQ. The World Map comes forward and asks you to click the centre. Back in the composer a line reads "Area CQ:" with the centre, the radius (50 km to start, changed in 10 km steps with "-" and "+") and a "Clear" button; the "Send" button becomes "Broadcast" and the area button becomes "Re-pick area...". Every station that hears the message keeps it; the circle decides who is alerted (Section 28.4).
• "Via:" at the bottom left chooses "Radio" or "Internet (CMS)", which hands the mail straight to the mailserver when this station has internet (Chapter 24). CMS is the client's label for the mailserver.

The figures at the right of the attachment row are worth learning to read. They show two sizes in kilobytes: the message after compression, and the most one transfer can carry. When the station has measured the link to the recipient, the second figure becomes what that link can carry, and the line adds the rate it expects to use, the link's signal-to-noise ratio (on the SNR@3k yardstick) and an estimate of the time on the air. Green fits this link now, amber would fit a better link or a relay, red never fits in one message and must be trimmed. Hover over the line for the reason in words (Section 15.5).

"Save Draft" keeps the message without sending. "Send" hands it to the station, and a small line at the bottom then shows the state of that send as it changes. A message that is too large is refused on the spot with a red toast.

If this station is not registered with a mailserver, the composer says so next to "Via:" in red: "not registered - relays won't carry this" on "Radio", or "needs Mailbox registration" on "Internet (CMS)". Registration is one button in the "Mailbox (net)" folder.

When the station holds an encryption key, an "Encrypt:" choice appears too, with "Clear", "To recipient" and "Group key". "To recipient" says beside it whether the station holds that callsign's certificate ("cert on file (encryptable)" or "no cert for this callsign"); "Group key" adds a second list to pick the key. Under the choice the composer says where encrypted mail can and cannot go, in red if "Via:" is set to "Internet (CMS)". The rules are in Chapter 26.

5.5.3 Mailbox (net) and Get Mail

The "Mailbox (net)" folder is where you connect this station to a mailserver (Chapter 25). A line at the top says which server is set and whether the station is registered. Below it:

• "Check via internet" and "Check via radio". After a radio check the button greys out as "Asked" with a countdown in seconds, because each radio check is a transmission.
• "Held at the CMS": after a radio check that finds mail, one line per mail with sender, subject and size, each with a "Fetch" button. Nothing is sent to you until you pick it.
• "Mailing lists..." lists the mailserver's lists with their subscriber counts, each with "Subscribe" or "Unsubscribe".
• "Server URL:", with two tick boxes, "Act as a gateway (carry others' mail)" and "Relay my mail check when nobody answers (opt-in)", and an "Apply" button. A station that carries others' mail is a gateway.
• "Station key:", the fingerprint of this station's mail identity, or a note that it is created the first time you register.
• "Register (internet)" (it reads "Re-register (internet)" once done) or, with no internet here, a "Gateway:" box for a callsign you can hear and "Register over the air". An unregistered station sees a short notice here saying what it is missing.

The "Get Mail" button on the toolbar does the same check by the best route available: over the internet when the station is registered, otherwise over the air.

5.5.4 Chat

"Chat" is a scrolling conversation, one line at a time, in the style of IRC or a keyboard net. A choice at the bottom left picks where the line goes:

• "On air": over the radio. "To:" starts as 0CQCQCQ, meaning everyone; put a callsign there for a directed line.
• "Internet": a chat room at the mailserver, named in "Ch:" (the room is cq unless you change it). It needs a registered station, and the hint line turns red to say so when yours is not.
• "This station": between the operators signed in to this station, including other members of its cluster. It is never transmitted.

Enter sends, and so does the "Send" button. A counter shows how much room is left: a chat line is capped at 156 bytes, the most one short message carries (Section 15.2). Anything longer is mail, and in "On air" the "Mail" button opens the composer already addressed to the same callsign. Your own lines are shown in dark red. Click an on-air line to see, at the bottom of the scrollback, how many times the station heard that message and when it first did. The view follows new lines only while you are at the bottom.

5.5.5 Nets

"Nets" runs or joins a virtual net: an optional net with a name, a net control, numbered members and roll calls (Chapter 22). The window has three parts: status lines at the top, a row of buttons that depends on what you are in the net, and the roster.

The status lines. With no net heard the window says "No virtual net on frequency." Otherwise the first line names the net, its type ("Casual" or "Safety Critical"), its net control, and two counters, the term and the roster's edition. The second line says what you are:

• "You hear this net; you are not in it (a bystander)."
• "You are member n.", with "for now" and an explanation added when a stand-in gave you the number (Section 22.9.3).
• "You are net control (member n)", with how many are on the roster and how many were heard lately.
• "Listening only: you hear this net and will not transmit.", at a station set to listen only.

More lines appear when they apply: that you follow net control through another member; who owns the net when the station running it is a stand-in or was handed the job; whether the net's standing orders are in your mail; "Asking to join ..."; "Roll call in progress", with a note when routine traffic is held, and afterwards "Last roll call:" with how many did not answer. After each roll call net control also reads how many members it heard directly, and, when another member reports hearing more of the net, a suggestion to let that member run it (Section 22.9.6).

The buttons follow from what you are.

• Not in a net: a "Net name:" box with "Open" (start a net under that name and become its net control), a "Net type:" list with "Casual" and "Safety Critical" for the net you are about to open (Section 22.9.8), "Join" (ask to be listed), and a "whenever heard" tick box that keeps the request on file across restarts. While a join is pending the only button is "Withdraw join".
• Member: "Leave net"; "Message the net", which opens the composer addressed to 0 and the net's name; and two tick boxes, "Traffic to pass" and "Need help", that your next roll-call check-in carries. A "Get roster" button appears when your copy of the roster is shorter than net control's; it reads "Asking..." while the request is out (Section 22.4.3).
• Net control: "Call the roll", "Step down", "Close net" (it changes to "Sure? Close" for a few seconds; click again to confirm) and "Message the net". Select a member in the roster and more appear: "Remove selected"; "Hand to callsign", which steps down and names that member as the next net control; "Let callsign run it", offered to the owner, which makes that member net control while you stay the owner (Section 22.9.5); and "Make alternate n" or "Drop alternate n", for up to three alternates (Section 22.9.4). The "Net type:" list switches a running net between the two types. A station that is only standing in for the owner sees "Take over this net" in place of the alternate and type controls.
• The owner, when another station runs the net: the member's buttons, and on a second row "Take the job back", "Close net", and, with a member selected, "Remove selected", "Let callsign run it" and the alternate button.

Two more lines sit under the buttons. "Bulletin:", for members and net control, takes a text every member must have and sends it with "Send bulletin"; net control's window then shows whether every member confirmed it or how many still lack it (Section 22.7.2). "Standing orders:", for the owner and the station running the net, takes a subject and a text; the button reads "Post standing orders", or "Replace standing orders" when the net already has some (Section 22.7.3).

The roster has three columns: the member's number, CALLSIGN and NOTE. The note says what the station knows about that member: "net control", "owner", "this station", "left the net", "did not answer the roll", "not heard lately", "listed on another member's word", and "alternate n". Net control's own line carries no number when your copy of the roster has no entry for it.

Things the net tells you arrive as toasts and as rows in "Notifications": a message or bulletin to the net ("Net name: message from callsign", or "(not a member) writes to the net" at net control), a roster copy that arrived, standing orders that reached your mail, that net control has taken you off the roster, and that another net with the same name is on the frequency.

5.5.6 Standard Forms

"Standard Forms" fills in the message forms that emergency communicators already use: ICS-213, Radiogram and about 150 others, grouped by organisation and region in a tree, with the forms you used recently at the top under "Recent" and a "Search:" box above. Choose one and it appears as ordinary fields. Required fields that are still empty are outlined in red when you press the form's submit button, and the form will not submit until they are filled. A successful submit places the finished text in the composer with the subject filled in; you choose the recipients and press "Send". Four buttons above the form do the rest: "Save draft" and "Load draft" keep a half-finished form, "Attach…" adds a file, and "Save PDF" makes a copy for a paper file.

5.5.7 Declare Emergency

"Declare Emergency" has two tabs: "Declare", to send a distress call, and "Heard", for distress calls the station has received. The service behind them is described in Chapter 23.

The "Declare" tab is built so that nothing on it can stop you sending. The red button at the bottom is always live. It reads "SEND DISTRESS" when a position will be included and "SEND DISTRESS (no location)" when not. Every field above it is optional, and a line of advice at the top changes as you fill them in, for example "No position - rescuers cannot locate you directly", in red when the news is bad. It warns; it never refuses.

Most fields are short menus, so they are quick under stress:

• "Severity:", such as "Immediate threat to life (Mayday)" or "Urgent, no immediate threat (Pan-Pan)".
• "Position:" has three choices. "Use my fix" sends the position the station already holds, and the window says which that is: the GPS fix, or the configured position when there is no live fix, with the coordinates. If the station has nothing, a line starting with "!" says why. "Enter manually" gives a "Grid:" box, "lat" and "lon" boxes and a "Pick on map" button, which brings the World Map forward for one click. "No position" sends none.
• "Accuracy:", "Where:" (water, wilderness, roadway and so on), "What:" (medical, injury, fire, lost and so on), "People:" and "Mobility:".
• "Who you are:" and a free-text "Detail:". If you type a character the distress call cannot carry, an amber "Not sent:" line lists what will be left out (Section 23.3.3).

If the station is transmitting something else at that moment, a line above SEND says "The station is transmitting now. Sending will interrupt it." SEND is still one press. Afterwards a box names what was stopped, "Message 12 aborted to transmit emergency broadcast.", and that message is in "Drafts" (Section 23.2).

After you send, the tab changes. It shows "BEACONING - repeating until canceled or acknowledged", the severity and whether a position went out, and two buttons: "CANCEL / SAFE" to stand the call down, and "UPDATE (re-send)" to send a corrected version after you change the severity or the detail in the fields below. A critical notification at the same moment gives the expected time between repeats (Section 23.4.1). Every client connected to the station shows the beacon, so any operator there can cancel it, not only the one who sent it.

The "Heard" tab label carries a count of unacknowledged calls, as in "Heard (1!)". A new call also raises a critical toast and turns the tray triangle red. Each row gives the call's number, who sent it, the severity and the station it came through, with "[ACK]" in front once it is acknowledged. Select one to see "What:" and "Where:", the detail text, and "Position:" with an "On map" button, or a line saying there is no position. After you have passed the call to the authorities, fill in "Contact:" (agency, case number or phone; optional) and press "Acknowledge (I forwarded this)" (Section 23.6). The row then reads "Acknowledged by ..." with the contact.

At the top of this tab, the tick box "Auto-relay heard SOS beacons" lets the station re-send distress calls it hears (Section 23.7). Leave it on unless you must stay silent.

5.6 Stations and the map

5.6.1 Stations: Heard

The "Heard" tab of "Stations" is the station's heard list (Section 18.6). The columns are CALLSIGN, GRID, SNR (Section 18.6.1), KM and BRG (distance and bearing from you), LAST HEARD, MODE (the mode the last frame arrived in, with your dial frequency when your rig reports it), VIA (which member of a cluster heard it) and EM (an exclamation mark for a station declaring an emergency). [NC] after a callsign marks the net control of the net on the frequency. The list is sorted by SNR, strongest first, until you pick another column. Distance and bearing need your own position; with only a grid square set they are worked from the grid.

The list has no age setting of its own. The station forgets a station one hour after it last decoded it (longer on a frequency with more than twenty stations), and LAST HEARD tells you how fresh each row is, so sort on that column to see who is on the air now. In a cluster, stations heard by other members are listed too.

Select a row and two buttons appear: "Message" opens the composer addressed to that station, and "Show on map", offered when the station's position is known, centres the World Map on it.

5.6.2 Stations: QSO Log

The "QSO Log" tab is an ordinary contact log: WHEN, CALLSIGN, GRID, FREQ, MODE, SENT and RCVD reports, and a COMMENT. "New" starts an entry stamped with the current time; the editor under the list changes the selected entry, with a "Message" button for that callsign and a "Delete" that asks first. "Export ADIF" writes the whole log to an ADIF file in your home directory, ready for LoTW, QRZ or any logging program, and "Import ADIF" reads one in.

5.6.3 Stations: Friends

"Friends" is your list of up to 32 regulars, whether or not they have been heard lately. Type a callsign next to "Add:" and press "Add". Each friend has a "Note:" and an "Alert:" setting of "Mute", "Notify" or "Sound", and "Message" and "Delete" buttons. With anything other than "Mute", a text message from that friend puts a row in "Notifications". "Sound" makes no sound yet, and the window says so. Friends are also the first suggestions when you address mail.

5.6.4 World Map

"World Map" shows you, the stations heard, the links between them, your own map objects, objects other stations have shared, and weather observations. The map ships with the client and needs no internet. Drag with the left button to move it; turn the wheel to zoom around the pointer. The night side of the Earth is shaded. The read-out at the bottom right follows the pointer: latitude and longitude, grid square, approximate local solar time there, and the distance and bearing from you. A scale bar in kilometres sits in the corner below it.

Markers. Your own station is green. A heard station is yellow, or a dimmer yellow when only its grid square is known and it is shown at the square's centre. A station not heard for half an hour fades, and fades further after six hours. A station in emergency is red and never fades, and while your own distress call is active your marker is joined by a pulsing red "SOS". A gateway has a ring round it. Click a station that has been sending position reports and its recent track appears.

Layers. The column of buttons down the left edge switches layers on and off: heard stations, your own objects, shared objects from others, link lines, a panel listing links station by station, weather, city names and the legend. A layer that is off shows its button pushed in and greyed, and the client remembers your choices on this computer. Below a divider are four actions: drop a search datum, centre on your position, zoom to fit every object, and "Beacon my position now".

The legend lists only the kinds of marker now on the map, from "You", "SOS (armed)", "Station", "Station (grid only)", "Station in emergency", "CMS gateway (ring)", "POI", "Shared object (heard)", "Weather", "Link (strong)" and "Link (weak / ~seen)". The link lines and the link panel come from the links map (Section 18.8). The panel, headed "Links - who hears whom", lists each station and the stations it hears, with their SNR; a double-click on a line centres the map on that station.

The toolbar along the top holds the tools for the tactical overlay (Section 28.3). While a tool is selected, a line across the top of the map says what the next click will do. "Object" stays selected so you can place several; the shape tools go back to "Select" when the shape is finished, and Escape goes back at any time. Dragging still moves the map in every tool.

Moving an object you have already sent sends it again, so everyone's copy follows. How objects travel and how a newer copy replaces an older one is in Section 28.3.2.

The right-click menu is in four groups: Place ("Drop POI here", "Drop datum here (SAR)", "Search pattern here..."), Navigate ("Center map here", "Copy coordinates", "Measure from here"), Weather ("Get weather here (one-off)", "Track weather here") and Radio ("Poll this area (who's here?)", "Beacon my position now").

• "Search pattern here..." opens a "Search pattern" box: choose "Expanding square", "Sector search" or "Ladder", give its size in kilometres and the heading of the first run, and for the square and the ladder the number of runs (6, 8, 12, 16 or 23); "Generate" lays the pattern out as a line object (Section 28.3.5).
• "Measure from here" sets point A of a measurement; Shift+click sets B, and the map shows the distance and bearing. Two Shift+clicks do the same without the menu, and Escape clears it.
• The two weather items add a row to "Tracked Data" for that spot and open that window.
• "Poll this area" asks, over the air, who is within 100 km of that point: a geopoll (Section 18.5).

Groups. Objects can carry a group label, such as a mission or team name. When any object on the map has one, a choice at the top right shows only one group's picture, yours and everyone else's together; "All groups" brings everything back. While a group is chosen, "Share all" sends only that group and zoom-to-fit fits only what is shown. The choice lasts until you close the client (Section 28.3.3).

5.6.5 POIs

"POIs" (points of interest) is the list view of your own map objects: ID, LABEL, GROUP, OWNER, LAT, LON and EXPIRES. Select one and edit it below: "Label:", "Notes:", "Group:", "Owner:", "Symbol:" and a colour, and fields that depend on the shape, such as "Radius (m):" with optional rings at two and three times the radius, "Brg/Range:" for a vector, a "Filled" box for an area, or a "Moving" box with a course and speed (Section 28.3.1). Tick "Set" next to "Expires:" to give it an expiry time, or leave it clear for an object that never expires. "Refresh" renews an object so it does not expire, "On map" centres the map on it, and "Delete" asks first.

5.7 Radio

5.7.1 Waterfall and Spectrum

"Waterfall" is the familiar scrolling picture of the band: frequency across, 0 to 3 kHz of audio as your receiver passes it, and time downward, newest at the top. Its toolbar has a "dB floor" slider (lower it to bring out weak signals; the colours span 60 dB above it), a colour scheme ("Heatmap", "Viridis", "Grayscale" or "Plasma"), and a "samples/row" slider that averages several measurements into each row, which scrolls slower and shows weak signals more steadily. Make the window taller for more history.

"Spectrum" shows the same measurements as a bar graph of the current moment, scaled to the loudest bar.

5.7.2 Beacons

"Beacons" holds up to sixteen canned text messages you send with one click: a net check-in, a standing CQ, a status line. Each slot has a "Label:", a "To:" and a "Body:". Wherever the body says %CALLSIGN%, your callsign is filled in; the "Preview:" line underneath shows the result. Press "SEND" on a row, or "Send Beacon" in the editor. "New slot" adds one and "Delete" removes the selected one.

These are separate from the beacons the station sends by itself (Section 18.3).

5.8 Station, data and system

5.8.1 Settings

"Settings" is a tree on the left and an editor on the right. Select a top-level group and the editor describes what lives in it. A box above the tree, "Filter settings...", shows only entries whose name, or whose group's name, contains what you type; type vox and you are one click from the keying settings. The groups and their entries are:

• Identity: "Callsign", "Grid square" and "Position (lat/lon)". The position editor has three parts. "Lat:", "Lon:" and "Alt m:" with "Set position" type a precise position in. "GPS (gpsd):" has a "Use gpsd" tick box with an address and port, and shows "FIX" or "no fix" while it is on. "Auto beacon:" sends your position by itself: "Off", or "Every 2 min", "Every 5 min", "Every 10 min" or "Every 30 min" (Section 28.2.2).
• Network: "Daemon host", "Daemon port" and "Change daemon password". Host and port use "Apply & reconnect".
• Audio: "Backend" (the sound system and the "Capture (RX):" and "Playback (TX):" devices, with "Refresh" and "Apply") and "Fake-OTA hub" (for rehearsals without a radio).
• Radio: "Rig control", "Relay policy", "Operator presence", "FM mode (FmLink)" and "Keying (VOX)". "Rig control" shows the rig's live status above its settings.
• Display: "UI scale", eight steps from 75% to 300%, saved with your window layout. The same page has the "Layout:" buttons for the phone and desktop layouts.
• Encryption: "Status" (what the station holds, with "Refresh"), "Group keys" (a key number, the key and a label, then "Add key"), "Peer certificates" (a callsign and its certificate, then "Install cert") and "Send my cert" (a "to:" box, left empty to send to everyone, and "Send cert"). See Chapter 26.
• Advanced: "Internet sources", with one button, "Open Internet Sources".

The Identity, Audio, "Rig control" and "Keying (VOX)" entries are covered step by step in Chapter 4. Three others need a word here.

"Relay policy" sets how much this station carries for others. The list offers listen_only, relay_off, announce_only and allow_bulk, with "Apply". The page itself says that allow_bulk is right for almost every station; what each level does is in Section 19.9.

"Operator presence" has one tick box, "Operator at the radio". Unticked, the station announces itself as unattended (Section 18.3.1).

"FM mode (FmLink)" belongs to FM operation, which has its own part of this book (Chapter 32).

The "Internet Sources" window that the Advanced page opens is the list of data providers behind "Tracked Data" (Section 27.2): ID, NAME, KIND, ORIGIN, REFRESH, ON and STATUS, with "List Sources", "Refresh Selected" and "Toggle Enabled". It is not on the Start menu.

5.8.2 Organization

"Organization" has two tabs, "Cluster" and "People". Most of what they do needs an administrator, and the window says so where it applies.

"Cluster" is for a station made of several daemons sharing one callsign (Chapter 31). It shows this member's name; a MEMBERS list with STATE, BAND, DIAL and LAST SEEN, and a "Query member" button that fetches a live member's status; PENDING JOIN REQUESTS with "Approve" and "Deny"; and a JOIN A CLUSTER form with "Host:", "Port:" and "Name:" and a "Join cluster" button. A member of a cluster sees "Leave cluster" instead, which asks first.

"People" is for operator accounts (Chapter 7). The first line says how this session signed in. Below it:

• PEOPLE: the list of accounts with NAME, ROLE, STATUS and POSITION, and the buttons "Add person", "Change role", "Reset password", "Disable" or "Enable", and "Remove", which asks first. Adding or editing opens a short form: "Name:", "Role:", "Position:", "Password:" and "Confirm:". At a station with no accounts yet there is only "Add person".
• WALK-UP ACCESS: one tick box, "Allow walk-up guest operating (station password)", with the consequence of switching it off written under it.
• STATION PASSWORD: a box for a new one and "Change".
• SESSIONS ON THIS MEMBER: who is signed in, with NAME, ROLE, FROM and IDLE. Select another seat and "Sign out" ends its session.

5.8.3 Notifications

"Notifications" is the station's event list, newest first, holding the last 64: WHEN, SEVERITY (info, notice, warning or critical), CODE and MESSAGE. It collects acknowledgments for your messages, mail arriving, area broadcasts for your position, relay outcomes, what a virtual net tells you, the state of a distress beacon, distress calls heard, and the blocking problems behind the red banner. Select a row to read the whole message. Where the code has a natural home, a "Go to" button takes you there: mail and message codes to "Messages", emergency codes to "Declare Emergency", relay codes to the "Relay" tab, other transmit codes to "TX Queue", cluster codes to "Organization", rig and PTT codes to Settings.

5.8.4 Tracked Data

"Tracked Data" is where you ask for data from the internet, such as weather observations, and keep it fresh (Section 27.3). Tabs across the top sort the rows by kind, starting with "All". Each row shows LABEL, PARAMS, MODE, VIA, AGE, STATUS and whether it is ON. Four buttons act on the list:

• "+ Add" opens "Track new data": pick a "Source:", give its parameters and an optional label, choose "Tracked (auto-refresh)" or "One-off (fetch once)", and choose "HTTP (our internet)" or "OTA (ask a peer)" to have a station with internet fetch it for you over the air (Section 27.4). "Track" adds the row.
• "Refresh now" asks again for the selected row.
• "Toggle Enabled" and "Remove".

The pane below shows when the selected row was last fetched, where from, and the data itself. The easier route for weather is the map: right-click a spot and choose "Track weather here". Weather with a position also appears on the map's weather layer.

5.8.5 Status & Diagnostics

This hub has four tabs.

"Status" is the at-a-glance panel, in four groups. CONNECTION: the daemon address, the state, the session number. STATION: the callsign and grid the station transmits, who is signed in, and the role, coloured by authority. RADIO: the station's current state and when it last changed, the "Mode" (with "VOX" added for a VOX-keyed radio), the relay policy, the outbox with how many messages are pending and how many are on the air, the net control heard on the frequency, and the virtual net with what you are in it. CLUSTER: this member's name and how many members are reachable, or "Standalone station". The panel is read-only.

"Diagnostics" is the daemon's own counters, with a "Refresh" button and the age of the figures: frames sent and received, acknowledgments, relay requests and offers, emergency frames decoded, the last SNR, the number of stations heard, and under "NAV (busy time remaining)" how long the station believes each announce channel and the bulk region stay occupied, which this book calls a defer (Section 17.2). Received-frame counts that go up show the station is decoding mLink signals, even before any station has shown up in "Heard".

"TX Queue" lists what is waiting for the transmitter. When anything is waiting, "Stop all waiting..." offers to stop them all; the question it asks gives the count and reminds you that the message on the air and emergency traffic are not affected. Select an item to rewrite its destination or text ("Apply edit") or remove it ("Drop") before it goes out.

"Relay" has two lists: RELAY CANDIDATES, the stations heard recently with a usable link, and LEARNED ROUTES, the relay paths that have worked lately. It is where a relay notification's "Go to" takes you (Chapter 19).

5.8.6 Daemon Log

"Daemon Log" shows the daemon's recent log lines: TIME, LVL (the level) and MESSAGE. The client keeps the last two hundred. It follows new lines as they arrive, but only while you are at the bottom, so you can scroll back without it jumping away. The filter boxes above the columns are the quickest way to find something; filter LVL on warn to see only warnings. What the daemon logs is in Chapter 29.

5.8.7 Help

"Help" is a tree of short topics in the same groups as the Start menu, plus an introduction and a "Troubleshooting" page. The "?" button on any window's title bar opens Help at that window's topic.

5.9 Habits worth forming

• Glance at the tray, not the windows. A green dot, an idle state and a grey triangle mean the station is fine.
• Read the size colour before you send.
• Use "Abort", not the radio's power switch. Abort keeps your message as a draft.

5.10 What to remember

• The Start menu groups every applet under six headings; "Messages", "Stations" and "Status & Diagnostics" are hubs with tabs.
• The tray shows the station's health at a glance, the red banner means the station cannot work until you fix something, and clicking either takes you where you need to go.
• Escape removes one layer per press, and with nothing else open it closes the front window.
• On a phone-sized screen the same applets appear one at a time, with a Back button and a Home list in place of windows and the taskbar.
• The distress button is always live, and every field above it is optional.

6.1 Where to look

Everything you ask the station to send is written to its outbox before anything reaches the air. You see the outbox in "Messages" (Section 5.5.1): the "Sent" folder lists every message that has left Drafts, chat lines included, and its STATE and ERROR columns are what this chapter explains. The ERROR column holds the station's note on the row, which is very often not an error at all. "Status & Diagnostics" counts the rows that are pending and on the air, and its "TX Queue" tab lists what is waiting for the transmitter (Section 5.8.5).

6.2 The states

There are nine states. In everyday running you will see pending, airing and sent on almost every row, deferred and deposited now and then, and failed rarely.

6.3 Deferred or failed?

Deferred means the station is still working on it. It keeps the message and tries again without being asked, at growing intervals, once it has heard some station since the last try (Section 20.6.1). A message becomes deferred when:

• the station asked for a relay and nobody offered;
• a relay took the message and has not yet reported the outcome;
• a relay reported that it could not deliver, and the message still has time left;
• a mail for everyone to pick up went out and no gateway took it;
• a mail is on its way to the mailserver over the internet.

Failed means the station has stopped, and tells you why. The reasons fall into four groups:

• This station is not allowed to transmit. Its relay policy is set to listen only (Section 19.9). Change the policy if that was not intended.
• The message cannot be sent in this form. It is too big, or too big for the link to that station as it stands, or a message to everyone that is longer than a broadcast may be (Section 15.5.5). Shorten it, address it to one station, or send it as mail.
• The station could not put it on the air. Preparing or starting the transmission went wrong. This is rare; look at the Daemon Log.
• Every way out is used up. A relay reported failure and the message had no time left, or a deposit at the mailserver failed and there was no way to send the mail by radio instead.

6.4 Reading the note

The notes are in the station's own terse words. "CMS" means the mailserver and "B" means bytes. The ones you are likely to meet:

A note not listed here is the station reporting something unusual; the Daemon Log has the detail.

6.5 Why the station waits before keying

A row that sits at pending for a few seconds, or occasionally much longer, is waiting for one of these reasons:

• Somebody announced a transfer. Your station heard another station's opener and is staying off that piece of the passband until the announced time has passed (Section 17.2). A long transfer between two other stations can hold a large send of yours for most of a minute.
• The air is busy right now. The receiver is in the middle of a frame, or the audio level says a signal has just started (Section 17.5).
• The channel has just cleared. Every station that was waiting picks a random moment in the next few seconds, so they do not all key at once (Section 17.7).
• Your own large sends are being spaced out. After signs of collisions, the station leaves gaps between the big transfers it starts (Section 17.7.2). Short messages are not held by this.
• Something more urgent goes first. Replies the station owes go ahead of new traffic (Section 17.4), and while your own distress call is active, routine traffic waits (Section 23.2).

You can watch the first reason directly. "Status & Diagnostics", "Diagnostics" shows, under "NAV (busy time remaining)", how long the station believes each announce channel and the bulk region stay occupied.

6.6 What you can do to a row

• "Abort", in Sent or on the taskbar, is offered while a row is pending or airing. It calls the transmission off and moves the message to Drafts (Section 16.9).
• "Edit", in Sent, reopens the message in the composer; sending it replaces the old row. This is how you re-send a failed message.
• "Delete" removes a row from the list. A row that is airing must be aborted first.
• In Drafts, "Send" transmits the draft exactly as saved, "Edit" reopens it and "Delete" removes it. The last column, "WHY IT IS HERE", says how each row came to be a draft: "Saved by you", "You stopped it", "Cut by your emergency broadcast", "Program stopped while sending", "Not sent before a restart", "Mailserver deposit interrupted" or "Send queue was full".
• In "TX Queue", a message still waiting for the transmitter can be changed ("Apply edit") or removed ("Drop"). "Stop all waiting..." removes every waiting message at once, after asking: they are marked failed and can be sent again from the Sent list. The message being transmitted at that moment and emergency traffic are not touched.

There is no "retry now" button; a deferred row retries by itself.

One more thing puts a message in Drafts: sending a distress call while that message is on the air. The message stops, and its row carries the note "interrupted by emergency broadcast" (Section 23.2).

6.7 After a restart

The outbox is kept on disk, so nothing is lost when the daemon stops. Rows that were pending or airing, and mail whose deposit at the mailserver was under way, come back as drafts: look in "Drafts" after any restart and send what you still want sent. Deferred rows stay deferred and carry on where they were. Section 20.7 has the reasoning.

6.8 What to remember

• Pending, airing and sent are the normal path; deposited means the mailserver has your mail.
• Deferred means the station is still trying and will try again by itself. Leave it alone and do not send a second copy.
• Failed means the station has stopped. The note says why; fix the cause, then "Edit" and send again.
• After a restart, look in Drafts: whatever was waiting or on the air is there, and it is not sent again until you say so.

7.1 Solo or organisation

There is no setup question asking what kind of station you run. The station works it out from what exists, and calls the answer its posture:

• Solo: no enabled accounts. The station password opens the station and gives full control.
• Organisation: at least one enabled account. People sign in by name, and what they may do depends on their role.

Solo is simply an organisation with no accounts yet, so there is nothing to convert: create the first account and the station is an organisation. It then stays one, because the station always keeps at least one administrator account. The screens are the sign-in window (Section 5.2) and the "People" tab of "Organization" (Section 5.8.2).

7.1.1 The station password

A new station's password is mLink. Change it before the daemon can be reached from anywhere but its own computer: "Organization", "People", STATION PASSWORD, or Settings, "Network", "Change daemon password". It can be up to 63 characters and cannot be empty. Changing it does not sign anyone out; it applies to the next sign-in.

The daemon also understands a separate technician password and administrator password for a station without accounts, but the client has no control for setting them. A station that wants to separate duties creates accounts.

7.2 Operator accounts

An operator account is a named person: a name, a password, a role, an enabled switch and an optional tactical position of up to 31 characters, such as OPS CHIEF. Names are 1 to 24 characters of lower-case letters, digits, underscore and hyphen, so that one person has exactly one spelling wherever the name appears. A station holds up to 64 accounts.

An administrator manages accounts in the People tab. Two guards keep a station from locking itself out: the first account created must be an administrator, and the last enabled administrator cannot be removed, disabled or given a lower role until another administrator exists.

Accounts belong to the station, not to one computer. At a station made of several daemons, an account created on one member works on all of them (Chapter 31).

7.3 The sign-in rule

You always type a name and a password. What happens next leaves no room for doubt:

1. If the name is an account's name, the password must be that account's password. Capital letters in the name are ignored. There is no falling back to the station password: an account name belongs to its owner, and nobody borrows a colleague's identity by knowing the station password.
2. If the name is not an account, the station password applies. At a solo station it gives full control. At an organisation it gives a walk-up guest session with the lowest role, operator, if the administrator allows guests; otherwise the sign-in is refused and the station says it requires an account.

Guests are allowed until an administrator unticks "Allow walk-up guest operating (station password)" in the People tab. With guests off, someone without an account cannot use the station for anything, a distress call included (Section 23.1.1). Think about that before switching it off at a station that might be the only radio in the room.

A wrong password and a disabled account get the same refusal, and take the same time to get it, so the answer does not reveal which accounts exist or are suspended. The real reason is in the station's own log.

7.3.1 How passwords are kept

The station never stores a password. It stores a one-way fingerprint made with PBKDF2: the password is mixed with 16 random bytes, different for every password, and run through a cryptographic hash 100,000 times, leaving 32 bytes that cannot be turned back into the password. Checking a sign-in repeats the work on what you typed and compares the two results. The station password is kept the same way as account passwords. The only place a password is ever written down as typed is the client's own settings file, and only if you tick "Save password (plaintext)" in the sign-in window.

The repetition is deliberate. One check costs the station a fraction of a second, which you never notice when signing in, but it makes guessing passwords from a stolen database very slow. So that a flood of attempts cannot tie up the daemon, each network address gets five sign-in attempts in any ten seconds; further ones are told to wait, whether or not their password was right.

No password of any kind is ever sent by radio (Chapter 26). Between a client and the daemon, however, the sign-in crosses your network unencrypted, which is one more reason to keep the daemon on a network you trust.

7.4 Changes take effect at once

Whenever an account changes, every signed-in session that belongs to an account is checked again on its next command:

• A changed role applies from that command on, without signing out.
• A removed or disabled account's session is ended there, and the client returns to the sign-in window with the station's explanation.

The same holds across a cluster: an account disabled on one member stops working on the others as soon as the change reaches them.

Sessions that signed in with the station password are not tied to an account, so account changes do not touch them. Those from before the first account was created keep the role they had; the People tab points them out and offers "Sign out others". Switching guest access off stops new guest sign-ins at once; to be sure a guest who is already signed in is gone, select that session under SESSIONS ON THIS MEMBER and press "Sign out". An administrator can end any session that way.

A session that sends nothing for 30 minutes is closed by the station. An open client talks to the daemon every few seconds, so this only clears away seats whose client was closed or lost its network. A daemon holds up to 32 sessions at a time.

7.5 Roles: who may do what

mLink has three roles. Each may do everything the one below it may do.

Three principles decide which role a command needs.

• Roles guard changes, not looking. Reading the station's configuration, rig status, sound devices, cluster status, encryption status or mail-server status is open to operators; changing them is not. One thing an operator cannot even read: the list of accounts.
• Your own traffic is yours. Sending, editing, dropping or aborting queued messages is operator work, even though it keys the radio.
• Emergency is never above operator. Every emergency action is open to the lowest role.

Refusals are explicit. A command above your role comes back with the reason, the role it needs and the role you have, and the client shows it; nothing is silently ignored or half done. An operator who tries to change the mail server's address meets exactly this, because setting up the mail server link is technician work; pressing "Get Mail" is not, and works for every role.

7.6 Several operators at one station

Many clients can be connected to one daemon at the same time: desktop clients on the shack computers, and browsers on anyone's laptop. Each connection is a seat, named by the account or, for a guest, by the name typed at sign-in. All seats see the same station: the same heard list, the same inbox, the same Sent list. The radio behaves exactly as it would with one operator; what follows happens between clients and daemon, never on the air.

7.6.1 Who wrote this mail

Mail from a shared station can say which person wrote it and in what capacity. The client attaches the name you signed in with and whatever you typed in the "Position:" field of the sign-in window, each up to 31 characters, and the receiving operator sees them as an "Operator:" line when reading the mail. This is separate from the callsign: the station is who sent it on the air, the author is who wrote it. The position kept with an account in the People tab is a record for the administrator; it is the sign-in window's field that travels with mail. Chapter 24 covers the mail format.

7.6.2 Not answering the same message twice

When one seat starts a reply to a received mail, every other seat's inbox shows a pencil in front of that mail. Anyone else who presses "Reply" on it is told who is already answering and asked "Reply as well?". The mark clears when the reply is sent or abandoned, and when that seat signs out or its session ends. A daemon tracks up to 16 replies in progress, and in a cluster each member keeps its own.

7.6.3 Talking between seats

"Chat" has a mode called "This station": a conversation among the station's own operators (Section 5.5.4). It is never transmitted and never written to disk. The daemon remembers the last 100 lines so that a seat connecting later can catch up, and forgets them when it stops. In a cluster it is one conversation for the whole station: a line typed in the shack reaches the operator at another member (Chapter 31).

7.7 What to remember

• No accounts means solo: one station password, full control, no setup. Create one account and the station signs people in by name.
• An account name always needs its own password. Any other name uses the station password and, at an organisation, gets a guest session with the operator role, unless guests are switched off.
• Administrator, technician and operator guard changes, not reading. Account changes take effect on the person's next command.
• Emergency actions need only the lowest role and survive the loss of an account in mid-session, but nobody can send anything without first signing in.
• Seats share one station. Mail can carry its author's name and position, a pencil marks a mail someone is already answering, and "This station" chat never goes on the air.

8.1 Band, channel, region

Three words carry the whole geography of mLink, and they nest like boxes inside boxes.

A band is an amateur frequency range: 40 metres, 20 metres, 2 metres. It is the thing on your licence and the thing the band plan chops up.

A channel is one mLink operating frequency inside a band: the dial frequency, and sideband, that you and everyone you want to reach have set.

A region is a strip of the audio that comes out of (and goes into) your rig on that channel. There are three: emergency, announce and bulk, and each belongs to exactly one kind of modem.

Band contains channel, channel contains regions. They are levels, not synonyms. In this book "channel" never means a region, with one deliberate exception: the announce region is itself split into narrow announce channels, and that is simply what they are called.

8.2 The map

Every frequency in this chapter is an audio frequency: "150 Hz" means 150 Hz above your dial frequency on the air (Chapter 3).

The lines on the map come in two kinds. The allotment boundaries are round numbers that say which region owns which strip: emergency from 125 to 175 Hz, announce from 200 to 1,500 Hz, bulk from 1,500 to 3,000 Hz. The energy edges are where each modem's signal actually starts and stops, and they sit well inside the allotments. The modems themselves are in Chapter 10, Chapter 11 and Chapter 12; every figure is collected in Appendix A.

8.3 The emergency region: the bottom 50 hertz

The emergency region is the narrowest strip, centred on 150 Hz. One modem sends one of eight tones at a time, 6.25 Hz apart, from 128.125 up to 171.875 Hz, and starts each frame with a short sweep from 125 to 175 Hz. Its filter passes nothing below 115 or above 185 Hz.

That tiny footprint is the point. The emergency modem gets through far below the noise by going very slowly in a very narrow strip, so it needs little room, and it gets that room at the edge of the passband, where it takes nothing from the wide middle the data modems want. Its lowest tone still sits well clear of 67 Hz, the bottom of the CTCSS (continuous tone-coded squelch system) tones.

It is also the only region a station never waits for: the rules about holding off while others are busy (Chapter 17) do not apply to a distress call.

8.4 The announce region: three channels side by side

The announce region holds three identical, independent announce channels, numbered 0, 1 and 2. Each carries the same QPSK modem at its own centre frequency: 400, 800 and 1,200 Hz.

Each channel's signal is about 270 Hz wide, so the three occupy 265–535, 665–935 and 1,065–1,335 Hz. Each is its own resource: three stations can be sending on the three channels at once, and a listener hears all three.

Why three channels and not one wider, faster one? Announce traffic is many short, independent frames from many stations, and three conversations at once beat queuing for one fast channel when most transmissions last a second or two. How a station chooses among the three is in Chapter 17.

8.5 The bulk region: the wide top half

The bulk region carries the high-throughput modem: OFDM (orthogonal frequency-division multiplexing), 28 closely spaced carriers sent at once. The carriers run from 1,617 to 2,883 Hz, centred on 2,250 Hz, and the modem's filter stops its data hard at 1,594 and 2,906 Hz. It gets the widest strip because it moves the most bytes: more bandwidth is more carriers, and more carriers is more bits per second.

8.5.1 The bulk-control channel

One more tenant lives in the bulk region. At its centre, 2,250 Hz, there is a fourth QPSK channel, the same modem as the three announce channels. This is the bulk-control channel, and it carries only the short control frames of a bulk exchange: the opener (the sender's PRESENCE and the frame that says "I'm about to send a bulk burst"), the replies that say what arrived, and the openers of any repair or follow-on burst. Short messages and other routine announce traffic never use it.

How can a QPSK channel sit in the middle of the OFDM modem's strip? Because the two take turns. A station keys the bulk-control channel only while the bulk region is quiet, under the same rule that decides when it may start a bulk burst; the burst it opens follows its control frames instead of overlapping them; and the replies go out once the burst has ended. At any moment the bulk region carries either a bulk burst or bulk-control frames, never both.

The pay-off: the frames managing a big transfer never compete with the routine chatter in the announce region.

8.6 Guard bands: measured from energy, not from lines

A guard band is empty spectrum left between two signals so that one's skirts do not spill into the other's receiver. The honest way to measure one is from where the energy really stops.

Take the gap between the emergency region and the lowest announce channel. On the allotment map it is a 25 Hz sliver, from 175 to 200 Hz. But nothing transmits at either frequency. The highest emergency tone is at 171.875 Hz and the body of the lowest announce signal begins at about 265 Hz, so the real separation is about 93 Hz.

The same reading applies everywhere:

• Between announce channels: about 130 Hz (535 to 665 Hz, and 935 to 1,065 Hz).
• Between the announce and bulk regions: about 260 Hz, from the top announce signal near 1,335 Hz to the bulk filter at 1,594 Hz. The 1,500 Hz allotment line sits inside that gap.
• At the top: 94 Hz, from the bulk filter at 2,906 Hz to 3,000 Hz.

8.7 One audio stream, many signals

The audio coming out of your receiver is one stream of numbers. If one station is sending an announce frame on 800 Hz, another is halfway through a bulk burst, and a third is sending a distress call, your audio is simply those three signals added together, plus noise. There is no switchboard and no time slot; the rigs and the air do the adding.

Taking the sum apart is equally simple: every detector and demodulator in the receiver is handed the same audio, and each looks only at its own strip through its own filter (Chapter 13). Because the strips do not overlap, the other signals are, to it, silence.

8.8 Keeping each signal in its own strip

The sum only works if nobody spills. A signal that leaks outside its strip, even faintly, lands inside somebody else's detector. So there is one rule, applied everywhere: every modem filters its own output before it goes to the radio. The filter is part of the modem, not an optional stage somebody might forget to add.

• The emergency modem passes its finished signal through a sharp filter from 115 to 185 Hz, which leaves the tones untouched and removes the faint sidelobes any keyed tone produces.
• Each announce channel is already smoothly shaped by its pulse filter, but that alone lets through skirts only 10 to 15 dB down. So the modem also applies a sharp filter 189 Hz either side of the channel's centre (the 270 Hz signal plus a 20% margin each side). Because it trims an already smooth spectrum, it does not ring.
• The bulk modem filters the data symbols of each frame to 1,594–2,906 Hz, with a smooth 20 Hz roll-off at each edge.

The receiving side's own protection against a very loud neighbour's leftovers is in Section 13.5.

8.8.1 All modems at the same level

Each modem produces its signal at the same average power. No region is built to be louder than another; whatever your rig's drive and ALC (automatic level control) do to one, they do to all.

8.9 Soft edges: the keying ramp

Switching a signal on or off instantly makes a click, and a click splashes energy across the whole passband. On the air that is the familiar key click. Inside mLink it is worse: to a sensitive detector in another region, a loud station's click looks a little like the start of a frame.

So every announce and bulk transmission gets a soft start and a soft finish. The first and last 20 ms (240 samples) of the assembled transmission are faded along a raised-cosine curve, the smooth S-shape that goes from nothing to full without a corner. The 20 ms is shorter than the natural run-in and run-out of an announce frame's pulse shaping, so on an announce frame the fade touches only the part of the signal that is already rising or falling, never a symbol that carries data.

The emergency modem's sweep carries its own fade-in and fade-out of about 21 ms.

8.9.1 Where the VOX leader tone sits

A station whose rig is keyed by VOX puts a plain tone, the VOX leader, in front of every transmission to wake the rig before the first frame; why it is needed, and why it lasts 800 ms unless the operator sets another length, is in Chapter 4. The tone is at 1,400 Hz, in the empty gap between the top announce channel and the bottom of the bulk region. A steady tone there matches no detector's pattern. It fades in and out over 10 ms and is sent at the same level as the frames behind it.

The leader goes in front of emergency transmissions too, since a one-frame distress call has no later frame to fall back on if VOX swallows the first. A station that keys by a CAT command or a PTT (push-to-talk) line sends no leader at all.

8.10 What to remember

• Band contains channel, channel contains regions: emergency (125–175 Hz), announce (200–1,500 Hz) and bulk (1,500–3,000 Hz).
• The announce region holds three independent announce channels at 400, 800 and 1,200 Hz; the bulk region holds the OFDM modem plus the bulk-control channel at 2,250 Hz, which takes turns with it.
• Guard bands are measured from where energy really stops, not from the allotment lines.
• Every modem filters its own output, all send at the same average level, and announce and bulk transmissions start and stop with a 20 ms ramp.
• mLink's signals occupy 115 to 2,906 Hz. The VOX leader tone, when a station sends one, sits at 1,400 Hz.

9.1 Why error correction

A voice operator who misses a word says "say again". A data station could do the same for every damaged frame, and on a noisy HF path it would spend most of its time asking.

Forward error correction (FEC) turns that around. The sender adds redundancy up front: extra bits computed from the data by fixed rules. The receiver checks the rules, and when some of them fail, it works out which bits must be wrong and flips them back. No second transmission is needed. The price is air time: every redundant bit is a bit of payload that was not sent. The code rate says how the air time is split. At rate 1/2, half the bits are data and half are redundancy; at rate 5/6, five out of six are data.

FEC does not replace asking again; it makes asking rare. Each frame fixes its own small errors, so the only frames left to repair (Chapter 16) are the ones that were truly overwhelmed.

9.2 Parity: the whole idea in one bit

Every code in this chapter is built from one operation, XOR (exclusive or). XOR of two bits is 1 if they differ and 0 if they match. XOR a string of bits together and the answer tells you whether it contains an odd or even number of 1s.

A parity bit is one extra bit chosen so that a group of bits, parity included, has an even number of 1s. If one bit in the group flips on the way, the count turns odd and the receiver knows something is wrong. It does not know which bit, though.

To find the bit, use several overlapping groups. Lay nine data bits out in a 3 × 3 grid and add a parity bit for every row and every column. When one bit flips, exactly one row and one column go odd, and the bad bit sits where they cross. Flip it back and the data is repaired.

That is the whole trick behind real error-correcting codes: many overlapping parity checks, arranged so that any likely pattern of damage leaves a distinctive pattern of failed checks. The codes mLink uses are far more efficient than the grid, but they rest on the same idea.

9.3 Reed-Solomon: the code for short frames

9.3.1 Bytes instead of bits

A Reed-Solomon code (RS) works on whole bytes rather than single bits. The sender treats the data bytes as the coefficients of a polynomial and appends extra bytes computed from it, using arithmetic in which every byte value from 0 to 255 is a number and every sum and product stays inside that range. The receiver can then solve for which bytes are wrong and what they should have been. The same codes protect CDs, QR codes and deep-space probes.

The useful property is simple to state: for every two parity bytes added, the code can correct one damaged byte, anywhere in the block, whether one bit of that byte is wrong or all eight.

9.3.2 RS(23,11) in mLink

mLink uses one Reed-Solomon code, written RS(23,11): 11 data bytes followed by 12 parity bytes, 23 bytes on the air. Twelve parity bytes let it correct up to six damaged bytes out of the 23, in any positions, without being told which ones they are. (Technically it is the standard 255-byte Reed-Solomon code with the unused positions filled with zeros that are never sent; the receiver puts them back before decoding.) Each 23-byte block is one codeword: data and redundancy together.

Every short frame mLink sends is exactly 11 bytes, and each one travels as a single RS(23,11) codeword. That covers every frame of the announce modem (Chapter 11), which carries the network's bookkeeping and its short messages, and every frame of the emergency modem (Chapter 10), which backs the code up by sending a distress message several times (Section 10.8). The two modems differ only in how the 184 coded bits reach the air.

Those 184 bits go out in the order they sit in the codeword: byte 0 first, most significant bit of each byte first, parity bytes last.

9.3.3 Hard decisions, and knowing when it failed

The Reed-Solomon decoder in mLink works on hard decisions: each received bit is rounded to a plain 0 or 1 before decoding, and the code's six-byte budget does the rest. It has a valuable second talent. When a frame has more damage than the code can fix, the decoder almost always notices that the damage cannot be explained and reports failure instead of inventing an answer. mLink discards such a frame; it never reaches the protocol. For a frame that carries a callsign or names a message, a missing frame is far better than a wrong one.

9.4 LDPC: the code for bulk frames

The bulk modem (Chapter 12) sends large frames close to the noise, and for that mLink uses a low-density parity-check code (LDPC). LDPC codes were invented by Robert Gallager around 1960 and sat unused for decades because computers could not decode them in reasonable time. They now protect Wi-Fi, 5G and satellite TV, because given a long enough codeword they correct errors almost as well as theory allows.

Every bulk frame is exactly one LDPC codeword of 9,720 bits, whatever its code rate. A higher rate does not make the frame longer or shorter; it only changes how many of the 9,720 bits are data and how many are parity. So every bulk frame takes the same time on the air, and a receiver always knows how much to collect.

9.4.1 The rulebook: the parity-check matrix

An LDPC code is nothing more than a long list of parity checks like the rows and columns of the grid example. Each check names a handful of bits in the codeword and says "these must XOR to zero" (contain an even number of 1s). Written out as a table, with one row per check and one column per bit and a 1 wherever a check includes a bit, this list is the parity-check matrix, usually called H.

"Low density" means that table is almost entirely zeros. Each check touches only 6, 12 or 18 of the 9,720 bits, and each bit takes part in exactly three checks. That sparseness is what makes decoding fast.

The three matrices are fixed tables built into every mLink station, generated once from fixed random seeds. Two stations can only talk bulk if they hold the identical tables, so they are part of the protocol in the same way the carrier frequencies are. Which of the three rates a given frame uses is decided by the frame's position in its transmission, up to a limit the sender announces beforehand; Chapter 15 explains that ladder.

9.4.2 The Tanner graph

The same rulebook is easier to think about as a picture. Put every bit on the bottom row as a circle and every check on the top row as a square, and connect each check to the bits it covers. This is a Tanner graph. Decoding is a conversation along its lines.

9.4.3 Soft bits: how sure is each bit?

The bulk modem does not hand the decoder plain 0s and 1s. For every bit it hands over a number that says which way the bit leans and how strongly: a log-likelihood ratio (LLR), a soft bit. In mLink it is a whole number from −127 to +127. A large positive value means "almost certainly 0", a large negative one "almost certainly 1", and anything near zero means "no idea". A bit that came in on a strong, clean carrier gets a big number; one that came in on a carrier sitting in a fade gets a small one (Section 12.8.4 shows how the modem sets them).

Those confidence values are worth decibels. A hard-decision decoder has to treat every bit as equally trustworthy. A soft-decision decoder knows that the doubtful bits are the likely culprits when a check fails, and fixes those first.

9.4.4 Belief propagation: decoding as a conversation

The LDPC decoder uses belief propagation, also called message passing. A useful picture is a room full of people (the bits), each with a hunch about their own value, and a number of committees (the checks), each made up of a few of those people and bound by one rule: their answers must add up to even.

1. Everyone starts with the modem's hunch. Each bit sends its soft value to every check it belongs to.
2. Each check replies to each of its members. A check looks at what its other members said and tells this one: "given what the rest of us believe, for our sum to be even you should be a 0 (or a 1), and I am this sure." A check is only as sure as its least sure other member.
3. Each bit updates its belief. It adds its original hunch to what all its checks told it. A bit that the modem called a weak 1, but whose three checks all say firmly "you must be 0", now believes 0.
4. Test. Take every bit's current belief as a hard 0 or 1 and run every check. If they all pass, the codeword is found: stop.
5. Otherwise go round again. Each bit tells each check its updated belief, leaving out what that same check told it last time (so no committee just hears its own opinion echoed back), and the conversation continues.

mLink's decoder uses the min-sum form of this algorithm: in step 2 a check's reply takes the product of its other members' signs and the smallest of their sizes. It is a well-known shortcut, slightly weaker than the exact rule and far cheaper to compute. The decoder allows at most 15 rounds. If every check passes before then it stops early; if not, it gives up and reports that the frame did not decode.

9.4.5 Knowing when a decode is wrong

"All checks pass" nearly always means the right codeword, but not quite always. Very occasionally, a badly damaged frame lands on a different valid codeword, one that satisfies every check but holds different data. mLink guards against that with the filler described in Section 9.5: every bulk frame ends with a stretch of known bits, and a decode that lands on the wrong codeword scrambles them. A bulk frame is accepted only if the decoder converged and the filler came out exactly right. Anything else is treated as a lost frame, which the receiver can ask for again by number (Chapter 16), instead of as garbage that would only show up when the whole message failed its check.

9.4.6 Encoding straight from the rulebook

The sender's job is the reverse: given the information bits, find parity bits that make every check pass. mLink's codes are systematic, which means the information bits appear in the codeword unchanged, behind the parity bits. The textbook way to compute the parity needs a second table derived from H, and for a 9,720-bit code that table is huge. mLink instead encodes directly from the sparse H, with a method published by Richardson and Urbanke: it rearranges H once so that most of it forms a staircase in which each check introduces exactly one parity bit not yet fixed, then works along the staircase, each new parity bit being simply the XOR of bits already known. A small leftover block is solved by ordinary elimination. The sender needs no table the decoder does not already have.

9.5 Filling the codeword: the pi pattern

A codeword has a fixed number of information bits (4,860 at rate 1/2), but the last frame of a message, or the only frame of a short one, rarely has exactly that much to carry. The rest of the space has to be filled with something, and the receiver has to be able to tell where the real data stops. mLink solves both with one pattern. After the frame's payload bytes, the sender writes:

1. a two-byte marker, 00 00;
2. then a fixed 200-byte pattern that begins with the digits of pi (03 14 15 92 65 35 89 79 …), repeated as often as needed, up to the end of the information bits.

The receiver, after decoding, searches from the start of the information bits for a 00 00 whose every following bit matches the pi pattern exactly. The first such position is the end of the payload. The length of each frame's data is therefore never sent anywhere: it is written into the frame by the filler itself. A payload that happens to contain 00 00 causes no confusion, because every bit after that point, all the way to the end of the information bits, would also have to match the pattern.

To make sure there is always room for the marker, the sender never fills a frame completely: it holds back four bytes of every frame's capacity for the marker and at least two bytes of pi. That is why a rate-1/2 frame carries 603 payload bytes rather than 607 (4,860 bits is 607 whole bytes).

The same filler is the tripwire that catches a decode that landed on the wrong codeword. A lightly filled frame ends in thousands of known bits; even a frame filled to capacity ends in about 35 of them, and a wrong decode is very unlikely to reproduce them by chance.

9.6 The bulk path, end to end

An interleaver reorders bits before transmission so that errors which arrive in a clump on the air are spread out by the time they reach the decoder. LDPC works bit by bit, and a clump concentrated on a few checks can overwhelm them, so a bulk codeword is reordered twice on its way out. Straight after encoding, its 9,720 bits are written into a grid of 5 rows by 1,944 columns, row by row, and read out column by column, so bits that leave next to each other sat 1,944 places apart in the codeword. The modem then spreads the result across the frame's symbols with a second, larger grid of its own (Section 12.5). The receiver undoes both, in reverse order, before the LDPC decoder sees a single soft bit.

9.7 The slope and the cliff

Plot the share of frames a code decodes against signal-to-noise ratio (all figures here are SNR@3k) and the two codes in this chapter trace very different curves.

9.7.1 Reed-Solomon fades out along a slope

The short frames fail gradually. Measured on the announce modem (Section 11.9), practically every frame arrives at −5 dB, about 95 % at −6, two in three at −7, one in four at −8, and hardly any at −9: four decibels from everything to nothing.

The reason is the size of the frame. A Reed-Solomon frame survives if no more than six of its 23 bytes are damaged, and with so few bytes, luck matters: at a given signal level one frame collects four bad bytes and the next collects eight. As the signal weakens, the unlucky frames become steadily more common. Nothing snaps.

9.7.2 LDPC falls off a cliff

The bulk frames behave differently. This steep curve is called a waterfall, and for a long LDPC code it is nearly a cliff. A rate-1/2 bulk frame, perfectly located in steady noise, decodes almost every time from about +3 dB; two decibels below that, none do. The higher rates carry less parity and need a little more signal still.

Belief propagation is a chain reaction. Above the cliff, the confident bits outnumber the doubtful ones enough that every round of the conversation corrects more than it confuses, and the whole codeword snaps into place. Below it, the doubtful bits win the argument, the corrections never catch on, and after 15 rounds the checks are still failing. There is little middle ground: the decoder either gets the whole frame or does not get it at all. And where 23 bytes leave plenty of room for luck, 9,720 bits average it away; longer codewords make the cliff steeper.

9.7.3 A coin flip per frame, and why +6

On the narrow edge of the cliff, whether a given frame decodes depends on the exact noise it happened to meet. Each frame is effectively a coin flip, weighted by the SNR, and a transmission of many frames is many flips in a row. If each frame succeeds 60 % of the time, ten frames arriving without a single loss is about a one-in-165 event. The same link two decibels stronger delivers every frame.

So a station does not aim for the edge. It trusts bulk only on a link it has measured at +6 dB or better, three decibels clear of the rate-1/2 cliff, so that frames land on the flat top of the curve rather than its lip. Below that level, a message goes by the announce modem's short frames or through a relay with a better path (Chapter 15). And a lost frame is not a lost message: the receiver names exactly which frames are missing and only those are sent again (Chapter 16).

9.8 What to remember

• Forward error correction adds computed redundancy so the receiver can fix errors itself; the code rate is the share of each codeword that is data.
• Every short frame is one Reed-Solomon RS(23,11) codeword: 11 data bytes, 12 parity bytes, up to 6 damaged bytes repaired, sent in order, and a frame beyond repair is almost always recognized and discarded.
• Every bulk frame is one 9,720-bit LDPC codeword at rate 1/2, 3/4 or 5/6, decoded from soft bits by min-sum belief propagation in at most 15 rounds.
• Each bulk frame's payload is followed by 00 00 and a fixed pattern starting with the digits of pi, which marks its length and catches wrong decodes.
• Reed-Solomon frames fade out over about four decibels; LDPC frames fall off a cliff about two decibels wide. Rate 1/2 is reliable from about +3 dB, and stations trust bulk from +6.

10.1 One job, done at any cost

The emergency modem exists for distress calls and nothing else. Its whole design follows from one requirement: when someone is in trouble, the call must get through on the worst path, with the weakest signal, from the most improvised station. Speed does not matter. Being heard does.

The modem is called NB8FSK: narrow-band 8-tone frequency-shift keying. It lives in the emergency region, the 50 Hz strip from 125 to 175 Hz at the bottom of the passband (Section 8.3). What the distress service does with it (who sends, how often, who answers) is the subject of Chapter 23. This chapter is only about the signal.

10.2 Eight tones, one at a time

Frequency-shift keying (FSK) is the oldest trick in data radio: pick a set of tones, and send information by choosing which tone to play. RTTY does it with two tones. NB8FSK does it with eight.

With eight tones to choose from, each tone choice carries three bits, because there are exactly eight different three-bit patterns (000 through 111). The tone number is simply those three bits read as a binary number, with the first bit sent as the ones place. Tone 0 means the three bits were all zero; tone 6, binary 110, means the bits sent were 0, then 1, then 1.

The eight tones are spaced 6.25 Hz apart, centred on 150 Hz:

10.2.1 Six and a quarter tones per second

Each tone is held for 160 ms, so the modem sends 6.25 tones per second: 6.25 baud. At three bits per tone that is 18.75 bits per second on the air, before any error correction.

The tone spacing and the baud rate are the same number on purpose. When the tones are exactly one baud apart, a receiver that listens to one tone for exactly one symbol period hears nothing from its neighbours: over those 160 ms a neighbouring tone completes exactly one more (or one fewer) whole cycle, and its contribution averages out to zero. This is the tightest spacing at which the tones do not blur into each other for a receiver that does not track phase, and it is how eight tones fit into under 44 Hz.

The modem changes from one tone to the next without a jump in the waveform: the new tone picks up exactly where the old one's phase left off. A phase jump would be a small click at every symbol boundary, and clicks spread energy outside the band. What faint sidelobes remain are cut off by the modem's own transmit filter, 115 to 185 Hz (Section 8.8).

10.3 Why so slow, and why so narrow

Here is why going slow wins. The receiver does not listen to 3 kHz of noise when it decides which tone was sent. It listens to each tone position for 160 ms, and a 160 ms listen only admits noise from a strip about 6.25 Hz wide. The ratio 3000 / 6.25 is 480, which is about 27 dB. So a signal at −15 dB SNR@3k, invisible on a waterfall, is roughly 12 dB above the noise in the tone bin the receiver is actually looking at, and 12 dB is plenty to tell which of eight tones is loudest most of the time.

That is the whole secret, and it has a price: each halving of the symbol rate halves the noise the receiver lets in per decision (3 dB better) and doubles the time on the air. NB8FSK sits far out on that trade.

10.4 From eleven bytes to sixty-two tones

An emergency frame carries 11 bytes. Two of them are a small header (which frame of the message this is, how many frames the message has, and a number identifying the incident), and nine are content. The first frame's nine bytes are a packed summary of the emergency; later frames carry text, thirteen characters to a frame, from a fixed set of digits, capital letters, space and a few punctuation marks. Chapter 23 describes the contents; this section follows the bytes onto the air.

The 11 bytes are first protected by the Reed-Solomon code RS(23,11), which adds 12 check bytes and lets the receiver repair up to 6 wrong bytes out of the 23 (Section 9.3.2).

The 23 bytes are 184 bits, and they go to the modem in order, three at a time, each group choosing one tone. 184 is not a multiple of three, so two zero bits are added at the end to make 186, which is exactly 62 groups. Sixty-two tones at 160 ms each is 9.92 seconds. The receiver knows the two padding bits are there and ignores them.

10.5 Finding the start: the sweep

A receiver can only decode a frame if it knows where the first tone begins, and at these signal levels there is almost no energy to go by. So every emergency frame begins with a known signal that the receiver searches for: a synchronising sweep, a single tone that glides smoothly upward from 125 Hz to 175 Hz over 320 ms, exactly two symbol periods. Radar engineers call this a chirp. It is faded in and out at its ends over about 21 ms and passes through the same filter as the tones, so it is as narrow as the rest of the frame.

10.5.1 Why a sweep and not a tone pattern

The obvious synchronising signal would be a short, fixed pattern of the modem's own tones: "tone 0, tone 7", say. The trouble is that the data can contain that same pattern. Any stretch of payload whose bits happen to produce tone 0 followed by tone 7 looks, to the receiver, exactly like a frame start, and in a message of several frames sent back to back the receiver can latch onto the data and decode garbage.

A sweep cannot be imitated by the data. Payload tones sit still on one of eight frequencies for 160 ms each; the sweep passes through every frequency in the band without stopping on any. It has two more virtues. Compared against incoming audio, it produces a sharp peak about 20 ms wide, which marks the frame start far more precisely than a pair of tones would. And random noise is less likely to resemble a sweep than a tone, so false alarms are rarer.

10.6 Air time

One frame is the 0.32 s sweep plus 9.92 s of tones: 10.24 seconds for 11 bytes, a useful rate of about 8.6 bits per second. A message is one to fifteen frames, sent back to back with no gap, each frame with its own sweep, so the longest message lasts 153.6 s. The first frame alone is a complete distress call (Chapter 23), and it is the shortest thing the modem ever sends. A station keying by VOX puts its leader tone in front (Section 8.9.1).

10.7 Receiving it

Every station searches the emergency region for the sweep whenever it is not transmitting. How that search works, how it sets its threshold against the noise and how it refuses to be fooled by a loud signal elsewhere in the passband are all in Section 13.3.1. What follows is what happens once the start of a frame is known.

10.7.1 Reading the tones

When the 9.92 seconds of tones have arrived, the frame is filtered to 115–185 Hz and, for each 160 ms tone period, the receiver measures how much energy is present at each of the eight tone frequencies. It does not need to know the phase of the signal, only how loud each tone is. This is called non-coherent detection, and it is what lets the modem work on paths where the phase wanders.

For each of the three bits, the receiver adds up the energy of the four tones that would mean "this bit is 0" and the four that would mean "1", and compares. That gives a decision and a confidence for each bit. The decisions are packed back into 23 bytes and handed to the Reed-Solomon decoder, which returns the 11 bytes exactly as sent or reports the frame unreadable.

When a frame decodes and its header says more frames follow, the receiver collects the next one exactly 10.24 seconds after this one's sweep, without searching for it again.

10.7.2 Telling real frames from noise

A receiver that listens around the clock, below the noise, will sooner or later see noise that happens to form a valid-looking block. mLink takes two cheap precautions before it reacts to an emergency frame. They never stop a frame being decoded; they only decide whether to act on the result.

• Confidence. A genuine frame is made of decisive tones, so its bits carry high confidence even at the limit of copy. Noise that happens to decode carries almost none. A frame whose average confidence falls below a low bar (roughly a quarter of the weakest real frame's) is logged and not acted on.
• Self-consistency. The header must make sense: a frame count between 1 and 15, a frame number less than the count, and for the first frame a recognised layout.

10.8 Reaching −17 dB: repetition

Measured in steady noise through the whole receive path, a single emergency frame gets through about 96 % of the time at −15 dB, 85 % at −16, two times in three at −17 and one in three at −18. So one pass of a distress call is dependable to about −15 dB. What gives out first is finding the sweep, not reading the tones: a frame whose start is already known still decodes 98 % of the time at −17 dB.

The distress service does not send once. It repeats the whole message on a schedule until it is acknowledged or the operator stops it (Chapter 23). The receiving side collects frames across the repeats: a frame missed on one pass is simply picked up on a later one, in any order, and the message is complete when every frame has arrived at least once. Each pass is another independent chance through the noise. If one pass at −17 dB succeeds two times in three, three passes all failing happens less than one time in twenty-five.

That is how the message floor reaches −17 dB: not by a cleverer single frame, but by patience. Real HF adds fading, which helps some passes and hurts others, and repetition is exactly the right tool for that too, because a fade that swallows one pass is unlikely to swallow them all.

10.9 What to remember

• NB8FSK sends one of 8 tones at a time, 6.25 Hz apart between 128 and 172 Hz, at 6.25 tones per second: 3 bits per tone, 18.75 bits per second raw.
• Slowness is the point: listening to each tone for 160 ms admits only about 6 Hz of noise, which is how a signal at −15 dB is decoded in one pass.
• Each frame is a 0.32 s sweep from 125 to 175 Hz, which no data can imitate, followed by 62 tones: 10.24 s for 11 bytes.
• Repetition, with frames gathered across passes, carries a whole message to −17 dB.

11.1 The modem every station needs

Everything that makes mLink a network rather than a pair of stations travels in announce frames: who is on the air, who is about to send, what arrived and what did not (Chapter 14). That role sets the design. The announce modem must be robust enough to reach every station worth talking to, short enough that a busy channel is not choked by bookkeeping, and simple enough to be completely fixed: every announce frame, from every station, looks exactly the same on the air.

11.2 QPSK: two bits in every twist of phase

The emergency modem changes which tone it sends. The announce modem sends one steady tone and changes where that tone is in its cycle: its phase.

Picture the tone as a clock hand spinning steadily. At each symbol boundary the transmitter can jump the hand to one of four positions, a quarter-turn apart. The receiver, knowing where the hand should be if nothing had changed, sees which of the four positions it jumped to. Four choices carry two bits. This is QPSK, quadrature phase-shift keying: "quadrature" because the four positions are a quarter-turn apart.

Look at the labels. Going round the circle, 00, 10, 11, 01: each dot differs from both its neighbours in exactly one bit. That arrangement is a Gray code, and it matters because when noise pushes a received phase to the wrong dot, it almost always pushes it to a neighbouring dot. With Gray coding, that common mistake costs one wrong bit instead of two.

11.2.1 200 symbols per second

The announce modem sends 200 symbols per second, 200 baud, so each symbol lasts 5 ms (60 samples). At two bits per symbol that is 400 bits per second on the air before error correction: about twenty times the emergency modem's raw rate.

11.3 Smooth symbols: root-raised-cosine shaping

If the transmitter slammed the phase from one position to the next at each symbol boundary, every jump would be a sharp corner in the waveform, and sharp corners splash energy far beyond the channel. So instead of sending each symbol as a hard-edged 5 ms block, the modem sends each one as a smooth pulse that rises, peaks at the symbol's centre, and dies away, overlapping its neighbours. The shape of that pulse decides how wide the signal is.

mLink uses a root-raised-cosine (RRC) pulse, the standard choice. The shaping is split in half: the transmitter applies one half, the root, and the receiver applies the matching other half, and the combination is the full raised-cosine shape. That combined shape has a subtle and useful property: the pulses from neighbouring symbols overlap in time, yet at the exact centre of each symbol all the neighbours pass through zero, so they do not disturb the reading. The receiver's half also happens to be the filter that best rejects noise for this pulse.

The pulse has one setting, the roll-off, which trades bandwidth against how quickly the pulse dies away. The announce modem uses a roll-off of 0.35, so the signal occupies 200 × 1.35 = 270 Hz. Each pulse is eight symbols long, which gives every stretch of symbols a run-in and run-out of about 40 ms where the first and last pulses fade up and down. A final sharp filter trims the skirts the shaping leaves behind (Section 8.8).

11.4 Where it runs

The same modem runs on each of the three announce channels, centred on 400, 800 and 1200 Hz (Section 8.4), and on the bulk-control channel (Section 8.5.1). Everything in this chapter applies to each of them identically.

11.5 The fixed eleven-byte frame

Every announce frame carries exactly 11 bytes. No more, no less, never a different modulation, never a header describing the frame. The receiver always knows exactly what is coming, which is what lets it be so simple, and it saves the air time a header would cost. The first byte says what kind of frame it is (Chapter 14); the byte layouts are in Appendix B.

The 11 bytes are protected by the Reed-Solomon code RS(23,11), which adds 12 check bytes and repairs up to 6 wrong bytes out of the 23 (Section 9.3.2). The 23 bytes are 184 bits; they go to the modulator in order, two at a time, and become 92 QPSK symbols.

11.6 The preamble: four known symbols

Before the 92 data symbols, every announce frame sends a preamble: four QPSK symbols that are always the same, at phases 225°, 315°, 315° and 135°. With the pulse shaping's run-in and run-out, the preamble lasts about 100 ms. It does two jobs.

1. It says "a frame starts here." The receiver searches for this known pattern on each channel continuously (Section 13.3.2). When it finds it, it knows exactly where the data begins.
2. It tells the receiver the phase. QPSK carries its information in phase, but a receiver cannot know in advance what phase a distant station's tone will arrive with: the path, the two rigs' oscillators and the exact moment of arrival all shift it. Because the preamble's phases are known, the receiver can measure how far the whole signal has been turned, and turn it back.

The transmitter makes that measurement usable by keeping the tone continuous from the preamble into the data: the data section starts at exactly the phase the preamble's tone would have reached had it kept going. So the phase the receiver measures on the preamble is the phase it needs for the data, with no jump in between.

11.6.1 Phase is measured afresh on every frame

Each announce frame carries its own preamble, and the receiver measures the phase from that frame's preamble and applies it to that frame only. It does not carry a phase from one frame to the next, and it does not run a loop that follows the phase through the frame; the one measurement serves the whole 540 ms of data behind it. This is what lets frames from different stations, arriving back to back on the same channel, each decode on their own terms: every frame brings its own reference.

Precise timing matters to this. Every sample of error in locating the preamble turns the measured phase by between 12° (on the 400 Hz channel) and 36° (on the 1200 Hz channel), and 45° of error puts a symbol on the edge between two dots. So the receiver finds the preamble's position to the single sample before it measures the phase.

11.7 Frame timing on the air

Adding it up: the preamble is 4 symbols plus the pulse run-in and run-out, 100.2 ms. The data section is 92 symbols, 460 ms, plus run-in and run-out: 540.2 ms. One whole frame is 7684 samples, 640.3 ms.

When a transmission strings several announce frames together, the frames are separated by exactly 256 samples of silence, 21.3 ms. So in a string, each frame starts 661.7 ms after the previous one. The silence gives the receiver a clean break in which to find the next frame's preamble instead of hunting for it against the tail of the previous frame; it costs about 3 % of the air time of a string. A lone frame is 0.64 s on the air, two frames 1.30 s, and seven frames about 4.6 s.

Every transmission starts and ends with the keying ramp described in Section 8.9. The ramp is shorter than the pulse run-in, so it only touches signal that is already fading up or down.

11.8 Reading a frame

Once the detector has located a frame and measured its phase, the decoder filters the audio to the channel's band, removes the channel's tone using that phase, applies the receiver's half of the pulse shaping, and reads the signal at the centre of each of the 92 symbols. Each reading lands somewhere near one of the four dots, and the nearest dot gives two bits. The 184 bits are packed back into 23 bytes and handed to the Reed-Solomon decoder. Out comes the 11-byte frame exactly as sent, or nothing: a frame the code cannot repair is dropped.

11.9 The −5 dB floor

Measured in steady noise through the whole receive path, 99.7 % of announce frames arrive at −5 dB SNR@3k, and the figure is the same on every announce channel. Below that the frames fade out over about four decibels: 95 % at −6, two in three at −7, and almost none at −9 (Figure 9.6).

Simple arithmetic shows where the number comes from. Each 5 ms QPSK symbol admits noise from a strip about 200 Hz wide, and 3000 / 200 is 15, about 12 dB. So at −5 dB each symbol arrives roughly 7 dB above the noise it is competing with, and Reed-Solomon mops up the symbols that noise gets wrong. The emergency modem's symbols are 32 times longer, which is 15 dB, and its floor is 10 to 12 dB lower (Section 10.3): the same trade seen from the other side. The announce modem sits where it does because its frames are everyday bookkeeping, and at ten seconds a frame the bookkeeping would crowd out the traffic it exists to manage.

The announce floor is, in practice, the edge of the network. Two stations that can hear each other's announce frames can do everything mLink offers, if slowly. Two stations below it cannot exchange traffic directly, though a third station that hears both can relay for them (Chapter 19).

11.10 What to remember

• The announce modem is QPSK at 200 baud: 2 Gray-coded bits per symbol, root-raised-cosine shaped with roll-off 0.35, 270 Hz wide.
• Every announce frame is exactly 11 bytes, sent as 92 symbols behind a 100 ms preamble of four known symbols.
• The preamble marks each frame's start and gives its phase; the phase is measured afresh for every frame.
• One frame is 640.3 ms; strung frames are separated by 21.3 ms of silence, one every 661.7 ms.
• Announce frames decode to about −5 dB.

The bulk modem lives in the bulk region of the passband (Chapter 8) and uses a technique called OFDM, orthogonal frequency division multiplexing: the same family of modulation used by Wi-Fi, DSL, digital TV and DAB radio, scaled down to fit inside a single SSB channel. Which messages travel this way is decided in Chapter 15.

12.1 Why many slow carriers

On HF the same signal arrives several times, a few milliseconds apart, because it reaches the receiver by more than one path (Chapter 3). Those echoes are harmless to a slow signal and ruinous to a fast one. If each symbol (the smallest unit a modem puts on the air: one tone, one phase, one "letter") lasts 1 ms and the second copy arrives 3 ms late, every symbol is smeared across the three that follow it. If each symbol lasts 25 ms, the same echo only muddies the first eighth of it, and the receiver can simply look at the rest. So the fix for echoes is to go slow, and the cost is obvious: a single slow carrier moves very few bits per second.

12.1.1 Slow, but many at once

OFDM keeps the slow symbols and gets the speed back by running many carriers side by side. Each carrier is an audio tone at its own frequency, changing its phase only once per symbol. Any one of them is sluggish, but 24 of them carrying data at the same time move 24 times as many bits. The slow symbols make the signal robust against echoes; the parallelism makes it useful.

The alternative would be one fast carrier. To match the bulk modem's 1,800 bits per second, a single QPSK carrier would need symbols about 1.1 ms long, shorter than the echo spread of many HF paths, and the receiver would need an adaptive equalizer that learns and cancels the echoes as they change: complex, hungry for training signals, and prone to losing track in fast fading. OFDM avoids the problem instead of fighting it. What makes it practical is two tricks that the rest of this chapter unpacks: the carriers are packed so tightly that their spectra overlap and yet do not interfere (the "orthogonal" part), and one fast Fourier transform builds or separates all of them at once.

12.2 One FFT makes all the carriers

12.2.1 The FFT in one paragraph

The FFT (fast Fourier transform) is an algorithm that takes a short stretch of audio samples and tells you how much of each frequency is in it, and at what phase. Feed it 256 samples and it returns 256 "bins", each one a frequency slot with an amplitude and a phase. The inverse FFT (IFFT) goes the other way: give it the amplitude and phase you want in each bin, and it hands back the 256 audio samples that contain exactly those tones.

That is the whole transmitter in miniature. To send one OFDM symbol, the modem writes the phase it wants on each carrier into the matching bins, leaves every other bin at zero, and runs one IFFT. Out comes a stretch of audio that is the sum of all the carriers, each at its chosen phase. The receiver does the reverse: one FFT over the same stretch of audio, then it reads the phase in each carrier's bin. No bank of 28 oscillators and 28 filters is needed.

12.2.2 256 points at 12 kHz

At 12,000 samples per second, a 256-point FFT covers a window of 256 samples, or 21.33 ms, and the spacing between neighbouring bins is the sample rate divided by the FFT size:

12,000 Hz ÷ 256 = 46.875 Hz

Each carrier sits in its own bin, so the carriers are 46.875 Hz apart. The design aimed for round 50 Hz spacing, which would need a 240-point FFT; the fast FFT wants a power of two, so the size rounds up to 256 and the spacing tightens slightly.

12.2.3 Orthogonality: overlapping but not interfering

A tone that lasts exactly one FFT window does not occupy a single thin line in the spectrum. Because it starts and stops, its spectrum spreads into a hump with ripples on either side (the shape is called a sinc). With carriers only 46.875 Hz apart, those humps overlap heavily. So how can the receiver tell them apart?

The answer is the spacing itself. When the carrier spacing is exactly one divided by the window length (1 ÷ 21.33 ms = 46.875 Hz), every carrier's sinc crosses zero precisely at the centre frequency of every other carrier. When the receiver's FFT measures bin 7, it sees carrier 7 at full strength and all the other carriers at exactly zero. Two signals that can be added together and then separated perfectly like this are called orthogonal.

Orthogonality is fragile in two specific ways, and the rest of the modem is largely built to protect it. It needs the FFT window to line up with a symbol that is steady for the whole window (the job of the cyclic prefix, below), and it needs the carriers to land on their bins, so the two stations' frequencies have to be close to each other (Section 13.10).

12.3 28 carriers: 24 for data, 4 pilots

The bulk modem uses 28 carriers. Before being shifted up into place they occupy FFT bins 1 through 28; bin 0 (zero frequency) is left empty, as are all the bins above 28. After the shift described in Section 12.7, the 28 carriers run from 1,617 Hz to 2,883 Hz, centred on 2,250 Hz. Every figure in this chapter is fixed, never negotiated between stations, and all of them are collected in Appendix A.

Four of the 28 are pilots. A pilot carries no data at all. It sends the same known value, a fixed phase, in every symbol, so the receiver can compare what arrived with what it knows was sent and work out what the path did to that part of the spectrum. The pilots are the 4th, 11th, 18th and 25th carriers counting up from the bottom (1,758, 2,086, 2,414 and 2,742 Hz): seven carriers apart, with three data carriers outside each end pilot and six between each pair of pilots. The other 24 carriers carry data.

12.3.1 Two bits per carrier

Each data carrier, in each symbol, takes one of four phases, which is two bits. This is QPSK, the modulation the announce modem uses on its single carrier, and Chapter 11 explains it. Here the four phases are 45°, 135°, 225° and 315°, all at the same strength, and the two bits are assigned so that the first chooses left or right of centre and the second chooses up or down, independently. That lets the receiver judge each bit on its own axis: how far right or left the point landed says how sure it is of the first bit, and how far up or down says how sure it is of the second.

With 24 data carriers at two bits each, one OFDM symbol carries 48 bits.

12.4 The cyclic prefix

Slow symbols make echoes small, but not zero. An echo of symbol 1 that arrives 3 ms late still spills 3 ms into the start of symbol 2. If the receiver's FFT window covered that spill, the window would contain the tail of one symbol glued to the head of the next, the carriers would not be steady tones across the window, and orthogonality would break: every carrier would leak into its neighbours.

The fix is to put a buffer in front of each symbol and have the receiver ignore it. mLink's buffer is the cyclic prefix: a copy of the last 64 samples of the symbol, stuck on the front. The transmitted symbol is therefore 64 + 256 = 320 samples long, 26.67 ms, and the receiver takes its 256-sample FFT window from the last 256 of those. At 37.5 symbols a second and 48 bits a symbol, that is 1,800 bits per second before error correction.

12.4.1 Why a copy, and not silence?

A stretch of silence would also give echoes somewhere harmless to land. The copy does something extra. The FFT treats its window as if it repeated forever. Because the prefix is the symbol's own tail, the echo of a symbol that arrives a little late still shows the FFT a complete, seamless cycle of every carrier: it is the same tones, just shifted in time, and a time shift is only a phase change on each carrier. So an echo shorter than the prefix does not smear the symbol at all; it just changes each carrier's amplitude and phase by some fixed amount. The pilots measure exactly that change and the receiver undoes it carrier by carrier.

The prefix is 5.33 ms, which covers the echo spread of most HF skywave paths. The price is time: one fifth of every symbol carries no new information (64 of 320 samples). mLink pays that for the robustness.

12.5 The cross-symbol interleaver

Fading on HF does not hit bits at random. A deep fade, a static crash or a brief burst of interference wipes out a stretch of time, and in OFDM a stretch of time is a group of whole symbols. Losing one symbol means losing all 48 of its bits at once. If those 48 bits sat next to each other in the codeword, the error-correcting code would face a dense hole in one spot, which is the hardest kind of damage for it to repair.

So before the bits go onto carriers, the bulk modem shuffles them with a cross-symbol interleaver. Picture a grid 48 rows tall and 203 columns wide. The codeword is written into it row by row; then each OFDM symbol takes one column, top to bottom. The 48 bits a symbol carries therefore come from 48 different rows: positions 203 apart in the codeword. When a symbol is lost, the receiver puts the bits back in order and the damage lands as 48 isolated doubtful bits spread evenly through the codeword, one every 203 positions. Scattered damage like that is exactly what the decoder is good at fixing.

Why 203 columns? The codeword is 9,720 bits and each symbol carries 48, so a codeword needs 9,720 ÷ 48 = 202.5 symbols. The grid rounds up to 203 columns (9,744 cells), and the 24 spare cells at the end are filled with zeros that the receiver ignores. The error-correction layer has already applied a smaller shuffle of its own before the bits reach the modem (Chapter 9).

12.6 The bulk frame

A bulk frame is what the modem sends for one codeword of the bulk error-correcting code, LDPC (Chapter 9). It always has the same shape: one sync symbol of 320 samples, which the receiver uses to find the frame (Section 12.9), then 203 data symbols of 320 samples each. That is 65,280 samples, or 5.44 seconds. Frames in one burst follow each other with no gap, so frame i starts exactly i × 65,280 samples after frame 0.

The length never changes, because the codeword is 9,720 bits at every code rate: a stronger rate carries fewer message bytes in the same air time and never makes the frame longer. How many bytes each rate carries is tabulated in Appendix A, and which rate each frame of a burst uses is in Chapter 15.

12.7 The transmit path, step by step

Here is what happens to one frame's worth of codeword bits on the way to the radio.

1. Cross-symbol interleave. The 9,720 codeword bits, plus 24 zeros, go into the 48 × 203 grid and come out column by column.
2. Map to carriers. For each of the 203 symbols, the next 48 bits are taken two at a time and turned into QPSK points, one per data carrier, lowest carrier first. The four pilot bins get their fixed known value. Every other bin is zero.
3. IFFT. One inverse FFT turns the 256 bins into 256 audio samples: the sum of all 28 carriers for that symbol.
4. Add the cyclic prefix. The last 64 samples are copied to the front, giving the 320-sample symbol.
5. Shift up to the bulk region. Straight out of the IFFT the carriers sit between 47 Hz and 1,313 Hz. The whole block is shifted up by 1,570.3 Hz so its centre lands on 2,250 Hz.
6. Filter. Each OFDM symbol starts and stops abruptly, and those edges splash a little energy outside the carriers (the ripples of the sinc shapes in Figure 12.1). The modem removes everything outside 1,594 to 2,906 Hz so that none of it falls into the announce channels (Section 8.8).
7. Level. The result is scaled to the same average power as every other mLink modem produces, and the sync symbol, generated separately and brought to the same level, is placed in front.

12.7.1 Audio in, audio out

Internally the modem works with complex signals: each sample has an in-phase and a quadrature part, which is what lets a carrier have a phase that the FFT can read. What goes to the radio, though, is ordinary audio. The transmitter keeps only the real part of the finished signal, and the receiver rebuilds the complex form with the pre-filter described below. Nothing in the bulk modem needs an IQ interface to the radio.

12.8 The receive path, step by step

Once the receiver has found where a frame starts (Section 13.8), the modem's job is to turn 5.44 s of audio back into 9,720 soft bits. It runs the transmit path in reverse, with two extra stages that do the heavy lifting: estimating what the path did to each carrier, and deciding how much to trust each bit.

12.8.1 The pre-filter

The whole frame, sync symbol included, first goes through one large FFT. Everything outside 1,594 to 2,906 Hz is thrown away, which removes the emergency and announce regions and any noise outside the bulk region; and the negative-frequency half of the spectrum is discarded, which turns the real audio back into the complex signal the rest of the receiver needs. An inverse FFT brings it back to the time domain. The sync symbol rides along at the front to give this filter something to settle on, so the first data symbol is clean.

12.8.2 One FFT per symbol

For each of the 203 data symbols, the receiver skips the 64-sample prefix, shifts the remaining 256 samples back down by the same 1,570.3 Hz the transmitter added, and runs a 256-point FFT. Bins 1 to 28 now hold one received value per carrier: an amplitude and a phase, bent by the path and sprinkled with noise.

12.8.3 Channel estimation from the pilots

HF does not treat the whole 1.3 kHz of the bulk region the same. Echoes create notches: frequencies where two copies of the signal arrive out of phase and cancel. One carrier may come in strong and nearly on its original phase while another, a few hundred hertz away, comes in weak and rotated by 90°. Before the receiver can read any QPSK point it has to know, for each carrier, how much the path shrank it and how far it turned it. That knowledge is the channel estimate.

The pilots provide it. Each pilot was sent at a known value, so whatever arrives in a pilot bin is the path's effect at that frequency, plus noise. That gives four measurements per symbol. For the carriers in between, the receiver assumes a straight line: a carrier two-sevenths of the way from one pilot to the next gets a blend of five-sevenths of the first pilot's reading and two-sevenths of the second's. The three carriers outside each end pilot simply borrow that pilot's reading.

The estimate is made fresh for every symbol from that symbol's own pilots. A path that changes from one symbol to the next (a fade rolling through, the phase drifting because the two radios are a few hertz apart) is followed symbol by symbol, 37.5 times a second.

12.8.4 Equalization and weighted soft bits

With an estimate for each carrier, the receiver can undo the path: rotate each received point back by the estimated phase and scale it back up by the estimated loss. That step is called equalization. The naive version divides by the estimate outright, which works beautifully on strong carriers and terribly on weak ones: a carrier sitting in a notch has been shrunk to almost nothing, and dividing by almost nothing multiplies its noise enormously. The result is a confident-looking point in a random place.

mLink uses an MMSE (minimum mean-square error) equalizer instead. It adds a noise term to the division, so a carrier's correction is scaled back as its strength approaches the noise level. A strong carrier is corrected almost exactly; a carrier buried in a notch is left small instead of being blown up.

The noise term has to come from somewhere, and again the pilots supply it. If the path were perfectly flat, the four pilot readings would be identical, and any scatter between them would be pure noise. The receiver takes that scatter as its noise estimate. On a path that is not flat, some of the scatter is the path's own shape, so the estimate comes out too high, which only makes the equalizer more cautious, never less. The noise estimate is smoothed across symbols (each new symbol contributes a fifth of the running value), kept within fixed upper and lower bounds, and started afresh at the beginning of every frame so one frame's conditions cannot leak into the next.

Then the soft bits: the per-bit confidence numbers that Chapter 9 calls LLRs and feeds to the decoder. For each data carrier, the equalized point's horizontal position becomes the first bit's value and its vertical position the second's. The sign says which way the bit leans; the size says how sure. Before handing them on, the receiver multiplies every carrier's pair by a weight that depends on how strong that carrier was: a carrier in a deep notch gets its soft bits shrunk twice over, once because it is weak and once more by the equalizer's caution. The decoder therefore hears strong carriers loudly and faded carriers as a mumble. The values are finally clipped to the range −127 to +127 so each fits in one byte.

12.8.5 Undoing the interleaver

The 203 symbols yield 9,744 soft bits. The receiver writes them into the 48 × 203 grid column by column and reads them out row by row, restoring codeword order; the 24 filler values at the end are dropped. The remaining 9,720 soft bits go to the decoder.

12.9 The sync symbol

Everything above assumes the receiver knows, to within a few samples, where each symbol starts. If its FFT window is misplaced by more than the part of the prefix that the echoes have left clean, symbols bleed into each other and the frame is lost. So each bulk frame begins with one extra OFDM symbol whose only job is to be found.

12.9.1 A symbol that repeats itself

The sync symbol is built in the style of a well-known method published by Schmidl and Cox (the Schmidl-Cox preamble). Instead of data, it carries a fixed pattern of +1 and −1 on the even-numbered bins only (2, 4, 6 … 28: fourteen carriers), with every odd bin empty. Using only every second bin has a neat consequence in time: the 256-sample symbol consists of the same 128 samples played twice. It is scaled so its power matches the data symbols, and it has a cyclic prefix like any other symbol, so it is also 320 samples long.

That shape gives a receiver three things:

• A quick test. A receiver can spot the repetition without knowing anything else about the signal, by comparing each 128-sample stretch of audio with the 128 samples after it. Noise does not resemble itself 128 samples later; the sync symbol does, almost perfectly.
• An exact position. The symbol's waveform is fully known, so the receiver can slide a copy of it along the audio and find the one position where it matches.
• A frequency reading. If the two radios are slightly off each other's frequency, the second copy of the 128-sample pattern arrives rotated in phase against the first, and the size of the rotation gives the offset.

The repetition test alone is not enough to trust: any OFDM symbol repeats itself somewhat, because it carries a copy of its own tail in its prefix, and a steady tone repeats perfectly. How the receiver combines the three, and why it only looks for a bulk frame where an RTS (request to send) has told it to expect one, is in Section 13.8.

12.10 What to remember

• The bulk modem is OFDM: 28 carriers 46.875 Hz apart between 1,617 and 2,883 Hz, of which 24 carry QPSK data (2 bits each) and 4 are pilots. Many slow carriers beat one fast one because slow symbols shrug off echoes.
• Each symbol is 320 samples (26.67 ms): a 256-sample FFT window plus a 64-sample cyclic prefix that absorbs echoes. That gives 48 bits per symbol and 1,800 raw bits per second.
• One bulk frame is one sync symbol plus 203 data symbols: one codeword, 5.44 s long at every code rate.
• A 48 × 203 interleaver spreads each symbol's bits across the codeword, so a fade becomes scattered, fixable damage.
• The receiver estimates the path afresh on every symbol from the pilots, equalizes cautiously (MMSE), and passes the decoder soft bits weighted by how strong each carrier was.

13.1 Why listen to everything, all the time

On one channel, at one moment, there may be an emergency call at the bottom of the passband, short frames on two announce channels, and a bulk transfer up top. Any of them might concern this station, and a distress call must never be missed because the station was "busy" hearing something else.

So the receiver has no notion of "busy". It keeps a continuous recording of the audio and runs three independent searches over it, one for each region, on every fresh slice of sound. Finding a frame in one place never stops the search anywhere else.

13.2 The recording

Audio arrives from the sound card in blocks of 512 samples (about 43 ms) by default. Every sample is written into a capture ring: a circular recording 524,288 samples long, about 43.7 seconds, in which the newest sample overwrites the oldest. Every sample also gets an absolute position, a counter that only ever counts up, so a detection, the frame it belongs to and the moment that frame's last sample will arrive are all numbers on one timeline.

For every block the receiver does the same four things, in this order:

1. Write the block into the ring.
2. Hand over any frame that is now completely recorded to a decoder.
3. Run the three detectors over the most recent stretch of the ring.
4. Measure the overall audio level (Section 13.11).

13.3 Three detectors, three kinds of sync

Every mLink frame starts with a short, known waveform whose only job is to say "a frame starts here": a preamble, also called a sync. Each region has its own. Because the receiver knows exactly what each preamble looks like, it can search for it with a matched filter.

Picture a transparent strip with the preamble's waveform printed on it. Slide it along the recording and, at each position, multiply the strip by the recording under it point by point and add everything up. Where the recording is just noise, the products are as often negative as positive and mostly cancel. Where the preamble really is under the strip, every product is positive and they pile up. That sum is the detector's score at that position, and a real preamble shows up as a sharp peak. The longer the preamble, the more products pile up, which is why a long preamble can be found under a lot of noise: this is the matched filter's processing gain.

13.3.1 The emergency detector

The emergency preamble is a smooth sweep across the whole emergency region (Chapter 10 says why). Matched against a copy of itself it gives a peak only about 20 ms wide, sharp enough to say where a ten-second frame starts.

The region is only 50 Hz wide, so 12,000 samples a second is far more detail than it needs. The detector removes everything above about 200 Hz, keeps every eighth sample, and narrows that copy to 115–185 Hz: eight times cheaper, with nothing lost. When a score passes the tests below, the detector goes back to the full recording and searches again, every other sample within 4 ms either side of the hit. That second pass matters most at the weakest signals: the weaker the signal, the less misalignment the emergency demodulator tolerates, and a whisper of a call decodes only if the start is right to within a few milliseconds.

13.3.2 The announce detector

The announce detector watches four channels at once: the three announce channels and the bulk-control channel, which carries the same kind of frame. It turns the newest stretch of the recording into a spectrum once, shares that work across all four, and with one more Fourier transform per channel has the score at every position. It looks at every 30th position for a peak and, when one passes the tests, re-examines every position within 30 samples of it to land on the best one.

To read a QPSK symbol the decoder has to know the carrier's phase, the exact point in its cycle the carrier is at. The preamble's peak gives that phase as well as the position, and the detector passes both on. Get the position wrong and the phase comes out wrong too: every sample of error turns it by 12° on the 400 Hz channel and 36° on the 1,200 Hz channel, and at 45° a symbol sits on the edge between two values, so the frame decodes to confident garbage. That is why the detector refines its hit to the single best sample.

13.3.3 The bulk detector

The bulk detector does not run at all unless the station has just decoded an opener announcing a bulk burst, normally an RTS (request to send). A bulk frame is never valid without an opener in front of it, so not looking means a stray bit of noise can never pretend to be one. The price is plain: a station that missed the opener will not hear the burst behind it. Section 13.8 has the details.

13.4 How loud is "there"? Adaptive thresholds

A score on its own means nothing: the same number might be a clear signal on a quiet night and pure noise at noon on a crackling band. So the emergency and announce detectors compare every score against the scores they have recently seen when nothing was there.

Radar engineers call this CFAR, constant false alarm rate: decide how often you are willing to be fooled by noise, then keep moving the bar so that noise alone clears it about that often. If the band gets noisier the bar rises; if it goes quiet the bar drops, and weaker real signals become findable.

Each detector keeps a rolling memory of its recent noise scores: the last 512 for the emergency detector and the last 4,096 for each channel of the announce detector. From the average of that memory it estimates how widely noise scores spread, and sets the threshold at five times that spread.

Three pieces of housekeeping keep that memory honest.

• Signal is not noise. While a detector is tracking a frame on a channel, or has just handed one over, the scores from inside that frame are left out. Otherwise a run of back-to-back frames would teach the detector that "noise" looks like signal, and it would miss the next frame in the run.
• One loud moment does not move the bar. A single score more than five times the average is trimmed to five times the average before it is remembered.
• Silence is not noise either. A score of essentially zero comes from digital silence (a sound card not delivering yet, say), not from the band, and is ignored. A memory full of zeros would put the bar at zero.

Until a detector has collected 64 scores it uses a cold-start bar instead, set from the noise level in its region: a slow running average that follows only readings no more than 6 dB above it, so a burst of signal cannot drag it upward.

13.4.1 How weak a signal each detector finds

Measured through the whole receive path, one frame at a time in steady noise, the emergency detector finds about 97% of frames at −15 dB (SNR@3k), 86% at −16, 69% at −17, 51% at −18 and 34% at −19. A frame that has been found and lined up still decodes 98% of the time at −17 dB. So at the emergency floor it is the detector, not the decoder, that decides whether a single frame gets through; the distress service's repeats cover what one look misses (Chapter 10).

For announce frames it is the other way round: the detector finds essentially every frame down to −9 dB, well below the −5 dB at which they stop decoding (Chapter 11).

13.5 The loud neighbour

Each region's threshold is tied to that region's own noise, which can be very low. Suppose a station a few kilometres away is running a bulk transfer at S9+20 while you listen for a faint emergency call. No filter is perfect: a tiny fraction of the bulk signal's energy leaks into the emergency region, and against that region's tiny noise level, multiplied by the matched filter's processing gain, the leak could score like a real preamble.

The dynamic-range guard stops that: every detector also requires its score to clear a second bar, one quarter of the loudness of all the audio, whatever region it is in. A real signal in your region clears that easily with the matched filter's gain behind it. A faint leak from somewhere else does not.

The guard only bites when the signal you want is enormously weaker than the loudest thing on the channel: roughly 37 dB for bulk, 43 dB for an announce frame and 48 dB for an emergency call. With no loud neighbour it changes nothing.

13.6 Deaf while you talk

mLink is half duplex (Chapter 3): while the station transmits, its receiver hears nothing useful. The receiver handles that in three ways.

• At the moment of keying, every tentative detection is abandoned. A half-recorded frame cannot be finished, and stitching its first half to whatever arrives after the transmission would produce garbage that might even decode as something. Anything that finishes decoding while the station is keyed is thrown away for the same reason.
• The timeline keeps moving. While keyed, the station feeds the ring low-level artificial noise instead of the real audio, so sample positions stay in step with real time.
• Learning is frozen. The filler samples are marked, and each detector skips any stretch that contains them: no scoring, no changes to its noise memory. The filler's level is a guess, not a measurement of the band. A detector that learned from a filler quieter than the band would lower its bar during every transmission and take the first real noise after key-up for a detection.

13.6.1 Holding your own key while a frame comes in

The reverse case is a frame that is arriving when the station wants to transmit. A tentative detection on any of the announce detector's four channels or in the bulk region, or a frame already with a decoder, holds the station's ordinary transmissions back: genuine traffic is about to be decoded. A reply the station owes and a distress call are never held.

A tentative emergency detection holds nothing. Holding the radio for every false alarm of that sensitive detector would cost ten seconds of silence each time, and a real call repeats and is heard by the other stations in range as well. The rest of the decision to key is in Chapter 17.

13.7 From a hit to a decode

When a score clears both bars, the detector does not decode anything yet. It records a tentative detection for that channel: where the preamble starts, how good the score was, the phase (for announce) and an SNR estimate. Each channel has room for one.

13.7.1 Upgrading a detection

The detectors re-scan overlapping stretches of the recording every block, so the same preamble is seen several times as it slides through, sometimes only partly the first time. A new peak within one preamble length of the tentative one replaces it if it scores better: that is the same frame, better aligned. A peak somewhere else replaces it only if it is stronger. Two refinements keep this from going wrong on runs of frames.

• Announce frames in a run arrive 661.7 ms apart (Chapter 11). Once the receiver has handed over one frame of a run, a candidate within 2 ms of where the next should start beats any candidate that is not, whatever the scores: the data inside a QPSK frame can occasionally match the preamble almost as well as the real preamble does, and position is the tie-breaker that score cannot be. For the same reason a jump of more than 32 samples within one frame has to score at least 20% better.
• Emergency frames take ten seconds to record, and at the weakest signals a chance match between the sweep and the data can score as well as the true start. So the first emergency detection to clear the bars wins and is never displaced. And when a decoded frame says another follows in the same transmission, the receiver places its next detection directly where that frame must start, exactly 10.24 seconds after this one, without searching.

13.7.2 Handing the frame to a decoder

On every block, before searching, the receiver checks each tentative detection: has the last sample of that frame arrived? Once it has, the whole frame is copied out of the ring and handed to a decoder worker, a separate thread that does the heavy demodulation and error correction without holding up the listening. A station runs two, so a bulk frame and an announce frame can be decoding at the same time. After the hand-over the receiver refuses to detect the same frame again as it slides through later searches.

13.8 Lining up on a bulk burst

A bulk transfer is a string of OFDM frames, each 5.44 seconds long, laid end to end with no gaps (Chapter 12). The bulk detector has to find each frame's start to within a sample or two, and make sure that one missing frame cannot throw off the rest.

13.8.1 The opener arms the search

A bulk transmission has the shape [presence][rts][bulk 0][bulk 1].... The RTS says how many frames are coming and the highest code rate they will reach, and its own position in the recording says where they will be: frame 0 starts 150 ms (1,800 samples) of silence after the RTS ends, and every later frame follows at a fixed stride. So a decoded RTS gives the receiver a predicted start for frame 0 and a frame count, and the bulk detector searches around the predicted starts and nowhere else. The opener of a repair burst, or of a later segment of a long transfer, arms it the same way. Once the burst's air time has passed, the arming lapses.

Around a predicted start the detector first asks two cheap questions. Is the bulk region at least 3 dB louder than its usual noise? And does the audio repeat itself half a symbol later, as the bulk preamble does (Section 12.9)? Only then does the matched filter look for the exact start, at the positions the prediction allows. The result must clear the loud-neighbour guard and a bar set from the bulk region's noise level. The bulk detector keeps no rolling memory of scores, because while a burst is expected nearly everything it sees is signal; its noise level is refreshed from the announce region's at the moment of arming.

13.8.2 Frame 0 first, and it must really be frame 0

Frame 0 is the anchor for every other frame's position, and the rest of the message cannot be checked without it (Chapter 15). So the detector insists on finding it first:

• It searches within 1,400 samples (about 117 ms) either side of the predicted start. That covers the uncertainty in where the RTS was found and is narrower than the 150 ms of silence in front of the burst, so the search never reaches back over the RTS. Separating the opener from the burst is the silence's only job.
• The best match must also pass a coherence test: how closely does the shape of this stretch of audio match the preamble's shape, ignoring how loud it is, on a scale from 0 to 1? A real, correctly aligned bulk preamble scores about 0.997. Noise, OFDM data, silence, even the right preamble shifted by a fraction of its length, all score 0.5 or less. The detector demands at least 0.70.
• Until frame 0 has been found, the detector looks for no later frame. If a later frame were taken as the anchor, every frame's place in the burst, and so its code rate, would be off by one.

The station does not need the silence as time to get ready. An RTS has to be recorded to its last sample and then decoded before the search can be armed, and on a busy station that can take longer than the silence lasts. If the search is armed more than about 0.2 seconds after frame 0 was due to begin, the receiver waits until the whole of frame 0's search window has been recorded and searches it once, straight from the ring, with the same tests except the loudness question.

If frame 0 has still not been found by the time it would have finished arriving, plus 16,384 samples (about 1.4 seconds), the detector stops looking for this burst altogether and nothing of it is decoded. A station that was only overhearing lets it go. The station a directed transfer was addressed to still answers when the burst should have ended, with a dNAK (the reply that lists missing frames) naming every frame; Chapter 16 says what the sender does with it.

13.8.3 Every other frame at an exact stride

When frame 0 is found, its true position replaces the prediction. From then on frame i can only start at that position plus i times the frame length (65,280 samples), and the detector searches only 64 samples (5.3 ms) either side of that spot. The two stations' sound cards run at very slightly different speeds, but over a burst the drift is a handful of samples at most.

The narrow search is what makes a missing frame harmless. If a fade wipes out frame 2, its window contains no preamble and slot 2 stays empty. The receiver never goes looking a few thousand samples away, so frames 3 and 4 are found exactly where they should be, and the sender is asked to repeat only frame 2 (Chapter 16).

Position also tells the decoder the frame's code rate, which follows from its place in the burst (Chapter 15). The receiver works out that place from where the preamble landed relative to frame 0, not by counting frames as they arrive, so a missing frame cannot make it decode the next one at the wrong rate.

13.9 Signal reports: the SNR estimate

Every emergency and announce detection comes with an estimate of how strong the signal was. The matched filter's peak says how strongly the preamble was heard; a noise reference says how strong noise looks through the same kind of measurement. Their ratio, in decibels, rises one-for-one with the real SNR but includes the matched filter's processing gain, so each detector subtracts a fixed correction, set on simulated air with a precisely known SNR.

• Announce frames take their noise reference from two thin slivers of the passband that no mLink signal uses: the gaps between the announce channels, 545–605 Hz and 945–1,005 Hz. It is updated only while no announce frame is in progress, so a strong signal cannot leak into it and make itself look weaker. It is also the only honest reference for the bulk-control channel, whose own strip is full of bulk data whenever anyone is transferring.
• Emergency frames use the detector's own rolling noise memory.
• Bulk frames have no SNR estimate: there is no clean noise reference inside a bulk burst.

When a frame decodes and names its sender, the reading goes into that station's link estimate (Chapter 18).

13.10 Frequency offset

Two rigs set to the same dial frequency are never exactly on the same frequency, and the difference shifts every tone in the audio by a few hertz. The bulk preamble lets the receiver measure that shift. Its two halves are identical when sent, so any rotation of phase between them, as received, can only come from a frequency offset. The measurement is unambiguous up to about 47 Hz either way. The announce and emergency detectors measure no offset.

Where the station has CAT control of a rig that supports RIT (receiver incremental tuning), it runs a slow correction loop instead. Each decoded bulk frame's offset is averaged in, the newest counting for a quarter; when the average drifts beyond 10 Hz the station nudges the rig's RIT the opposite way, no more often than once every two seconds. Announce and emergency frames are left out, because a reading of "no measurement" from them would pull the average toward zero. The loop therefore moves only when bulk traffic keeps showing a sustained drift.

13.11 A quick ear for the key-up decision

A detector needs most of a preamble, up to a few tenths of a second, before it can say anything. That is too slow for the question the station asks before every key-up: is anyone on the air right now? So for every block of real audio the receiver also compares the overall level with a floor that drops quickly in quiet stretches and rises only slowly (Chapter 17).

13.12 What to remember

• The receiver records everything into a 43.7-second ring and runs three independent detectors over every fresh slice; finding one thing never stops it looking for another.
• The bar a detector's score must clear follows the noise (five times its spread), never learns from signal, and is backed by a guard against a loud neighbour's leakage.
• While the station transmits, half-heard frames are dropped and the detectors neither score nor learn.
• Bulk is only searched for after an opener. Frame 0 must be found within about 117 ms of its predicted start and pass a coherence test; every later frame is looked for within 5.3 ms of an exact stride, so a missing frame leaves an empty slot instead of throwing the rest off.
• Emergency and announce detections carry an SNR estimate; bulk frames carry a frequency-offset measurement, which steers the rig's RIT.

14.1 One press of the key

In mLink a transmission is exactly one push-to-talk (PTT) turn: the radio keys, a run of frames goes out back to back, and the radio unkeys. Nothing about a transmission is spread across two key-ups.

That sounds obvious, but it is a real design decision, and much of the protocol leans on it. The receiver does not treat the passband as a stream of loose frames to be sorted out later. It treats each keyed burst as a unit and reads the middle in the light of the beginning. The rest of this chapter is about that beginning.

14.1.1 How long a transmission is

Transmissions are built from two kinds of frame. Control and short data travel in announce frames: each is on the air for about 640 ms, and the frames of one transmission are separated by a silent gap of about 21 ms, so every extra frame costs about 662 ms of air (Section 11.7). Large data travels in bulk frames of 5.44 s each (Chapter 12).

A short exchange is therefore short. An acknowledgement is two announce frames, about 1.3 s of transmitter time. A bulk transfer opens with two announce frames, pauses for 150 ms, and then sends its bulk frames end to end. One transmission carries at most ten bulk frames, about 54 s; a bigger message goes out as a series of such transmissions (Section 16.7).

14.2 PRESENCE goes first

The first frame of every ordinary mLink transmission is a PRESENCE frame. It is one announce frame, and it says three things:

• Who is transmitting: the station's callsign, packed into six bytes (Section 14.6).
• Roughly where: the station's Maidenhead grid locator to six characters, such as DM12ab, or to four if the operator chooses to say less (Chapter 28).
• What kind of PRESENCE this is. The everyday kinds are "automatic station" and "an operator is present". A few others turn PRESENCE into a small question or answer; they belong to the start-up and geopoll procedures (Chapter 18).

A PRESENCE on its own is a complete transmission: that is what a beacon is, a station keying up for one frame just to say "here I am". Everything else the station sends is PRESENCE plus whatever it actually came to say.

14.2.1 The gateway flag

The locator does not need all of the four bytes it is given. Packed as one number it takes 25 of the 32 bits. The other seven are flags about the station itself: three are in use and four are spare (Section B.5).

The one that matters most is the first of them, the gateway flag. A station sets it while it can reach its mail server over the internet: the server is configured, the station is registered with it, and the last successful contact was less than ten minutes ago. A station that is part of a cluster (Chapter 31) also sets it when another member of the cluster can reach the server on its behalf.

Because the flag rides in every PRESENCE, every station within earshot learns who the gateways are at no cost in air time, and a gateway whose internet link drops simply stops setting the bit. What stations do with that knowledge is the business of Chapter 24. The other two flag bits belong to Chapter 32.

14.2.2 No traffic under a placeholder callsign

The station will not transmit without a real callsign. If the configured callsign is empty, is the placeholder N0CALL, or is not a valid amateur callsign, the station refuses to send, beacon or report its position, and the client shows an error until one is set. The one thing allowed out regardless is a distress call (Chapter 23): a call for help under the wrong name beats silence.

14.2.3 Where PRESENCE is not the first frame

Three kinds of signal are built differently.

• The emergency region. A distress call there is sent by a different, much slower modem with its own frame format and no PRESENCE (Section 23.3). When other stations repeat a heard distress call on the announce channels, those repeats do open with the repeating station's PRESENCE.
• The geopoll. The question "is anyone inside this area?" is a single frame that carries the area in place of a callsign and grid, and it is the whole transmission (Section 18.5).
• Four frames of a virtual net. A roll-call check-in, a station's own request to join, a request for the roster and the owner's instruction to net control each carry the sender's full callsign inside the frame and go out as one frame alone (Section 22.2.1). The station is still identified: the callsign is in the frame instead of in front of it.

14.3 The type byte and the frame families

Every frame on an announce channel, and on the bulk-control channel, is the same physical object: eleven bytes, which the announce modem protects with twelve more and sends as one frame (Section 11.5). There is no separate "data frame", "reply frame" or "relay frame" format. A PRESENCE, an acknowledgement and a slice of a text message are all announce frames; only the meaning of the eleven bytes changes.

The first of the eleven is the type byte, and it says what the other ten mean. It is split into two halves of four bits each:

• the high half is the frame family, a broad group such as "presence" or "relay";
• the low half is the subtype, which picks one frame within the family.

Written in hexadecimal the two halves read straight off the byte: 0x21 is family 2, subtype 1, which is an RTS; 0x01 is family 0, subtype 1, a PRESENCE from a station with an operator present. That is how the kind of a PRESENCE costs no data byte: it is the subtype.

Four bits give room for sixteen families of sixteen frames each. Nine families are in use:

Families 0x9 to 0xF are unassigned. The BULK family is named for the bulk transfer it was built around, but it controls shortbursts too, for a plain reason: the SHORTBURST family spends its subtype half on the frame's position and has no room left for control frames.

This chapter stops at the families. What each frame is for, and where every field sits in it, is listed once, in Appendix B.

Two consequences of the fixed eleven bytes run through the whole protocol. A frame that needs fewer bytes is padded with zeros and costs exactly as much air as a full one, so nothing in mLink saves bytes by leaving a field out. And anything that needs more than eleven bytes is split across several announce frames in the same transmission.

14.4 What follows the PRESENCE

After the PRESENCE comes the reason for keying up. Written in the bracket notation this book uses, a transmission is a frame chain: the frames in the order they go out, such as [presence][ack]. Most chains have the same three-part shape:

1. PRESENCE, always.
2. Optional followers: frames that add something without ending the chain. HELLO frames, a position report, an AREA frame naming the circle a message is aimed at, a FOR frame naming the original sender of a relayed message, the manifest of a longburst, the pieces of a repeated distress call and most named-net frames are followers.
3. One opener: the frame that says what this transmission is for. An RTS (request to send) announces a bulk transfer, an SB-RTS announces a shortburst, an ACK or dNAK answers someone else's transfer, a relay or mail frame asks or answers a question. Data frames, if any, come after the opener.

Not every chain has an opener: a beacon that carries a few HELLOs, or a position report, is PRESENCE and followers and nothing else. When a transfer does carry followers, they sit between the PRESENCE and the opener in a fixed order. Three chains show the range:

• [presence][ack]: the shortest exchange there is, "I received your message complete".
• [presence][sb-rts][sb 0][sb 1][sb 2]: a shortburst, a 26-byte message carried entirely in announce frames.
• [presence][hello][hello][for][area][rts][bulk 0][bulk 1]: a bulk transfer that happens to carry everything a bulk transfer can: two heard-list lines, a relayed message's original sender, and a target area.

In practice most transmissions are two or three announce frames before any data starts. The chains seen most often on the air are tabulated in Section B.3.

14.5 Who said this? Binding by timing

Here is the payoff for putting PRESENCE first. Almost none of the frames that follow it carries a callsign. So how does a listener know who sent them?

It knows by timing and position, the same way you know who is talking on a voice net: the voice that just gave its call is the voice that is still talking. mLink calls this temporal binding. For each announce channel it listens to, the receiver remembers the most recent PRESENCE it decoded there and when. A frame that arrives on the same channel shortly afterwards is taken to be from that station.

14.5.1 The freshness window

"Shortly afterwards" has a precise value. The next frame of a chain is due one frame plus one gap later, about 662 ms. The receiver allows twice that, 1.32 s, for decode delay and timing jitter. This is the freshness window, and it is measured from the last frame that kept the chain going, not from the PRESENCE itself. Each follower restarts the clock, so a chain with several followers is just as safe as one with none.

The rules the receiver applies are short:

• A PRESENCE starts a new binding on its channel, replacing whatever was there before.
• A follower keeps the binding and restarts the clock.
• An opener uses up the binding: the receiver credits the opener to the bound station and then clears the channel, so the same PRESENCE can never be credited with a second, unrelated opener later on. The SB-RTS is the one opener that leaves something behind: it opens a reception on that channel for the shortburst frames that follow it.
• An opener that arrives with no PRESENCE bound on its channel, or after the window has run out, is dropped. The receiver would rather lose a frame than guess who sent it.

14.5.2 Followers must also be on the beat

The window alone would let a stranger in. Suppose station B's transmission ends, and half a second later station F's begins on the same channel, but F's PRESENCE is lost to a fade. F's next frame arrives inside B's window, and would be credited to B.

For followers that say something about their sender (a HELLO, a position report, a named-net frame, a piece of a repeated distress call) the receiver therefore checks one more thing. A transmitter sends the frames of a chain at an exact, fixed spacing, and the receiver knows, to the audio sample, where each frame it decodes began. A follower that starts a whole number of frame spacings after the bound station's last frame is credited to that station. One that is off the beat, by more than a sample plus the small drift between two sound cards' clocks, belongs to somebody else and is left without a sender; a HELLO or a net frame with no sender is discarded.

Each of the three announce channels keeps its own binding, and so does the bulk-control channel, which carries the PRESENCE, RTS and replies of bulk transfers. One channel can be in the middle of receiving a shortburst while another carries a different station's ACK; the two never cross.

14.5.3 Binding the data frames

Shortburst frames follow their SB-RTS on the same channel, and belong to the reception it opened until that reception closes.

Bulk frames are in a different part of the passband, so they are bound by the clock instead. The RTS says how many bulk frames are coming; they start 150 ms after the RTS ends and follow one another every 5.44 s. The receiver works out the expected arrival times from the moment it decoded the RTS, and a bulk frame that arrives on that schedule belongs to that RTS, and so to the station whose PRESENCE the RTS was bound to. Its place in the schedule also says which frame of the transfer it is (Section 16.3). How closely the receiver searches around each expected time is in Chapter 13.

14.5.4 The safety net under binding

Timing is a strong clue but not a proof. On a busy channel with stations that cannot all hear each other, a receiver could decode frames from two transmissions and join them. Two checks catch it. Every message carries a two-byte check value computed over the sender's callsign, the receiver's callsign and the message; the receiver recomputes it using the sender it bound by timing, and a message credited to the wrong station fails (Section 16.2). And a station waiting for a reply accepts it only from the station it sent to, on the channel the exchange used (Section 16.4.4).

14.6 Callsigns in six bytes

A callsign is written in a small alphabet: a space for padding, the digits, the letters, and the two marks callsigns actually use, the stroke / of a portable or visiting station and the hyphen - of a secondary station identifier. That is 39 symbols, so mLink writes each callsign as a number in base 39, the same idea the FT8 family uses. This is callsign packing.

The recipe:

1. Convert the callsign to capitals.
2. Pad with spaces to nine characters.
3. Give each character a value: space is 0, the digits 0 to 9 are 1 to 10, the letters A to Z are 11 to 36, / is 37 and - is 38.
4. Read the nine values as a nine-digit base-39 number, first character most significant, and store that number in six bytes, most significant byte first.

For example, W1AW becomes W 1 A W followed by five spaces, values 33, 2, 11, 33, 0, 0, 0, 0, 0, which works out to the number 176,932,451,189,169, stored as the bytes A0 EB 4B E7 01 B1. Every station does the same arithmetic, so every station unpacks the same six bytes back to W1AW.

Why nine? Six bytes hold a little over 281 trillion values, and nine base-39 characters need about 209 trillion, so nine is the most that fits. That covers every real callsign with its suffix: VE3XYZ/P, KH6/W1AW and KX0AAA-7 all go on the air whole and come back character for character. A received value too large to be nine characters is not a callsign, and the receiver rejects it.

14.7 Addressees that belong to nobody

Every frame that names a destination names it with a six-byte packed callsign. There is no other kind of address field. To send to more than one station, mLink uses reserved addressees: names that start with the digit 0. No licensed station can hold one, because no callsign series in the international allocation table begins with 0. One simple rule, "a leading 0 means not a station", covers all of them:

A receiver treats a transfer addressed to any of them as addressed to itself: it receives and keeps the message. Neither the area nor the net is a filter on who may receive; each decides who gets alerted.

Because they are reserved, none of them is ever treated as a real station: a receiver never adds 0CQCQCQ to its list of heard stations or to its map of who hears whom. The two-byte message check still works for them. For a message to everyone, whether to 0CQCQCQ or to an area, it is computed with 0CQCQCQ standing in as the receiver; a message to a net is checked against the net's own addressee. Any listener can reproduce either.

14.7.1 Why there is no broadcast flag

14.8 Station identification

The FCC's station identification rule for amateurs (47 CFR §97.119) asks a station to transmit its callsign at the end of each communication and at least every ten minutes during one, so that listeners know where the signal is coming from. Other administrations have similar rules.

mLink's reading is that PRESENCE satisfies this without any extra machinery. Every ordinary transmission opens with the station's own callsign, so the station identifies every time it keys, and no transmission lasts anywhere near ten minutes. The last transmission of any exchange (an ACK, say) is itself headed by a PRESENCE, so the end of the communication is identified too. The four named-net frames that go out alone carry the callsign inside the frame. The callsign is packed, not spelled out, the same posture FT8, JS8 and other modern digital modes take, and anyone running mLink software decodes it back to the plain callsign.

That is why there is no separate periodic identification and no Morse-code tail: the protocol already says who is transmitting, at the top of every transmission, as a side effect of how it binds its frames. It is also why the station refuses to transmit under a placeholder callsign: sending the wrong identity is exactly what the rule exists to prevent.

14.9 What to remember

• A transmission is one PTT turn. It is the unit the protocol reasons about.
• Every ordinary transmission opens with PRESENCE: packed callsign, a grid locator of up to six characters, and a status in the type byte. The top bit of the grid field is the gateway flag.
• Every announce frame is eleven bytes. The first is the type byte: family in the high four bits, subtype in the low four. Nine families are in use.
• Frames after the PRESENCE carry no callsign. They are credited to the PRESENCE on the same channel within 1.32 s of the last frame of the chain, and followers must also be on the transmitter's frame spacing; bulk frames are credited through the timing the RTS sets up.
• Callsigns are nine base-39 characters in six bytes, suffixes included. A leading 0 marks a reserved addressee: 0CQCQCQ, 0CQQTH, or 0 + a net name. There is no broadcast flag.
• Station identification is a side effect: the callsign goes out at the top of every transmission, and never as N0CALL.

15.1 Why three sizes

mLink has two modems that can carry a message, and they are good at opposite things. The announce modem (Chapter 11) moves 10 bytes in each frame of about two-thirds of a second, and it still decodes at −5 dB SNR@3k. The bulk modem (Chapter 12) moves 603 to 1,008 bytes in each frame, but a frame always lasts 5.44 seconds however little is in it, and stations only trust it on a link of +6 dB or better (Section 9.7.3).

For a 40-byte text, a bulk frame would be nearly all padding. For a 5 kB mail, the announce modem would hold a shared channel for minutes. So there are three ways for a message to travel, and one rule table that picks.

All three work on the size of the message after it has been compressed and wrapped (Chapter 21). A chatty 300-character text may well compress into a shortburst.

15.2 Shortburst

A shortburst is a message sent as a string of ordinary announce frames, in one transmission, on one announce channel:

[presence][sb-rts][sb 0][sb 1]…[sb 15]

PRESENCE says who is sending (). The shortburst RTS (request to send) names the addressee, or a reserved "everyone" address for a broadcast, and carries the message's 16-bit check, which is also its name on the air (Section 16.2). Then come the data frames.

15.2.1 What is in the frames

An announce frame holds one type byte and 10 bytes of data. In a shortburst data frame, half of the type byte gives the frame's place in the message, 0 to 15. Four bits of position is why a shortburst is at most 16 frames long.

Frame 0 spends four of its ten data bytes on a header: the length of the message (2 bytes) and the check (2 bytes). That leaves 6 bytes of message in frame 0 and 10 in each later frame, so the largest shortburst is 6 + 15 × 10 = 156 bytes. The layouts are in Appendix B.

15.2.2 On the air

Frames follow each other every 0.66 seconds. A message of 1 to 6 bytes is three frames on the air, about 2.0 seconds. Every further 10 bytes adds one frame, and a full 156-byte shortburst is 18 frames, about 11.9 seconds. The RTS does not say how long the message is; frame 0 does, so a listener that has decoded frame 0 knows how many frames are still to come and keeps off that announce channel until they have passed (Chapter 17).

15.3 Longburst

Between 157 and 601 bytes there is an awkward gap: too big for one shortburst, and the path may be too weak for bulk. The longburst fills that gap and nothing else.

15.3.1 How it works

A longburst is one message sent as up to four shortbursts, each in its own transmission. The message is cut into pieces of 156 bytes (the last piece gets what is left), and each piece travels as a complete, addressed shortburst with its own RTS, its own check over just that piece, and its own acknowledgement.

The first transmission carries one extra frame right after PRESENCE, the longburst manifest. It says three things: the length of the whole message, the check for the whole message, and how many pieces are coming. Because the pieces are always cut at the same 156-byte boundaries, both ends work out from the total length which bytes belong in which piece, and no piece has to say which one it is.

[presence][manifest][sb-rts][sb 0]…[sb 15]  … reply …  [presence][sb-rts][sb 0]…  … reply …

The sender sends the next piece only after the addressee has acknowledged the one before. When the last piece is in, the receiver tests the whole message against the check from the manifest before it delivers anything.

15.3.2 Why it stops at 601 bytes

601 bytes is what one bulk frame carries at its most robust rate. The longburst is held to one bulk frame's worth on purpose: it is the stopgap for a weak link, not a way to move files over the announce channels. A full 601-byte longburst already costs about 47 seconds of sending, against 6.9 seconds for the same bytes as one bulk frame.

A longburst is always addressed to one station, because it leans on that station acknowledging each piece.

15.4 Bulk

A bulk transfer puts the message into the fast modem in the bulk region.

[presence][rts][bulk 0][bulk 1]…[bulk n]

PRESENCE and the RTS are announce frames sent on the bulk-control channel (Section 8.5.1). The RTS names the addressee and gives three numbers: how many bulk frames follow, the highest code rate they will reach, and the message's check. After 150 ms of silence the bulk frames follow back to back, 5.44 seconds each. From the start of PRESENCE to the start of frame 0 is 1.45 seconds, so a one-frame transfer lasts 6.9 seconds and every further frame adds 5.44.

The bytes that travel are the 2-byte check followed by the wrapped message, cut into frames in order. Nothing else is added: a bulk frame has no header of its own (Section 16.3).

15.4.1 The rate ladder

Every bulk frame is one error-correcting codeword of the same length, so every frame takes the same air time (Section 9.4). What can differ is the code rate: how much of the codeword is message and how much is protection. There are three rates. A frame at rate 1/2 carries 603 bytes, at rate 3/4 it carries 907, and at rate 5/6 it carries 1,008 (Appendix A has the table).

Which rate a frame uses is decided by its position in the transfer and by nothing else. This is the rate ladder:

• frame 0 is always rate 1/2,
• frame 1 is rate 3/4,
• frame 2 and every later frame is rate 5/6,
• except that no frame goes above the ceiling the RTS announced.

With a ceiling of 5/6 the rates run 1/2, 3/4, 5/6, 5/6, 5/6 and so on. With a ceiling of 3/4 they run 1/2, 3/4, 3/4, 3/4. With a ceiling of 1/2 every frame is 1/2.

From the ceiling and the frame count in the RTS a receiver knows, before the first bulk frame arrives, the rate of every frame, how many bytes each can hold and where they belong in the message. Nothing inside a frame says what rate it is.

15.4.2 Who picks the ceiling

The sender, and it uses only two values for a new transfer. A directed message that needs more than one frame, on a link the sender rates at +6 dB or better, gets a ceiling of 5/6. A message that fits in one frame gets 1/2 (it is frame 0 anyway), and so does every broadcast, which has no single link to judge by. The station tunes the ceiling no finer than that: a link is good enough for bulk or it is not. A ceiling of 3/4 only appears when lost frames are sent again (Section 16.5.2).

15.4.3 Why frame 0 is the most robust

The first frame matters more than any other, for two reasons. It is the frame the receiver fixes its timing on: every later frame is looked for at an exact distance from where frame 0 was found (Section 13.8.2). And its first two bytes are the check for the whole message, without which nothing that follows can be accepted. A receiver that does not find frame 0 decodes nothing of that transmission. So frame 0 always gets the strongest protection the code offers, whatever the ceiling, and the rates climb from there.

The climb costs no air time, only bytes: the first two frames of a transfer carry 506 bytes fewer than they would at 5/6. What happens when frame 0 is lost all the same is in Section 16.5.5.

15.4.4 How big it can get

A transfer is at most 64 frames, which is also the number of frames one reply can name as missing. With a ceiling of 5/6 that is 603 + 907 + 62 × 1,008 = 64,006 bytes, two of them the check: 64,004 bytes of wrapped message, and close to six minutes of sending. A single frame at rate 1/2 holds 601 bytes of message.

A transfer longer than 10 frames is sent in segments of 10, each its own transmission, and the addressee confirms what it has after each one (Section 16.7). A broadcast has nobody to confirm anything, so a broadcast is held to one segment at rate 1/2: 10 × 603 bytes less the check, 6,028 bytes of message.

15.5 How the station chooses

When you send, the station's transmission policy looks at a handful of facts and picks one of four answers: shortburst, longburst, bulk, or unsupported (not directly, not now).

15.5.1 What it looks at

• Size: the wrapped message, in bytes.
• Broadcast or not: whether it goes to one station or to a reserved "everyone" address ().
• The link estimate: the station's recent figure for how well the addressee hears it (Chapter 18). It is held against two levels. Below −5 dB, the floor, even the announce modem fails. At +6 dB or above the link is good. A link with no estimate is not good: the station never bets a bulk transfer on a path it has not measured. A broadcast never has an estimate.
• Is the bulk region taken? Whether another station's transfer has it reserved at this moment.

15.5.2 The rules, in order

The policy is a list checked from the top. The first rule that fits decides, and the station records which one it was.

Three things about the order are worth noticing. A small message beats a bad estimate (rule 1): an estimate can be minutes old and caught in a fade, and refusing a cheap shortburst because of it would make a bad estimate worse than none. If the addressee really cannot hear, the silence is dealt with in the ordinary way (Section 16.6). The longburst of rule 2 is sent once: if its first piece goes unanswered, the station goes straight to asking for a relay. And a taken bulk region only steers messages that fit a shortburst anyway (rule 6); a bigger one waits its turn.

15.5.3 Broadcasts

With no estimate, a broadcast is treated as an unknown path. Up to 156 bytes it goes as a shortburst (rules 4 and 5). Past that there is no longburst to fall back on, so it goes as bulk at rate 1/2 throughout (rule 8). Stations on weak paths may not hear it; that is the trade a large broadcast makes.

15.5.4 Where shortburst gives way to bulk

On a good link, why not send everything over 60 bytes as bulk? Because one bulk frame costs 6.9 seconds of air whether it carries 1 byte or 601. A shortburst costs 2.0 seconds plus 0.66 seconds for each 10 bytes after the first 6. The two lines cross at 76 bytes: an eight-frame shortburst takes 6.6 seconds, and the nine frames that 77 bytes need take 7.3.

The station keeps using the shortburst a little past that point, up to 100 bytes (rule 7), where it takes 8.6 seconds, 1.7 more than the bulk frame. For that small cost the message rides the modem that still decodes 11 dB below the level at which bulk is trusted, and it occupies one narrow announce channel instead of the whole bulk region. Past 100 bytes on a good, free link the single bulk frame wins, and the gap grows quickly: a 156-byte shortburst takes 11.9 seconds against bulk's 6.9.

15.5.5 When the answer is "unsupported"

Unsupported means the station will not send the message directly right now, because nothing it could send would work: the path is below the floor, or the message is bigger than a longburst and the path is too weak for bulk, or it is a broadcast over 6,028 bytes. It does not have to mean the message goes nowhere.

• Plain (unencrypted) mail to one station is handed to the mail system first. A station that is itself an internet gateway deposits the mail at the mailserver; otherwise, if it has heard a gateway in the last two minutes, it sends the mail to that gateway ().
• Anything else, and mail with no gateway to go to, is marked failed, with the rule that refused it and the message's size before and after compression in the note (Chapter 6).

15.6 Four sends, four answers

• A 40-byte text to a station at +12 dB. Rule 4: a shortburst of five data frames, seven frames on the air, 4.6 seconds.
• A 140-byte note to the same station, bulk region free. Too big for rule 7, link good: rule 10, one bulk frame at 1/2, 6.9 seconds against 11.2 as a shortburst.
• A 400-byte report to a station at +2 dB. Above the floor but not good: rule 11, a longburst of three pieces (156, 156 and 88 bytes), 32 seconds of sending.
• A 3,000-byte mail. To a station at +10 dB: rule 12. With the check it is 3,002 bytes, which fill frames of 603, 907 and 1,008 bytes and leave 484 for a fourth: four frames at 1/2, 3/4, 5/6, 5/6, and 23.2 seconds (1.45 plus four times 5.44). To the same station at +2 dB: rule 13, unsupported, and the mail goes to a gateway if there is one.

15.7 What to remember

• Shortburst: up to 16 announce frames and 156 bytes in one transmission. Longburst: 157 to 601 bytes as up to four acknowledged shortbursts behind a manifest, only for links too weak for bulk.
• Bulk: PRESENCE and RTS, 150 ms of silence, then up to 64 frames of 5.44 s. Position sets the rate: 1/2, then 3/4, then 5/6 (603, 907 and 1,008 bytes), never above the ceiling in the RTS.
• Frame 0 is always rate 1/2, because the receiver fixes its timing on it and it carries the check.
• The station picks by size, link estimate (floor −5 dB, good from +6 dB, unknown counts as not good), broadcast or not, and whether the bulk region is taken. Shortburst and bulk cost the same air at 76 bytes; the station switches at 100.
• "Unsupported" means not directly, not now: mail tries a gateway, anything else is marked failed with the reason.

16.1 The promise: all of it, or none of it

On HF some of what is sent will be lost, and there has to be a plan for getting it back. The general name for that plan is ARQ (automatic repeat request): the receiver reports what it did or did not get, and the sender repeats what is needed. mLink's selective version is called dARQ, and it has three habits:

• Check once, at the very end. Each frame has its own error correction (Chapter 9), but "is this the message that station sent to this one?" is asked once, when the whole message is back together.
• Repair, don't repeat. The receiver keeps what it has, and the sender sends only the missing bytes.
• Never shout into silence. If the other station stops answering, a big transfer is not repeated blindly; the message goes looking for another way there.

16.2 The check, and the message's name

Every message carries a two-byte integrity check. It is a CRC (cyclic redundancy check): a short number computed from a block of bytes, so that changing any byte almost certainly changes the number.

16.2.1 What it covers

The unusual part is what goes into it. mLink computes the 16 bits over three things, in this order:

1. the sender's callsign, in its packed six-byte form,
2. the addressee's callsign, also six bytes, and
3. the message itself, as it stood before the station compressed it and put the wrapping bytes of Chapter 21 around it.

For a broadcast to everyone, or to everyone in an area, the "addressee" is the all-stations address 0CQCQCQ; for a virtual net it is the net's own address. Every station knows those, so every station can compute the same value.

Folding in both callsigns turns "are these bytes intact?" into "are these the bytes that station meant for this one?". mLink's data frames carry no sender and no sequence number, and if a frame from somebody else's conversation were ever stitched into a message, the check would come out wrong.

16.2.2 The same two bytes are the message's name

Because the check is computed before compression, the same message gets the same value however it was packed for the trip. So the value doubles as the message's short name on the air. The opening frame of a transfer carries it; the ACK repeats it; so do the frames that ask about a transfer, cancel one, continue one, or ask other stations to relay it (Chapter 19).

Sixteen bits make only 65,536 names, and nothing treats the two bytes as unique on their own. A station reads them together with who is speaking and who was addressed: an overheard message is filed under sender, addressee and check together. Where a mix-up would cost the most, when another station offers to relay "that message", the offer also quotes the length of its copy and a 32-bit fingerprint of it, and the sender compares both.

16.2.3 Where it rides

The check goes out twice: in the opening frame (the RTS of a bulk transfer, the shortburst RTS of a short message), so listeners know which message is coming before any data is decoded; and at the front of the data. A bulk transfer's bytes begin with the two check bytes. A shortburst's frame 0 begins with the two-byte length and then the check.

A longburst (Section 15.3) has two levels. The whole message's check, its name, rides in the manifest. Each piece also carries a check of its own, over just that piece's bytes as they were sent, so a bad piece is caught and repaired before the next goes out.

16.2.4 Checked last, and only last

A receiving station never tests the message's check frame by frame. It waits until it holds every byte, undoes the wrapping (decompression first), computes the value over sender, addressee and the unwrapped message, and compares it with the two bytes from the front of the data.

• Match: the message is delivered, and if it was addressed to this station, the station owes the sender an ACK.
• Mismatch: the message is thrown away, never delivered and never acknowledged. The addressee stays silent, and the sender's rules for silence take over (Section 16.6).

One damaged message in 65,536 would pass a 16-bit check by luck, but the check is rarely handed damaged bytes at all: every frame has already passed its own error correction, which rejects a frame it cannot fix.

16.3 Bulk frames have no header: position is the header

A bulk data frame has no "frame 7 of 12", no callsign, no length, no rate. Every bit is message, end-of-data filler (Section 9.5) or parity. Both ends work out what a header would have said from three things explained elsewhere:

• Whose frames they are comes from timing: frames that follow a PRESENCE and an RTS at the right moments belong to that station's transmission (Chapter 14).
• Which frame is which comes from where it starts. Every bulk frame lasts 5.44 seconds, so once frame 0 is found, frame i can only start i frame-lengths later (Section 13.8).
• Its rate and how many bytes it holds come from its number and the ceiling in the RTS (Section 15.4.1).

So the receiver lays out the whole transfer before it arrives: a buffer with a slot for every frame. The last frame is usually only partly full, and its filler marks where the data ends, so the length of the message is never sent as a number.

16.3.1 Why a lost frame changes nothing

Losing a frame does not disturb any other. If frame 3 of 8 fades out, frame 4 still arrives where it was due, decodes at the rate its place implies, and drops its bytes into its own range of the buffer. The gap where frame 3 belongs is simply a gap.

16.3.2 Shortbursts are numbered

The frames of a shortburst do carry their number, 0 to 15, and frame 0 carries the message length (Section 15.2). The rest of this chapter applies to shortbursts as to bulk, except where it says otherwise.

16.4 The answer: ACK or dNAK

When a directed transfer ends, the addressee answers with one of two replies, each a single announce frame behind a PRESENCE that says who is answering. The layouts are in Appendix B.

16.4.1 When the answer comes

A station cannot hear while it transmits (Section 3.5), so the addressee must not answer before the sender has stopped, and it knows when that will be. For a bulk transfer the RTS gave the frame count, so the transmission ends 150 ms plus that many times 5.44 seconds after the RTS. The addressee adds half a second for the sender's radio to drop out of transmit and settle, and a further 150 ms of turnaround. Then it decides: complete means ACK, incomplete means dNAK.

A shortburst that arrived whole is acknowledged as soon as its last frame has been decoded; one with frames missing is answered half a second after its computed end.

A reply never waits for the channel to look clear. The sender is listening for it, so it is keyed at its moment whatever reservations the addressee has noted and whatever else it is hearing (Chapter 17).

16.4.2 ACK: "got it"

[presence][ack]

The ACK (acknowledgement) says the message arrived whole and passed its check. It carries no callsign; it repeats the check from the opening frame it answers, so the sender knows which transfer is meant. The ACK for a longburst piece also says how many pieces are still to come. For a message sent straight to its addressee, the ACK is what turns it to "sent".

16.4.3 dNAK: "here is what I'm missing"

[presence][dnak]

The dNAK, the selective negative acknowledgement, fills its frame exactly:

• a 64-bit map, one bit for each frame of the transmission just received, set where the frame did not arrive;
• for a bulk exchange, a round count: how many transmissions of this exchange the addressee has seen, the first being round 1;
• one bit saying whether the exchange is bulk or shortburst, so stations overhearing the dNAK know how much air the repair will take.

There is no room left for the check, and none is needed: a dNAK taken for the wrong exchange costs a repair nobody wanted, never a false "sent".

A dNAK can name every frame. That happens when the addressee decoded the RTS but none of the data, which includes the case where frame 0 was lost and nothing after it could be placed (Section 13.8.2). If the RTS itself was never decoded, the addressee does not know a transfer was aimed at it and says nothing. The same goes for a shortburst whose frame 0 was lost: without the length it cannot say how many frames it missed.

16.4.4 Where replies are sent

ACKs and dNAKs carry no "to" callsign. What ties a reply to its exchange is where and when it appears. The addressee keys its reply on the channel the opening frame arrived on: the bulk-control channel for a bulk transfer (Section 8.5.1), and for a shortburst, whichever announce channel it used. A reply is never moved to another channel because that one looks busy.

The sender accepts a reply only on its own exchange's channel, only from the station it addressed, and, for an ACK, only with the right check. A station can be the addressee of two transfers at once, and without these rules both senders could take one ACK as their own.

16.4.5 How long the sender waits

When its transmission ends, the sender opens a reply window of 5 seconds: the half second of settling, the 150 ms of turnaround, 1.3 seconds for the two-frame reply itself, and about 3 seconds for the addressee to finish decoding, build the reply and key its radio. The window is the same for every size of transfer.

The window is not stretched when other stations hold the announce channels reserved. The addressee's reply does not wait for a reservation (see below), so a busy frequency is not what delays it.

16.5 Selective repair: sending only what is missing

16.5.1 The receiver keeps its partial copy

The addressee does not throw away the frames it did get. It keeps a kept partial: the message buffer with every received frame's bytes in place, holes where the missing ones belong, and a note of which byte ranges are still empty. It holds this for 10 minutes, starting the clock again each time a repair round arrives, and then discards it.

16.5.2 The sender gathers only the missing bytes

The sender still has the whole message. From the dNAK's map it works out which byte ranges those frames carried and copies just those ranges, in order, into one new stream. That stream is cut into fresh frames on the same rate ladder as any transfer, starting again at rate 1/2.

The ceiling for the repair is one step more robust than the most robust frame that was lost. If only 5/6 frames were lost, the repair climbs no higher than 3/4. If a 3/4 frame was among them, every repair frame is 1/2. The path could not carry that rate, so the repair asks for less.

[presence][retx-rts][bulk 0][bulk 1]...

The repair's opening frame, the RETX-RTS, has the layout of an RTS and carries the same check, but marks what follows as a repair. An addressee holding a kept partial from this sender uses the frames to fill it; a station without one ignores them.

16.5.3 The receiver fills the holes in order

The repair frames were cut from one stream of missing pieces, so their edges do not line up with the original frames. One repair frame may carry the end of one hole and the start of the next. Both ends hold the same map of which byte ranges were gathered and in what order, so the receiver simply writes each repair frame's bytes into the first unfilled hole and, when that is full, carries on into the next.

Only the addressee does this. A third station that overheard part of the message does not use the repair frames to complete its copy: to hold the message, as a future relay must, it has to have heard every frame of the first transmission.

When every hole is full, the receiver checks the message exactly as it would one that arrived in one piece, and on a match delivers it and sends the ordinary ACK.

16.5.4 Round after round

A repair can lose frames too. The addressee then writes in the repair frames that did arrive, works out which byte ranges are still empty, and sends another dNAK. That dNAK's map names frames of the repair, not of the first transmission. The sender kept its map of which original bytes went into each repair frame, so it translates back, gathers what is still missing, and packs it again from rate 1/2.

After the first round the holes stop being whole frames. In the figure, if repair frame r1 were lost, the holes left would be the last 405 bytes of frame 2 and the 500 bytes of frame 4, and the next repair would carry those 905 bytes as two rate-1/2 frames. The dNAK stays a simple map of frames while the repair stays exact to the byte, and nothing that has arrived is ever asked for again.

The round count keeps the two ends in step. If the addressee's count shows it never heard the latest repair at all, the sender sends that repair again exactly as it was, instead of reading the map against the wrong round. It does that once. If the second copy also goes unheard, the message goes to relay.

16.5.5 When a rate-1/2 frame is lost

There is no fixed limit on the number of rounds. What ends them is this rule. Rate 1/2 is the most robust bulk rate, so when a dNAK names a frame that was sent at 1/2, "one step more robust" has nowhere to go:

1. The first time in an exchange, the sender repairs anyway, with every frame at rate 1/2. The dNAK shows the addressee can hear the sender, and one lost 1/2 frame is more often a collision or a noise burst than a path that has collapsed.
2. The second time, the sender sends no more data and asks other stations to relay the message (Chapter 19).

This is also what happens when frame 0 is lost. Frame 0 is always rate 1/2, and the addressee's dNAK then names every frame. The sender does not repeat the first transmission as it was: it packs the whole message into rate-1/2 frames and sends that as a repair, once.

16.5.6 Shortbursts and longbursts

Shortburst repair is the same idea, simplified. The dNAK names the missing announce frames; the sender sends just their bytes as a new, shorter shortburst behind a repair version of the shortburst RTS; the receiver fills its holes. There is only one announce rate, so there is no rate to step down and no rule to end the rounds: every dNAK gets a repair. Each piece of a longburst is an ordinary shortburst with its own ACK or dNAK and its own repairs, and the ACK for one piece invites the next.

16.6 When the other end goes quiet

Sometimes the reply window closes with neither an ACK nor a dNAK. Replies ride the announce modem, which decodes far below the level bulk needs, so silence rarely means "the reply was lost". It usually means the addressee never heard the opening frames, is not there, or cannot be reached from here right now, and repeating the data fixes none of those.

16.6.1 Short messages: try again, politely

A shortburst is a few seconds of announce air, so on silence the sender tries again, up to three more times. Before each retry it waits a random time, from nothing up to twice the length of the transmission plus about two and a half seconds, and it sends only when the exchange's announce channel is free and nothing is audible (Chapter 17 says why the wait is random). The same goes for each piece of a longburst. If every retry meets silence, the message goes to relay.

16.6.2 Bulk: never resend into silence

Bulk data is sent again only in answer to a dNAK, and then only the missing part. Silence leads down this path instead:

1. Ask once: "did you get that?" The sender sends a QSL probe, named after the ham "QSL?" (do you confirm receipt?): [presence][qsl]. It names the addressee and the message's check and carries no data. The sender then listens for between 8 and 9.5 seconds.
2. The addressee answers only from what it already holds. If it delivered the message, it sends the ACK again. If it holds a kept partial, it sends its last dNAK again. If it is still waiting for a transfer to end, it gives its verdict now. If it knows nothing of this message, it stays silent.
3. Still silence: ask for a relay. The sender asks any station that holds the message and hears the addressee to carry it the rest of the way (Chapter 19).

16.6.3 One fresh attempt, when nobody at all answers

There is one narrow exception to "never resend bulk". A station can only hold a copy of a bulk transfer if it decoded the RTS. If the request for a relay gets no offers at all, the likeliest story is that the RTS was lost for everyone. In that one case the sender makes exactly one fresh attempt at the whole transfer, after a random wait and when the bulk region is free. If that also meets silence, it probes and asks for a relay as before, and a second empty search leaves the message waiting as deferred (Chapter 20).

The fresh attempt is not made when the message went to relay after a second lost rate-1/2 frame or a repair that went unheard twice: the addressee had answered, so the opening frames plainly got through. And when other stations have been heard in the last two minutes, an empty search is also read as a sign of collisions, and the station spaces out its new bulk transfers for a while (Chapter 17).

16.7 Long transfers: segments and checkpoints

A bulk transfer can be 64 frames, close to six minutes of air, and a sender should not learn only at the end that the addressee faded out in the first minute. So a transfer longer than 10 frames is split into segments of at most 10 frames (54 seconds), each its own transmission.

16.7.1 How the segments are sent

The first transmission opens with the ordinary RTS, which announces the total frame count, and carries frames 0 to 9. Each later segment has a continuation frame in place of the RTS:

[presence][seg-rts][bulk 10]...[bulk 19]

The SEG-RTS says which frame the segment starts at and how many it holds, and repeats the addressee and the check. Each frame still uses the rate its place in the whole transfer implies; for assembly and repair it is one transfer.

16.7.2 "Did you get all that?"

Half a second after each segment but the last has ended, the addressee sends a checkpoint, [presence][ckpt]. It says either "everything so far arrived" or gives a 64-bit map of the missing frames, counted over the whole transfer, and it says how many frames the addressee has been told about. The sender waits for it before keying the next segment. Then:

• If frames are missing, the sender first sends them again, at their original places and rates, as a short segment of their own. Each frame gets one such early repair; the rest is left to the dNAK rounds at the end.
• If the addressee has been told about fewer frames than the sender has sent, a whole SEG-RTS was lost, and the sender counts every frame of that segment as missing.
• If no checkpoint arrives within 8 seconds of the segment ending, the sender sends a QSL probe asking for it and waits 8 seconds more. If that too meets silence, it sends no more segments and treats the transfer as one whose reply never came (Section 16.6.2).

After the last segment the addressee answers with the ordinary ACK or dNAK. An addressee that hears a segment and then no continuation waits about 30 seconds before it gives its verdict on what it has.

16.8 Broadcasts get no receipts

Everything above is about messages to one station. A broadcast, whether to everyone, to an area or to a virtual net, gets no ACK and no checkpoint: a dozen stations answering at once would bury each other. That holds for everything sent as a broadcast, a map object as much as a bulletin. Listeners still check a broadcast before delivering it. A broadcast does get one limited repair: listeners who missed frames may ask, after a random wait, for them to be said again, and the sender answers the requests it hears with a single repair. One round and no more (Chapter 17). A net control that needs to know who received a bulletin asks with a roll call (Chapter 22).

16.9 Calling off a transfer

An operator can cancel a message while it is on the air or while the station waits for the reply (Chapter 5); it goes back to the drafts. A directed transfer on the air can be stopped two ways:

• Graceful. Partway through an announce frame, the station finishes that frame (at most 0.64 s more), so listeners are not left holding half a frame; in the bulk frames it stops at once. Then it sends [presence][abort], an ABORT frame carrying the message's check. Every station that hears it lets go of the reservation the transfer held and drops what it had overheard; the addressee drops what it had received and sends no dNAK.
• Hard. The station stops transmitting on the spot, even mid-frame, and sends nothing more. Other stations recover on their own timers: reservations run out when the transfer would have ended, and the addressee answers a sender that has stopped listening.

16.10 What to remember

• Every message carries a 16-bit check over sender, addressee and the message before compression, and the same two bytes are its name on the air. It is checked once, after the wrapping is undone; a mismatch is never delivered and never acknowledged.
• The addressee answers on the channel the transfer opened on (for bulk: 0.5 s plus 150 ms after the transmission ends): ACK if complete, dNAK with a map of missing frames if not. The sender listens for 5 seconds.
• The receiver keeps what it got, and the sender packs only the missing bytes, from rate 1/2 up to a ceiling one step more robust than the most robust frame lost. A lost 1/2 frame, frame 0 included, gets one repair; a second sends the message to relay.
• Shortbursts retry three times after random waits. Bulk is never resent into silence: one probe, then a relay, and one fresh attempt only if no station offers.
• Transfers over 10 frames go in segments with a checkpoint after each. Broadcasts get no ACK, only one round of "say again".

17.1 Five pieces of air

A station that is transmitting cannot hear (Section 3.5), but a station that is listening decodes the whole passband at once (Section 13.3). Two stations can hold two conversations on two announce channels while a third sends a file in the bulk region, and your station hears all of it. The rules in this chapter let several conversations run side by side without two of them landing on the same piece of spectrum at the same moment.

There are five pieces to share: the three announce channels, the bulk region, and the bulk-control channel at the centre of the bulk region (Section 8.5.1). The emergency region is not shared this way; distress traffic has it to itself (Chapter 23).

17.2 Defer: honouring what you heard

Before a station sends anything substantial, it announces it. A bulk transfer opens with [presence][rts], a shortburst with [presence][sb-rts]. Those openers tell the addressee what is coming, but every other station hears them too, and each one says, or implies, how long the transfer will occupy which piece of spectrum.

A station that hears an opener meant for someone else writes down a "busy until" time for that piece of spectrum and starts nothing of its own there until the time has passed. mLink calls this defer. Wi-Fi (IEEE 802.11) calls the same idea the NAV (network allocation vector), or virtual carrier sense: instead of listening for a carrier, you believe what the other stations announced about their plans.

No round trip is involved. The addressee does not grant anything and nobody says "go ahead". A heard opener is the reservation.

17.2.1 One busy-until time per piece of spectrum

A station keeps four busy-until times: one for each of the three announce channels, and one for the bulk region as a whole. There is only one bulk modem per channel, so two bulk transfers at once would always collide.

The bulk-control channel has no time of its own. It carries only the announce-type frames of bulk exchanges, so the bulk region's time governs it: a new bulk opener waits for the bulk region to be free, and the replies that follow on the bulk-control channel belong to the exchange that holds the region.

Each reservation is therefore narrow. A shortburst heard on one announce channel keeps a station off that channel and nowhere else. A bulk transfer keeps it out of the bulk region, yet it may still send a short message on a free announce channel. The few holds that stop the whole station are called out where they appear below.

Two rules keep the bookkeeping safe. A new reservation can only move a busy-until time later, so two overlapping reservations leave the later end standing. And a busy-until time simply runs out: once the clock passes it, the spectrum is free again with no further message. The one frame that releases a reservation early is the ABORT a station sends when it calls off a transfer (Chapter 16).

17.2.2 What each heard frame reserves

A worked example: a five-frame bulk transfer reserves the bulk region for 0.15 + 5 × 5.44 + 0.5 = 27.85 seconds from the moment its RTS is decoded. The 0.15 seconds is the silent gap between the RTS and the first bulk frame; the half second at the end covers the sender's radio dropping out of transmit.

A long transfer goes out in segments of at most ten frames, each its own transmission (Chapter 16). The RTS announces the total but reserves only the first segment, 55 seconds at most; each later SEG-RTS reserves its own. A station that hears only the opening does not lock itself out for six minutes on the strength of a transfer that may stop after the first minute.

A shortburst RTS does not say how long the shortburst is, so a listener reserves the channel for the longest possible one: ten seconds at most, on one announce channel out of three.

A virtual net's roll call reserves its announce channel in the same way, for as long as the roll call runs (Chapter 22).

17.2.3 Stations you cannot hear

Defer only works for stations you can hear. On HF, with skip zones and one-way fades, two stations often hear the same third station perfectly well and not each other. Radio engineers call this the hidden station problem (in Wi-Fi, the "hidden node"), and it is the main way reservations fail.

mLink uses the replies to cover part of it. If you cannot hear station A but can hear station B, you still hear B's dNAK asking A for a repair. A dNAK names the missing frames and says whether the exchange is a bulk one, so you reserve the time A's repair will take even though you will never hear A's opener. If you did hear A's RTS, you work out the repair's length the way A will; if not, you assume the longest it could be, five frames for every three missing. A longburst works the same way: the addressee's ACK for one piece says more are coming, so a station that cannot hear the sender still keeps that announce channel clear for the next piece. Wi-Fi does this job with a "clear to send" frame; mLink gets it from replies that are sent anyway.

17.3 Picking a channel

A station with a shortburst or a chain of announce frames to send chooses one of the three announce channels at random from the ones that are free. A channel is free when nobody's reservation on it is still running and the station is not in the middle of hearing a chain of frames on it. A queued message is released only once at least one announce channel is free.

Random, and not "always the lowest free channel", matters when several stations are ready at once: two of them often land on different channels and both get through.

That is the rule for messages, for relay and mail housekeeping frames, for most named-net frames, and for the periodic beacon. The exceptions:

• Bulk openers go on the bulk-control channel, and only once the bulk region is free. Their repairs, segment openers and "did you get that?" probes follow them there, and the addressee's replies come back on the same channel.
• Replies (ACK, dNAK, checkpoint) go on the channel the exchange opened on, because that is how the sender tells whose reply it is (Chapter 16). A reply is never held back for lack of a free channel, and it ignores reservations.
• Announcements a station chooses to start pick a free announce channel at random and wait until one is free: a position report (the automatic one and one sent by hand), a beacon the operator asks for, a geopoll, net control's anchor in a virtual net and a member's repeat of it, and a request for internet data and the answer to it.
• Answers to a SEED or a geopoll use the channel their own callsign selects (Section 18.4).
• A frame whose time has come with no channel free takes the channel whose reservation ends soonest. Queued messages never get that far; they wait in the queue for a free channel.

The periodic beacon is more careful than a message in one further way: it also avoids an announce channel where the receiver detected an mLink-shaped signal in the last 1.5 seconds but could not decode it. Someone is keying there, even if this station cannot read them. If no channel passes, the beacon waits.

17.4 Who goes first

A station often has more than one thing it could send. The transmitter itself knows three grades of traffic. Distress traffic and owed replies key even while the receiver is in the middle of a frame; everything else waits for the receiver to finish. On top of that, each kind of voluntary traffic has its own conditions, and together they give a clear order.

Row 1 is a transmit priority and nothing more. A distress call does not cut off a transmission the station already has on the air, and it does not silence other stations. What it does change is the station's own routine traffic: while its distress call is active, its queued messages and beacons wait, so that the station is listening between repeats for the acknowledgment (Chapter 23).

17.4.1 Replies beat new traffic by construction

When a bulk transfer ends, its addressee replies about two thirds of a second after the sender stops (Chapter 16). Every station waiting to start a new bulk transfer must wait at least 2 seconds after the reservation ends, plus a random amount. The reply is therefore on the air and decoded before any newcomer's earliest moment, and the reply's own frames extend the reservation again.

The same courtesy runs the other way. When the addressee acknowledges one longburst piece and more are coming, or sends a shortburst dNAK that invites a repair, it holds all of its own voluntary traffic for 3 seconds, on every channel, so the sender it just invited can get the next transmission started.

17.4.2 Crossing calls

Now and then two stations call each other at almost the same moment. Each keyed before hearing the other, so each is waiting for a reply that will never come, and left alone they would give up together and try again together. mLink breaks the tie by listening while it waits. A station waiting for a reply that hears a call addressed to it takes the call and answers it. Its own transfer is set aside and tried again, after a random delay, once the incoming exchange is finished.

17.5 Listening before talking

Reservations cover traffic whose opener was heard. They do nothing about a station that keys up just as you do. So a station also listens to the air itself before it starts anything voluntary, whether a message, a relay offer or a beacon. It will not start while either of these is true:

• the receiver is collecting or decoding a frame on an announce channel, the bulk-control channel or the bulk region (Section 13.6.1), or finished one less than 0.6 seconds ago. The gap between one frame of a chain and the next is shorter than that, so a chain in progress keeps the station held;
• the latest reading of the audio level, taken within the last 0.2 seconds, is 6 dB or more above the station's measure of the quiet noise floor. That catches a signal that has just started, before any decoder has recognised it, and signals the decoders cannot read at all.

The level is measured over one block of received audio, 512 samples or about 43 milliseconds, and each block gives a fresh reading. The floor it is compared with follows quiet blocks quickly and climbs only slowly, so steady band noise does not keep a station off the air, but a new signal stands out.

17.5.1 The last check before keying

The decision to send is made a fraction of a second before the transmitter keys, because the audio has to be prepared first, and a signal that started in between would go unnoticed. So for the opening transmission of a message (first attempt or retry) and for a relay offer, the transmitter looks once more at the very moment it is about to key. It uses the same one-block level reading and the same 6 dB test, and this time the reading must be no more than 0.1 seconds old. If the air has become busy, the transmission is not sent. A message goes back to the head of the queue, a retry waits again, and a relay offer picks a new time.

Owed replies and distress traffic skip all of this. A reply is timed to land in a moment the exchange already owns, and holding it back because of noise would only make the sender give up on a transfer that worked.

17.5.2 The race that cannot be closed

Even with all that listening, a small window stays open. Two stations that decide to key within about a tenth of a second of each other (one block of audio plus the time for a transmitter to come up) cannot yet hear each other. Add hidden stations, which no amount of listening reveals, and collisions on a busy channel are a fact of life. mLink accepts that. It keeps the window small, makes sure stations that collided once do not collide again the same way (Section 17.7), and relies on Chapter 16 to recover what a collision destroys.

17.6 How long to listen to someone else's transfer

Listening has a price. Every mLink station tries to decode the directed bulk transfers it overhears, so that it holds a copy if the sender later asks for a relay (Chapter 19), and a station that is collecting a frame will not key. Left at that, every bulk transfer would silence every station within earshot for its whole length, about 22 seconds for four frames, as if only one station could talk at a time.

mLink settles it by asking what the overhearing station's relationship to the traffic is, which it knows the moment the RTS is decoded.

• The transfer is for you. You receive it, and your own new messages wait.
• The transfer belongs to a net you can hear. A station that hears a virtual net, whether member, net control or bystander, keeps listening to the net's transfers for their whole length and holds its own messages and beacons until they end. The members are each other's relays (Chapter 22).
• Anyone else's transfer. Here the first-frame rule applies. The station listens, holding its own messages and beacons, until it knows whether it can read this transfer at all: about eight seconds after the RTS, time for the first 5.44-second bulk frame to arrive and be decoded, with a margin. If the first frame decoded, the station keeps listening and holding to the end; a copy it can read is worth keeping. If the first frame failed to decode, or the receiver never found it, the station stops overhearing. It switches its bulk detector off for this transfer and lets its own announce-band traffic go, after the same random wait every station takes when the air clears.

Stopping is not the same as stepping on the transfer. The reservation the RTS made still stands, so the station stays out of the bulk region; what it may use is an announce channel. Two more courtesies go with it. The station does not call either party of the transfer while it is on the air: the sender is deaf, and a call to the addressee would pull it into a reply in the middle of receiving. Messages to anyone else, and broadcasts, go ahead. And while that transfer is on the air, the level test of the previous section is not applied: the energy filling the passband is explained by a reservation the station already holds. The cost is that a second, unknown signal starting in that time is caught only by the decoders and by reservations, not by level.

Letting every bystander talk during every transfer would throw away the copies that relays depend on; holding everyone for every transfer is the one-talker channel described above. Giving up only what a station could not have used costs nothing.

17.7 The random wait

The most dangerous moment on a shared channel is the moment it goes quiet. Every station that was waiting for the same reservation sees it end at the same instant, because they all worked it out from the same opener. If each keyed at once they would collide, wait out the same time limit, and collide again. The waiting itself would put them in step.

So wherever a station acts on a moment that other stations share, it first waits a random back-off: it picks a random time within a set limit and stays quiet until that time has passed. mLink's version has two twists:

• The limit grows with the crowd. Most limits are a fixed step multiplied by the number of stations heard in the last 30 minutes, counted between a lower and an upper bound, so a busy net spreads its stations over a wider span than a quiet one.
• Each wait is picked fresh. The time is worked out from the station's own callsign mixed with something about the event (the moment the reservation ended, the message's check value, the time the retry was set). Two stations that happen to land close together once are very unlikely to do so at the next event.

The first station to key is heard by the others, whose own waits have not yet run out; they decode its opener, record its reservation, and wait again. A pile-up becomes a queue.

17.7.1 Where the random waits are

In the table, the random part is the most the wait can be; the station picks a time anywhere from zero up to it. N is the number of stations heard in the last 30 minutes, held between the two bounds shown.

Some notes on the rows. In the first, only a recent change from busy to quiet counts: a message queued on a channel that has been quiet for a while goes straight away. In the third, every decoded frame, every undecoded detection and the station's own transmissions restart the clock, and stations keyed by VOX, whose transmitters are slower to come up, are placed behind all the others. The places in the fourth are long enough that a later station hears the earlier one's whole transmission before its own turn. And the station that sent an ACK waits long enough to hear the other one start.

Two more sets of slots are described with the things they answer: those for answers to a SEED or a geopoll (Section 18.4), and those for relay offers (Chapter 19).

17.7.2 Slowing down when the channel is jammed

Random waits spread stations out; they do not reduce how much everyone is trying to send. Under heavy load, collisions cause retries, relay searches and repairs, which are more transmissions, which cause more collisions. Left alone, that feedback can jam a busy channel.

So each station watches for one piece of evidence that it is part of the problem: a relay search for one of its own messages came back with no answers at all (Chapter 16), although it has heard some other station within the last two minutes. On a lively channel that almost always means nobody decoded its opener, which means a collision. Each time it happens, the station spaces out the large sends it starts: 15 seconds between them at first, doubling with each further piece of evidence, up to 10 minutes. Each large transfer that completes halves the spacing, and so does every minute without new evidence. Halved below 15 seconds, the spacing is gone.

Only traffic the station chooses to start, and only what is too big for a shortburst, is paced: new bulk and longburst transfers, and fresh attempts at ones that were held or set aside. Short messages are never held behind a paced transfer, and replies, repairs inside a running exchange, distress traffic and beacons are never paced at all.

17.8 Broadcasts: "say again"

A directed message that meets a collision has an addressee who will say what went wrong (Chapter 16). A broadcast has none, and a dozen listeners all sending dNAKs at the same instant would destroy each other. Yet a broadcast can lose a frame at one listener to a local collision while everyone else gets it cleanly. mLink handles this with a single, delayed say-again round:

1. A listener that received a broadcast incompletely keeps its partial copy, as it would for a directed transfer.
2. It waits one second, then a random number of places 2.25 seconds apart, then up to 0.45 seconds more (the say-again row of Table 17.3). Then, if the air is quiet, it sends a request shaped like a dNAK, [presence][dnak], on the broadcast's channel, naming the frames it is missing. The request is ordinary voluntary traffic, not an owed reply.
3. A listener that hears someone else's request covering all of its own missing frames stays quiet: the repair will carry its frames anyway.
4. The sender collects requests for 22 seconds after the broadcast ends. It then sends one repair, as a broadcast, holding every frame anyone asked for; a bulk repair is packed again at rate 1/2 like any repair. Each listener fills in the parts it needs.

If two requests collided at the sender, both listeners would wait forever. So each listener asks once more, about 35 seconds after its first request and at a freshly picked place, unless the repair has arrived in the meantime; and a sender that heard no requests in its 22 seconds keeps listening for another 60 before it concludes everyone got the broadcast.

There is only one repair round. It covers a broadcast sent as one bulk or one shortburst transmission, not a longburst sent in pieces, and it needs the listener to have decoded the opener. A listener still missing frames after the repair drops its partial copy.

17.9 What to remember

• Defer (Wi-Fi's NAV): a heard opener reserves one piece of spectrum, an announce channel or the bulk region, for as long as the transfer can last plus half a second. A bulk RTS reserves 0.15 s + N × 5.44 s + 0.5 s, for at most ten frames.
• Messages and the periodic beacon pick a free announce channel at random; bulk housekeeping uses the bulk-control channel; replies go back on their exchange's channel; position reports, geopolls, anchors and internet-data requests pick any free announce channel as well.
• Precedence: distress, owed replies, the exchange already under way, new messages, automatic traffic. Only the first two key while the receiver is busy.
• Voluntary traffic listens before it talks and checks the level once more as it keys. A tenth of a second, and hidden stations, remain.
• The first-frame rule: a station stops overhearing a stranger's bulk transfer about eight seconds after the RTS if nothing of it has decoded, and then uses the announce channels only, never calling the two stations involved.
• Every shared moment gets a random wait whose limit grows with the number of stations heard. Large sends are spaced 15 seconds to 10 minutes apart while a station's own relay searches come back empty.

18.1 Three sources of knowledge

mLink has no net control to keep a log of who is on frequency (Section 1.4), yet much of what a station does depends on knowing who is around and how well it hears them. So every station builds its own picture of the neighbourhood, from three sources:

• What it hears first-hand. Every transmission opens with a PRESENCE frame naming the station that is keying (Section 14.2). Each one your station decodes goes into its heard list, with the strength it arrived at.
• What it hears second-hand. Stations add a short "here is who I have been hearing" note to transmissions they were making anyway. Your station collects those notes into a map of who hears whom.
• A little deliberate speech. A station that has been quiet for a while sends a short beacon, and one that has just come up and hears nobody asks out loud whether anyone can hear it.

18.2 Coming up on frequency

mLink calls the start-up process convergence: the station arriving at the conclusion "this is a live mLink channel and I am part of it". It has up to four stages. None of them changes what the station can receive (it decodes everything from the first second) or stops the operator sending a message. They only decide when the station volunteers a beacon of its own.

18.2.1 Stage 1: listening

For the first ten minutes after start-up the station sends no beacons. A newly started station has no idea whether the frequency it was tuned to is quiet, busy with another mode, or in the middle of somebody's contact, and ten minutes of listening is how a careful operator would treat a strange frequency too. It is also usually all it takes: on a working channel somebody transmits within ten minutes, and the moment your station decodes a frame from another station it goes straight to the last stage.

18.2.2 Stage 2: seeding

If the ten minutes pass and nothing has been heard, the station starts to ask. It sends a SEED: a PRESENCE frame of a kind that means "I am here; can anyone hear me?" It is a single announce frame carrying the callsign and grid like any other PRESENCE, sent on a free announce channel.

The first SEED waits a random extra time of up to 16 seconds. A group of stations switched on together, at the start of an exercise or when power comes back, would otherwise all finish listening at the same instant and key on top of each other. After that a SEED goes out about every 90 seconds, each interval made up to 20 percent longer or shorter at random so that two stations do not fall into step.

A station that hears a SEED answers it with a SEED-ACK, another kind of PRESENCE. That answer is the point of seeding. An ordinary beacon tells others you exist; a SEED asks them to prove they heard you. It covers a case listening alone cannot detect: a station whose receiver is buried in local noise but whose transmitter works. Such a station would listen forever and conclude the band is dead. Hearing a SEED also counts as hearing a station for the one that answers, so both sides finish in the same exchange.

18.2.3 Stage 3: seeding slowly

If twenty minutes have passed since start-up and the station has still heard nobody, it stops seeding every 90 seconds and drops back to one SEED about every ten minutes. At that moment, once, it raises an advisory for the operator: check the antenna, interference, frequency and modulation. It does not give up. A station on a quiet frequency may simply be the first to arrive, and when the second one shows up the slow SEEDs make sure they find each other.

The operator can cut the listening stage short and have the first SEED sent at once. In any later stage the request does nothing, because there is nothing left to skip.

18.2.4 Stage 4: converged

The instant the station decodes a valid frame from another station (a PRESENCE, a SEED-ACK, a message opener, a relay frame) it is converged, whatever stage it was in. From here on it sends a beacon only when it has been quiet for a while.

18.3 Beacons

A beacon is a transmission that is a PRESENCE frame and little else: no message, no request, only "this is me, here".

18.3.1 AUTO and OPERATOR

Every PRESENCE says one of two things about the station behind it: AUTO, it is running unattended, or OPERATOR, a person is at the station. The operator sets which, and it costs no air time: the two are different kinds of PRESENCE, told apart by the frame's type byte (Section 14.3). The same mark rides on the PRESENCE at the front of every data transmission.

18.3.2 How often a converged station beacons

The rule is simple: a station beacons only when it has been silent for a long time. The beacon timer restarts every time the station keys a transmission that opens with its PRESENCE. A station passing traffic every few minutes therefore never sends a separate beacon; its traffic is its beacon.

How long "a long time" is depends on how crowded the net is. The base interval is ten minutes. Once a minute the station counts the stations it has heard recently (the "on the net" window in Section 18.9). With up to ten stations heard, the interval stays at ten minutes. Beyond that it grows by ten minutes for each further ten stations: 20 minutes with eleven to twenty heard, 30 with twenty-one to thirty, and so on up to an hour with more than fifty. Each interval also varies at random by up to 20 percent either way.

There is one exception. If the station has heard no traffic (any frame that is not a beacon or an answer to one) for ten minutes, it takes the band to have gone quiet and beacons at least every twenty minutes however many neighbours it has. That only changes anything on a frequency with more than twenty stations. A quiet band is when stations most need to find each other again, and when an extra beacon costs nobody anything. The rule looks only at traffic, so the extra beacons it causes cannot make the band look busy.

A beacon that comes due is a voluntary transmission and waits its turn like one: for the station to be idle, a free announce channel, quiet air, and the random wait after any activity (Section 17.7.1). Nothing is lost by waiting. A beacon the operator asks for by hand waits the same way and goes out once, however long that takes. A station set to listen only never beacons, and neither does one with no callsign set (Section 14.2.2).

18.4 Answering a question

Two kinds of PRESENCE are answers: the SEED-ACK that answers a SEED, and the answer to a geopoll (next section). When one station asks, everyone who heard the question wants to answer, and they all heard it at the same instant. If they all answered at once nobody would decode anything.

mLink spreads these reactive beacons out in both time and frequency:

• Time is divided into slots 750 milliseconds apart, a little more than one announce frame. There are nine, the first starting 200 ms after the question was decoded.
• Each answer goes on one of the three announce channels.
• Each station's slot and channel follow from its own callsign, so it always answers in the same place and two different callsigns usually land in different ones. That gives 27 positions.
• A SEED-ACK has four such blocks of nine slots in a row, 108 positions, so the last possible one starts about 26 seconds after the SEED. Being heard cleanly matters more there than being quick.
• Geopoll answers use a single block, so the last one starts about six seconds after the poll, and only stations inside the area answer.

There is also a limit on how many answers go out. While a station waits for its slot it counts the other answers it hears, on any channel. If three other stations have already answered, it stays quiet: the asker knows the channel is alive, and a fourth answer adds air time without adding information. A station in the middle of an exchange when its slot arrives answers once the exchange is over, and one whose receiver is busy with a frame waits a short random time and looks again. Answers are always a single frame.

18.5 Who is over there? Geopoll

A geopoll is the reverse of a beacon. Instead of "here I am", it asks "is anyone in this area?" The operator gives an area, a centre (a latitude and longitude, or a grid square) and a radius in kilometres, and the station sends one frame that carries that circle. It is a PRESENCE-family frame, but the circle takes the place of the callsign and grid, and it goes out alone with no PRESENCE in front, so a geopoll does not say who is asking (Section B.7). It is sent on any free announce channel once the air is clear, and has no time limit: if the band is busy for five minutes, the poll goes out in five minutes. Only one such request waits at a time; a newer one replaces it.

Every idle station that decodes the poll tests its own configured grid square against the circle. If the centre of its square is inside, it answers in its slot with a PRESENCE of the geopoll-answer kind, carrying its callsign and grid as usual. A station with no grid square set never answers, because it cannot place itself.

The kind of the answer matters to the station that asked. An ordinary beacon heard a few seconds after a poll might be a coincidence; a geopoll answer means that station heard the poll. Answers go into the asker's heard list like any other PRESENCE.

A geopoll only asks who is present. Sending a message to everyone in an area is a different thing (Chapter 28).

18.6 The heard list

The other half of finding each other is remembering what was heard. Each station keeps a heard list: one record per station it has decoded first-hand.

A record is created or refreshed by every PRESENCE the station decodes, of any kind: the one at the front of a transmission, a beacon, a SEED, a SEED-ACK, a geopoll answer. The four named-net frames that travel alone with the sender's callsign inside refresh it the same way (Chapter 22). A record holds:

• the callsign and grid square, and a rough position worked from the grid when nothing better is known;
• when the station was first and last heard, and how many frames have been heard from it;
• the signal-to-noise ratio of the latest frame, the best and worst seen, and the link estimate described below;
• whether it was showing the gateway flag.

Only first-hand decodes create records. Hearing somebody else mention a station, in a HELLO, a relay request or a message, never does.

The station forgets a record when it has decoded nothing from that station for three of its current beacon intervals, and never sooner than one hour: one hour with up to twenty stations heard, up to three hours on the most crowded frequency. Whatever shorter age limit a screen applies is a matter of display (Chapter 5).

18.6.1 The link estimate

Each decoded announce frame comes with a measured SNR (Section 13.9), on the SNR@3k scale like every figure in this book. HF signals flutter: one frame can arrive 6 dB down in a fade and the next 6 dB up. If the station decided things on the latest reading alone, a single fade could flip it from "send this as bulk data" to "this link is too weak" and back a minute later.

So alongside the latest reading it keeps a link estimate for each station: a running average in which the newest reading counts for 40 percent and everything older shares the other 60 percent, each earlier reading fading by the same factor again. The first reading starts the estimate as it stands. After that a single odd reading can move it at most 40 percent of the way, and three readings that agree carry nearly 80 percent of the weight.

Three rules decide what goes into the estimate and when it may be used.

• Readings taken around bulk traffic are left out. While the station has the bulk region marked as reserved (Section 17.2), and for eight seconds after that reservation ends, a decoded frame still counts as "heard" but its SNR is not added. The receiver's noise measurement takes a moment to settle after a long stretch of wideband data, and the reply frames that follow a transfer land in exactly that time; measured then, a strong station looks many dB weaker than it is.
• Five minutes is the limit. The estimate may be used only if the station was last decoded within the past five minutes. Older than that, the station is treated as having no estimate at all.
• The other station's own report wins. When your station is about to send to another, what matters is how well they hear you. If that station has said so in a HELLO (below), and the report describes hearing you within the past five minutes, the report is used. Otherwise your station uses its own estimate of how well it hears them, on the assumption that a path works about the same both ways. On HF that assumption often fails, which is why the report is preferred.

The figure that comes out is what a station grades a link on: when it chooses how to send (Chapter 15), and when it offers to relay (Chapter 19).

18.6.2 Gateways heard

A station that can reach its mail server says so with the gateway flag in its PRESENCE (Section 14.2.1). The heard list records the flag with the time it was last seen, and HELLO frames and relay offers pass it on second-hand, so a station can learn of a gateway it cannot hear itself. Hearing a gateway's PRESENCE is also the cue for mail that is waiting for one to try again (Chapter 24).

18.7 HELLO: sharing who you hear

The heard list tells a station who it hears. It says nothing about who they hear. For that, stations share notes in HELLO frames.

One HELLO is one sentence: "I recently heard this station." The "I" is whoever sent the PRESENCE at the front of the transmission, so the HELLO does not repeat it. It names the station heard and gives how many minutes ago it was last heard, the SNR in whole dB (the sender's link estimate for that station, or its latest reading if there is no estimate yet), whether that station was showing the gateway flag, and the class of the link, strong or weak. The layout is in Section B.11.

Strong means the SNR being reported is +6 dB or better, the level from which a station trusts a link with bulk data. So "strong" is more than "loud"; it means "I would send you bulk over this link". Weak means heard, but good only for the short, rugged traffic of the announce channels.

A station that is one radio of a cluster (Chapter 31) also speaks for the cluster's other radios. One HELLO in each transmission that carries any may name a station that only another of the cluster's radios hears, on another band for instance, marked as such. A listener keeps that as "reachable through this station", not as "on this frequency": it does not count toward who can hear whom here, but it tells a sender that a relay through the cluster can work.

18.7.1 HELLO never keys the radio by itself

A station never transmits just to send HELLOs. They ride only on transmissions that are happening anyway:

• up to two at the start of a new shortburst or bulk transfer, right after the PRESENCE: [presence][hello][hello][rts][bulk 0]…. A longburst, a repair and a reply carry none;
• up to three on the periodic beacon, on the automatic position beacon (Chapter 28), and on net control's anchor in a virtual net (Chapter 22).

At most one transmission a minute carries any. Each HELLO adds two thirds of a second, so the cost is at most two seconds of air time a minute, however busy the operator is. SEEDs and answers never carry one.

Only stations heard within the "on the net" window are advertised, so HELLOs describe the net as it is now. The station works through that list in rotation, starting each time where it stopped, so successive transmissions advertise different stations. On a directed transfer it skips the destination: the opener right behind names that station and tells every listener "I can hear this one".

18.8 The links map

Every HELLO your station decodes, and can tie to the PRESENCE in front of it, becomes one row of its links map: "reporter hears subject, strong or weak, at so many dB, so many minutes ago". A newer HELLO about the same pair replaces the row.

Three other frames also say something about who hears whom:

• A relay OFFER. A station volunteering to relay states its measured SNR to the destination (Chapter 19). That is as good as a HELLO and is recorded as one.
• An overheard opener. When station A opens a directed transfer to station B, A is plainly claiming it can hear B. Everyone who decodes the opener records "A hears B": strong for a bulk RTS, because A would not have chosen bulk on a weak link, and weak for a shortburst RTS, because short messages go at any strength. Openers of broadcasts record nothing.
• A relay RESULT that reports delivery. Relay and destination have plainly heard each other, so a row is recorded each way. This is the one source that reaches stations on the far side of a gap, who could never overhear the relay and the destination talking.

The last two are marked as inferred, because nobody measured anything. An inferred sighting refreshes a row's age and can raise it from weak to strong. It never turns a strong row weak and never replaces an SNR that someone measured.

The links map is strictly second-hand knowledge. It never creates or changes a heard-list record. A row that has not been refreshed for two hours is dropped, so stations that have left do not linger as ghost lines.

18.8.1 What the map is used for

The map feeds two things. One is the report already described: a row in which another station says how well it hears you grades your link to it, in preference to your own estimate. Only measured rows count for that, never inferred ones. The other is the operator's picture of the net: which stations can reach which, and where the gaps are.

Choosing a relay does not consult the map. A station volunteers only on the strength of its own first-hand hearing of the destination (Chapter 19).

18.9 How recent is "recently"?

Many parts of mLink ask "have we heard that station recently?", and they do not all mean the same thing by it.

One more interval is built on the beacon interval: how long a promise to act "next time I hear that station" must stay alive. That is the contact horizon, one and a half beacon intervals (Chapter 20).

18.10 What to remember

• A new station sends no beacon for ten minutes, then seeds about every 90 s, and after twenty minutes slows to every 10 min and tells the operator once. It is converged the instant it decodes any other station.
• A converged station beacons only after its own silence: every 10 minutes with up to ten stations heard, ten minutes more for each further ten, up to an hour, and at least every 20 minutes when the band carries no traffic.
• Answers to a SEED or a geopoll go in a slot and on a channel fixed by the answering station's callsign, and are held back once three others have answered.
• The heard list is first-hand only and forgets a station after three beacon intervals of silence, never less than an hour. Its link estimate weights the newest SNR reading at 40 percent, leaves out readings taken around bulk traffic, is good for five minutes, and gives way to the other station's own report of how it hears you.
• HELLO frames ride only on transmissions already happening: two on a new transfer, three on a beacon, on at most one transmission a minute. With relay offers, overheard openers and delivery reports they build the links map, whose rows last two hours.

The relay setting is on the Settings screen (Chapter 5), and the notes a relayed message shows in the outbox are listed in Chapter 6.

19.1 Why relay, and why this way

Two stations 400 km apart may have no usable HF path at the hour you want to send, while a third station hears both perfectly. Voice operators solve this all the time: "I can hear him, I'll pass it along."

mLink's relay does the same thing, and differs from classic packet digipeating in three ways:

• Nobody plans a route. There is no routing table and no path for the sender to spell out. The sender asks "can anyone help?" and the stations that can, say so.
• Relaying happens only when it is needed. A message goes direct first. Only when the direct attempt has met silence does the sender ask for help (Section 16.6 says exactly when). Stations never repeat traffic on their own initiative.
• The helper usually already has the message. Every mLink station keeps a copy of each message it overhears in full, including ones addressed to somebody else. A station that heard the original transmission already holds a copy, so the sender does not have to send it all again just to hand it over.

The handshake uses five frames of the RELAY family: REQUEST, OFFER, SELECT, FOR and RESULT. Each is one announce frame behind a PRESENCE that names the station sending it; their byte layouts are in Section B.10. They name the message by its 16-bit check value (Section 16.2.2), called the message's id in this chapter. We follow one message with three stations:

• A, the originator, who wrote the message;
• X, the destination, which A cannot reach;
• C, a station that hears both.

19.2 Step 1: REQUEST

The originator sends [presence][relay/request]. The REQUEST names the destination and the message id, and has one flag, explained under Section 19.7.2. It does not carry the message.

A REQUEST is something the station chooses to say, not a reply another station is waiting for, so it goes out on a free announce channel and waits its turn like any other new transmission (Chapter 17). The station remembers which of the three announce channels it used, because its SELECT will go out on the same one. Then it listens for OFFERs for up to 24 seconds.

A client can also ask the station to run this search for a stored message, naming the destination and the id. The search is the same, except that the station has no copy of its own to compare OFFERs against.

19.3 Step 2: OFFER

19.3.1 Who may volunteer

Every station that decodes the REQUEST asks itself three questions:

1. Do I hold the message? That means a complete, checked copy with this id, from this requester, to this destination. The REQUEST's PRESENCE names the requester and the REQUEST names the destination, so two unrelated messages that happen to share an id are not confused unless they also share both callsigns.
2. Can I hear the destination? The station must have decoded the destination within about the last half hour; the window grows when the stations on the frequency beacon less often (Section 18.9). A station whose last hearing of the destination is older than two minutes still answers, but stands four places further back in line (Section 19.3.4) and drops its OFFER as soon as it hears one other.
3. Does my relay setting allow it? See Section 19.9.

A station that passes all three still checks one more thing before it speaks: its link estimate toward the destination (Chapter 18) must be at least −5 dB. Below that figure its own sending rules refuse any directed transmission (Section 15.5.5), and an offer it would then refuse to honour would leave the originator waiting for nothing.

19.3.2 What an OFFER says

An OFFER fills its frame. Besides the message id it carries:

• the volunteer's link estimate to the destination, in whole decibels;
• a flag saying whether the destination was a mail gateway when the volunteer last heard it (Section 14.2.1);
• a flag saying "I do not hold the message; send it to me first" (see Section 19.7.2);
• the exact length of the copy the volunteer holds, and a 32-bit fingerprint of its contents.

The last two are for the originator, the one station that certainly knows the real message. It ignores any OFFER whose length or fingerprint does not match its own copy. The fingerprint is a different kind of sum from the 16-bit check, so two messages that share an id will almost never share it too.

Everyone else listening learns from an OFFER as well: it goes into their links map as a HELLO would (Chapter 18).

19.3.3 Spreading the answers out

A REQUEST is heard by many stations at the same instant. If every volunteer keyed at once, the originator would hear none of them. So each waits for a slot:

• There are nine slots, starting two seconds apart: 1.6 seconds each, which is longer than the 1.3 seconds an OFFER takes to send, plus room for a random extra delay of up to 0.4 seconds. A volunteer in the first slot answers almost at once. The latest possible OFFER starts 16.4 seconds after the REQUEST, which is why the originator listens for 24.
• A volunteer's slot and its extra delay are worked out from its own callsign, the message id, and the number of times it has already answered this requester about this message. Two stations that land in the same slot for one search will almost certainly land in different ones the next time the originator asks.
• OFFERs go on one of the two announce channels the REQUEST did not use. The REQUEST's channel is left clear for the SELECT, so a late OFFER cannot cover the decision.
• If a volunteer's slot comes up while it is receiving or the channel is busy, it waits a short random time and looks again.

With only a few stations able to help, that is all there is to it: the slot does not depend on signal strength, and the originator compares whatever offers arrive.

19.3.4 When many could help

Nine slots on two channels are plenty for three helpers and far too few for thirty. On a busy frequency, or in a large net, dozens of stations may hold the message and hear the destination. If they all drew a slot by chance, several would share each one and cover each other, and the originator might decode none of them. So a station that believes five or more could answer, itself included, does not draw by chance. It works out its own place in line.

• It starts in first place.
• It drops one place for every station that it knows hears the destination better than it does. It knows this from the hearing reports other stations send (Chapter 18) and from every OFFER it has overheard, since an OFFER states its sender's link to the destination. In a virtual net, on an equal signal the member with the lower member number is ahead.
• For the stations it hears and has no such report about, it cannot know. It draws its own place among them, from its callsign and the message id, as if they were all standing in the same line.

The place decides when it answers:

A station waiting for its slot counts the OFFERs it hears for the same request. When it has heard two, it drops its own unsent: two offers are enough for the originator to choose from, and a third would only take air time. It also drops its offer when it hears the SELECT, as every volunteer does.

The usual result is that the two best-placed stations answer and nobody else transmits. The later slots are there for the case where the best two did not hear the REQUEST: then the next in line speak, and the message still finds its relay in the same search. Where the volunteers cannot hear one another, none of them can count the others' OFFERs, so about two answer in each slot until the SELECT is heard. Once one relay to a destination has taken place, everyone who overheard the offers knows who hears that destination and how well, and the next search is ranked by signal instead of by chance.

Sixteen places are a limit on purpose. On a full frequency a hundred stations may each believe they could help, and a rule that gave every one of them a turn would put most of them in the same last slot, where they would cover each other and the originator would decode nobody. With sixteen places, at most two stations are meant to key in any slot, whatever the size of the crowd.

The price is paid when few can help. Take a destination that only three stations among a hundred can hear. Each of the three hears a hundred others, knows nothing about what they hear, and will usually draw a place past the sixteenth, so the first REQUEST may pass in silence. The repeats put that right. A station that has heard a REQUEST for a message go by with no OFFER, no SELECT and no RESULT knows that the crowd it feared did not answer. On the next REQUEST for the same message it draws its place from half as many, on the one after from a quarter, and so on down to the number of places there are. Within two or three requests the few that can help are answering. When many can help, somebody is heard on the first REQUEST and nothing widens.

One thing does change the slots: a virtual net. While a net is active on the frequency (Chapter 22), only eight of the nine slots are used, in two halves. A net member, or net control, volunteering for a message to or from a station on its own net's roster answers in the first four, so its OFFER starts within 6.4 seconds. Every other volunteer answers in the next four, between 8 and 14.4 seconds. The net's own stations are heard first, and a bystander who hears the SELECT in the meantime stands down. When many could help, each half ranks itself separately: members among the members in the first, second and fourth slots, everyone else among the others in the fifth, sixth and eighth. Each half therefore has six places, two to a slot, and a station that works out a seventh place or later stays silent for that REQUEST, opening up on the repeats in the same way.

19.4 Step 3: SELECT

When the first acceptable OFFER arrives, the originator starts a two-second clock to see whether a better one follows. When the clock runs out it chooses:

1. A volunteer that already holds the message beats one that would need it sent first.
2. Among equals, the highest link estimate to the destination wins.

It then sends [presence][relay/select], naming the chosen station and the message id, on the announce channel its REQUEST used.

An OFFER is a promise, so the volunteer protects it. For 5.2 seconds after its OFFER goes out, which is the two seconds the originator spends collecting plus a slot length each for the OFFER and the SELECT, the volunteer holds back its own outgoing traffic so that it is listening when the SELECT comes. In that time, and for as long as a relay it was selected for is in progress, it does not answer a different station's REQUEST for a different message. A new REQUEST for the same message, or from the same requester, still gets a fresh answer.

19.5 Step 4: FOR, and the message itself

The chosen station now delivers the message as an ordinary transfer from itself to the destination. It chooses shortburst or bulk afresh, from the size of the message and its own link to the destination (Section 15.5.2), not from how the originator sent it. ACKs and repairs work on this hop as on any other. What was sent stays what it was: a relayed mail arrives as mail.

The one addition is a FOR frame, naming the originator and the original message id. It rides in the same transmission, right in front of the RTS:

[presence][relay/for][rts][bulk 0][bulk 1]...

If the SELECT arrives while the helper is receiving something else, or waiting for the answer to a transfer of its own, it holds the SELECT for up to 20 seconds and acts as soon as it is free. It also will not start while all three announce channels are reserved. If 20 seconds pass without a chance, it lets the job go, and the originator's own waiting (below) covers the rest.

19.5.1 At the destination

When the destination decodes a FOR, it makes a note: "the next message from this station is really from A, with this id". The note lasts 30 seconds, and is stretched when the helper's opening frame arrives so that it covers the whole transfer and a round of repair.

The transfer is checked like any other, with the check the helper computed for its own hop. Once it passes, the destination files the message as from A, under A's original id, and uses the note once. It also works out what the id should be for A, itself and those contents, and logs a warning if the two differ. Last, it records that A can be reached through C. A client can list these learned routes; the station does not use them to choose a path.

19.6 Step 5: RESULT

When the destination acknowledges the transfer, or the helper's attempt fails for good, the helper tells the originator with [presence][relay/result]: the message id and one of two words, delivered or failed.

The RESULT goes out once, straight away. A lost RESULT leaves the originator's outbox saying "awaiting confirmation" for a message that did arrive, which is a wrong label and not a lost message; repeating every RESULT to guard against that would add air time to every relay on the net. Only if the helper cannot send the RESULT at all, for example because its operator switched it to listen only in the middle of the relay, does it store it. It then sends it the next time it hears the originator, and keeps it for up to one message lifetime (Section 20.4).

The originator accepts a RESULT only from the station it selected, and only with the right id:

• Delivered: the outbox row becomes sent.
• Failed: a failed relay says something about that path, not about the message. The row becomes deferred and the message goes back to looking for a way through (Section 19.7.1). It is marked failed only if its lifetime had already run out when the report came in.

19.6.1 How long the originator waits

The RESULT is not repeated on its own, but it can be asked for again. A helper remembers the messages it has delivered and seen acknowledged. If the originator, still showing "awaiting confirmation", sends another REQUEST for one of them, the helper does not offer and does not carry the message a second time. It answers with the RESULT, in one of the first two answer slots, and any station waiting to offer for that REQUEST stands down when it hears it. The helper gives this answer once for each delivery: two messages with exactly the same words have the same id, and a helper that kept answering "delivered" would report a new one as delivered without sending it. For the same reason the originator believes the answer only for a message it handed to that very station.

The originator, for its part, keeps quiet while the RESULT is due. A station that is transmitting hears nothing, on any channel, and an originator that started its own routine traffic the moment the helper's last data frame ended would talk over the destination's acknowledgment and the RESULT that follows it. So from the moment it hears its helper begin delivering, the originator holds its own routine transmissions: queued messages, its beacons, and net upkeep if it is net control. The hold ends when the RESULT is heard, or 6.8 seconds after the last frame of the delivery it decoded: five seconds for the destination's reply, 1.3 for the RESULT frame, and half a second of margin. A distress call is never held, nor is a reply the station owes somebody, nor its turn in a roll call.

After its SELECT, the originator waits up to 60 seconds for the RESULT. But A can usually hear C, which is why C could be chosen, so A often overhears the relay happening: the FOR frame naming A, and each opening frame C sends to the destination, repair rounds included. Every time A hears one of those, the 60 seconds start again. It does not give up on a helper it can hear working.

If 60 seconds pass with no RESULT and no sign of progress, the message is not marked failed. The row becomes deferred, with the note "relay handed off; awaiting confirmation on next contact", and the station keeps a record on disk of which helper it is waiting on. A RESULT from that helper still settles the message, however late it comes. Meanwhile the station keeps trying, as described next.

19.7 When nobody volunteers

Sometimes the 24 seconds close with no OFFER at all. Nobody may hold a copy, or the stations that do may not hear the destination right now. After a bulk transfer, an empty search first earns the message one fresh attempt at the whole transfer (Section 16.6.3). After that, or straight away for a short message, the row becomes deferred with the note "no relay volunteered yet; asking again after a growing wait".

For mail there is one more helper, and only on a repeat REQUEST. When a first REQUEST for the station's own clear mail has found nobody who can reach the destination, the repeats carry a second flag: "a station connected to the mailserver may ask for a copy". A gateway that neither holds the mail nor hears the destination may then answer with an OFFER marked "send it to me first", claiming the worst possible link, so that any station which really hears the destination is chosen ahead of it. Gateways answer in the later slots, ranked among themselves for the six places there. If one is chosen it is handed the mail, leaves it at the mailserver for the recipient to collect, and announces that it has taken it; the originator's row then reads "handed to callsign, which left it at the mailserver for pickup". Gateways stay silent on a first REQUEST, so station-to-station delivery is always tried first. The flag is never set for encrypted mail, nor for mail from a station that is not registered at the mailserver.

19.7.1 Seeking: asking again later

A deferred message waits for the neighbourhood to change. Nothing happens until the station has heard some station since it set the message aside, and until the message's retry gap has passed; the gaps grow from one minute to thirty-two (Section 20.6.1). Then:

• If the station has heard the destination itself in the last two minutes, it sends the message directly again, as though it were new: it chooses how to send, waits for the answer and, if there is none, asks for a relay.
• Otherwise it sends a fresh REQUEST.

The same two moves apply to a message that was handed to a helper whose RESULT never came. Should that helper deliver late after all, the destination recognises the second copy as one it already has.

19.7.2 HANDOFF: when nobody holds a copy

A REQUEST sent straight after a direct attempt invites only stations that hold the message, provided a complete copy went on the air. If only part of it aired (a message sent in several parts stops after the first when the destination does not answer), no bystander can hold it, and the first REQUEST already carries the wider invitation described next. A REQUEST sent later, from the deferred state, always sets the flag that widens the invitation: "nobody seems to hold this; a station that hears the destination may offer without a copy". A station that has heard the destination within the same half-hour window, passes the −5 dB test and is set to allow bulk may then answer with an OFFER marked "send it to me first". Such an OFFER carries no length and no fingerprint.

If the originator selects such a station, it waits 2.5 seconds after its SELECT and then sends the message to it as an ordinary directed transfer with a HANDOFF frame in front, in the place a FOR would take. The HANDOFF names the real destination and the message id. The receiving station does not show the message to its operator. It stores it exactly as though it had overheard it, and then carries on as a normal relay: FOR, transfer, RESULT. The originator's 60-second wait for the RESULT starts when the helper acknowledges the hand-over.

A station selected this way waits 90 seconds for the hand-over to begin before it gives up its promise. If the hand-over fails, the originator treats the relay as failed, defers the message, and asks again later.

19.8 More than one hop, and other helpers

Nothing in the handshake is limited to one hop. If the helper's own transfer to the destination meets silence, the helper asks for a relay as it would for a message of its own, and waits for that second helper's RESULT. Whatever comes of it, delivered, failed or no offer at all, the first helper reports it to the original requester with a RESULT of its own and is done; it does not go on seeking for somebody else's message. Every station remembers the true author of a relayed message it overheard, so a FOR frame two hops down the line still names the original author and the original id.

Three other kinds of helper can answer a REQUEST:

• A member of a station cluster. A cluster member that holds the message but cannot hear the destination may volunteer if another member's radio heard the destination within two minutes. It passes the message across the cluster's network link and that member transmits it. Such an OFFER claims 3 dB less than the other member's real figure, so that a direct volunteer with an equally good link wins (Chapter 31).
• Net control of a named net. For mail between two members of its net, net control keeps a mail that nobody else can carry and delivers it at the member's next check-in (Section 22.8).
• A mail gateway. A gateway that holds a copy of a mail can answer by saying it has put the mail in the recipient's mailbox on the mailserver. It waits three to four seconds first, and stands back if it hears a radio relay selected or another gateway's answer in that time. Among five or more gateways each takes a place in line, two answer per slot, and those past the sixth place stay silent (Chapter 24).

19.9 The operator's relay setting

Each station has a relay setting with four positions. A new station starts at allow bulk.

Listen only is the strong one. A listen-only station transmits nothing except a distress call its own operator declares: no beacons, no traffic of its own, and none of the frames in this chapter. It still hears, records and shows everything. The setting is looked at again right before each relay frame would go out, so switching to it in the middle of a relay takes effect at once. What that does to a message of the station's own depends on the moment:

• A message handed to the station for sending while it is set to listen only is marked failed.
• So is a message whose direct attempt has met silence at a moment when the station may not send the REQUEST.
• If the REQUEST has already gone out and the setting changes before the SELECT, the message is deferred instead, and the station asks again once it may transmit.

Relay off sends the station's own traffic normally but carries nobody else's. It never answers a REQUEST with an OFFER and never takes on mail as a courier.

Announce only carries only small messages. It volunteers only when the copy it holds is 156 bytes or less, the most one shortburst carries, and is not mail. It never volunteers without a copy, whose size it cannot know, and takes on no courier duty.

Allow bulk carries everything: short messages, bulk transfers, relaying without a copy, and mail courier duty.

The level is looked at when the REQUEST is heard and again when the OFFER would go out, so lowering it takes effect for the next OFFER. The two middle levels do not affect the repeating of a heard distress call, which has a switch of its own (Chapter 23).

19.10 What to remember

• The helper usually already has the message, because every station keeps what it overhears. It volunteers only if it holds a copy from that requester to that destination, heard the destination within about half an hour (one heard more than two minutes ago stands further back), and has a link to it of at least −5 dB.
• REQUEST (destination and id), then OFFERs in nine slots two seconds apart on the other two announce channels (when five or more could answer, each ranks itself, two answer per slot, normally only the best two speak, and a station past the last place stays silent until a repeat), then a SELECT two seconds after the first good OFFER, then FOR and the message in one transmission, then one RESULT.
• The originator checks each OFFER's length and fingerprint against its own copy, prefers a station that holds the message, and then takes the best link to the destination.
• The destination files the message under its original author. The originator holds its routine transmissions while the RESULT is due, waits 60 seconds for it, and starts again each time it hears the helper at work. A helper asked again for a message it has delivered answers with the RESULT and does not carry it twice.
• No offer, or no RESULT, means deferred. Later requests also invite stations that hear the destination but hold nothing; the originator sends such a station the message behind a HANDOFF frame.

What each outbox state and note means for the operator is in Chapter 6.

20.1 Why not just use a timeout?

Most networking software is built on timeouts: send something, start a stopwatch, and if no answer arrives before it runs out, assume the message was lost and send it again. On a wired network, where an answer comes back in milliseconds, that works well.

On a shared HF channel the answer has to win a turn on the channel like everything else. If the channel is busy, the answer is late, not lost. A stopwatch cannot tell late from lost, so it resends. The resend adds traffic to a channel that was already busy, so other stations' answers get later still, so their stopwatches run out and they resend. The more crowded the channel, the more of its time goes to copies of messages that were already on their way. That is how a busy net seizes up, and the name for it is congestion collapse.

20.2 Opportunistic and lazy

mLink's answer fits in three words: opportunistic and lazy.

• Opportunistic means a station acts because something happened, not because a clock ran out. It hears the destination again, so it tries the message again. It hears a gateway, so it offers the mail that was waiting for one. It hears somebody new, so it asks again whether anyone can relay.
• Lazy means that where a deadline does exist, it is a generous backstop, sized to run out only when nothing else happened first. When it does run out it rarely means "failed". Usually it means "stop waiting actively and set this aside until something changes".

20.3 Three kinds of waiting

Every wait in the station belongs to one of three kinds, and the kind decides how its number is chosen and what it means when it runs out.

The kinds are kept apart because they go wrong in different ways. A turnaround that is too short makes a station key over the reply it is waiting for, so these are exact. A reclamation that is too long does little harm. A lifetime that is too short makes a station declare defeat while the answer was merely stuck behind other traffic, so a lifetime never pronounces failure by running out. It sets the message aside to be tried again.

20.4 The message lifetime

The longest wait is the message lifetime. For a message that has to ask for a relay it starts with the first REQUEST. It is used in four places:

• A deferred message whose lifetime runs out gets a new note in the outbox, such as "still seeking a relay; will keep trying", and a new lifetime.
• A relay that reports failed sends the message back to waiting if lifetime is left, and marks it failed if none is.
• A relay that could not send its RESULT keeps it for one lifetime, in case it hears the originator again.
• A courier carrying someone else's mail toward a gateway (Chapter 24) keeps the job for one lifetime.

The lifetime is 15 minutes, or the contact horizon if that is longer.

20.4.1 The contact horizon

Several of these waits are promises of the form "I will deal with this the next time I hear that station". Such a promise is only worth something if it lasts until the next time can come around. On a big net a quiet station beacons only about once an hour (Chapter 18), and a 15-minute promise to act on next contact with it would lapse before contact could happen.

So the station works out a contact horizon: its own current beacon interval, plus half as much again for margin. The beacon interval is ten minutes with up to ten stations heard and stretches in steps to an hour on a very crowded frequency, so the horizon runs from 15 minutes to 90. A lifetime is never shorter than the horizon.

20.5 Deferred is not failed

When a lifetime-kind wait runs out, the message becomes deferred, not failed. An empty search for a relay, a relay that was chosen and then never reported, a relay that reported failure, mail on its way to the mailserver over the internet: all of these are deferred. The station still holds the message and is still working on it.

Failed means the station has stopped. It is used when the station may not transmit (it is set to listen only, or the transmitter refuses), when the message cannot be built or is too big to send at all, and when the sending rules find no way to send it to that station (Section 15.5.5). Time passing does not, by itself, make a message failed.

20.6 Mail never expires

No clock ends a deferred message. When its lifetime runs out, the station changes the note, starts another lifetime and carries on. This holds for every directed message that has reached the point of asking for a relay, and for mail waiting for a gateway. A message that is waiting is never dropped for having waited.

A station with a working radio will sooner or later hear the destination, a helper or a gateway, and waiting costs nothing on the air: while the station hears nobody, a deferred message makes it transmit nothing at all.

Deferred messages are tried oldest first, even when newer traffic is queued behind them.

20.6.1 Retry gaps

Patience does not mean pestering. Two conditions must both hold before a deferred message is tried again:

• Something has been heard. The station must have heard some station since it set the message aside. If it has heard nobody, nothing has changed and trying again would be pointless.
• The gap has passed. After the first time a message is set aside, the station waits at least one minute. After the second, two; then four, eight and sixteen; and from then on thirty-two minutes. The count belongs to the message, so one stubborn message does not slow the others.

A message that has waited all afternoon therefore asks about twice an hour, not twice a minute. What a retry consists of, a direct send if the destination has been heard and otherwise a new request for a relay, is in Section 19.7.1. Mail waiting for a gateway uses the same doubling gaps between its tries. The separate slowing of new bulk transfers on a channel that shows collisions is in Chapter 17.

20.7 Across a restart

What comes back after the station program is stopped, or crashes, depends on how far each message had got:

• A message that was waiting to go or on the air comes back as a draft, with a note saying which. So does a mail whose deposit at the mailserver was under way. The station does not send drafts by itself; you decide. A station that came back from a power cut and at once re-sent a backlog could flood the channel.
• A deferred message stays deferred. The record of what it is waiting for, a relay's RESULT or a new search, is on disk.
• A RESULT that a relay could not send is on disk too.
• A distress call that was being repeated starts again without the operator entering anything (Chapter 23).

Anything the station held only in memory is gone: a relay search in progress, a partly received message, a promise to relay for someone.

20.8 Whose clock?

Every wait in this chapter is measured by one station, on its own clock, from things it observed itself: the end of its own transmission, the moment it decoded a frame, the last time it heard a callsign. None of them compares one station's clock with another's, so two stations whose clocks disagree by an hour relay for each other just the same. The few clock times that do go on the air are counted as Section 21.5 describes.

20.9 What to remember

• A stopwatch cannot tell "late" from "lost" on a shared channel, and retrying on a stopwatch makes a busy net busier. mLink acts on what it hears and keeps deadlines as generous backstops.
• Three kinds of wait: turnaround (exact), reclamation (how long a fact stays believable), lifetime (how long to keep working before setting a message aside).
• The message lifetime is 15 minutes or the contact horizon, one and a half beacon intervals and up to 90 minutes, whichever is longer.
• Running out of time makes a message deferred, never failed, and a deferred message never expires. It is retried, oldest first, when some station has been heard and its gap of 1, 2, 4, 8, 16 or 32 minutes has passed.
• After a restart, queued messages come back as drafts, deferred ones stay deferred, and a distress call resumes.

21.1 The layers, from the outside in

A message is a letter in a set of envelopes. The outermost belongs to the transport: the frames, the error correction and the two-byte integrity check, which travels in front of the data (Section 16.2.3). Inside that, every size of message looks the same.

The sending station builds the layers in one place, in this order:

1. it computes the integrity check over the message exactly as the client handed it over, before anything is added or squeezed (Section 16.2.1);
2. it puts the kind byte in front of the message;
3. it compresses kind byte and message together, and keeps the result only if it is smaller;
4. if encryption was asked for, it seals what it has (Chapter 26);
5. it puts the envelope byte in front.

The receiving station undoes them in the opposite order, also in one place, for every kind of delivery: read the envelope byte, decrypt, decompress, take off the kind byte, verify the check over what is left, and hand the content to whichever part of the station handles that kind. Anything added at that one place, such as a new dictionary, reaches every kind of message at once.

21.2 The envelope byte

The first byte of every message is its envelope byte. It answers one question: how were the following bytes packed? It says nothing about what they are for.

So a chat line that compressed well with the text dictionary carries compressed = 1, text = 1, encryption = 0, dictionary = 1: the byte 0x25. A weather report that went out as it was, in the clear, carries 0x00.

21.2.1 Room to grow, and failing loudly

Two bits are held back. Bit 1 is simply spare. Bit 7 is the extension bit: if mLink ever needs more bits, a set bit 7 will mean "a second envelope byte follows". A station today does not know what that byte would say, so it refuses the whole message instead of guessing.

The same rule covers the dictionary field. If a message names a dictionary the receiver does not have, decoding through another would produce plausible-looking nonsense, so the receiver drops the message and logs why. An operator sees a delivery that did not happen, never a mail full of scrambled words.

21.2.2 What protects the two wrapping bytes

The integrity check covers the message, not the envelope byte or the kind byte in front of it. Those two rely on the error correction that carried them, which rejects a frame it cannot repair (Chapter 9). Most damage to the envelope byte would show anyway: a wrong compressed or dictionary bit makes decompression fail or yield different bytes, and then the check does not match. A message that fails to unwrap is dropped and not acknowledged, like one that fails its check. In a sealed message the envelope byte is also covered by the seal.

21.3 The payload kind byte

Once any encryption and compression are undone, the first byte of what remains is the payload kind. Where the envelope says how, the kind says what, and the station hands the rest to the part of itself that knows that format.

Values 0x0E and 0x0F are kept for mLink's own future use. Values 0x10 to 0xFF are open for other programs and experiments. A station that receives a kind it does not know logs it and discards the content. The bytes arrived correctly, so the transfer is still acknowledged, but nothing unreadable is put in front of the operator.

21.3.1 Why two bytes and not one

The envelope is about transport: whether to decompress, whether to decrypt. It has to be readable before anything else is done. The kind is about the application: which part of the station gets the content. Keeping them apart leaves the envelope its spare bits and gives the kind 256 values of its own.

It also keeps the kind private. The kind byte sits inside the compressed and sealed part, so a listener to an encrypted message, or a station relaying it without the key, cannot tell a chat line from a mail.

21.4 Compression

A byte that never has to be transmitted is the cheapest byte there is, so every message gets a chance to be made smaller before it goes out. mLink compresses with zstd (Zstandard), a widely used, openly published compressor, run at its strongest setting. That costs a fraction of a second of computing on the sending side, which is nothing next to the seconds of transmitting it saves, and the receiving side decompresses just as fast whatever setting the sender used.

21.4.1 Compressed only if smaller

A compressed stream carries a few bytes of its own bookkeeping, so a very short message, or one that is already dense like a photograph, can come out larger. So the sending station tries and compares:

1. the content as it is;
2. the content compressed with plain zstd;
3. for text messages, mail, net bulletins and standing orders only, the content compressed with the shared text dictionary (below).

It sends the smallest. A compressed form wins only if it is strictly smaller than what it would replace, and the envelope byte records the choice.

21.4.2 The shared text dictionary

A compressor learns the patterns of a message from the message itself, and a typical radio message, a few dozen to a few hundred bytes, is over before there is anything to learn. A compression dictionary gives both ends a head start. It is a block of typical content prepared in advance and built into every station, so the compressor can say "the next 30 characters are the same as this stretch of the dictionary" from the very first byte.

mLink has one dictionary today. It is 8,192 bytes, made from about 420 sample amateur messages: net check-ins, contact exchanges, formal traffic in the National Traffic System style, position, status and welfare reports, search-and-rescue updates and short mail bodies.

The difference is large. A 257-character net check-in (callsign, grid, power, antenna, a welfare report, weather, "73") comes to about 195 bytes with plain zstd and to about 115 with the dictionary, well under half its typed size. A 35-character "QSL, see you on the net tonight. 73" does not get smaller either way, so it goes out as it is. A mail that is mostly an attachment gains nothing from a text dictionary, and then plain zstd or the plain bytes win the comparison: the dictionary can never make a message larger.

21.4.3 Size limits

• How a message is sent is decided after wrapping. Whether it goes as a shortburst or a bulk transfer, or fits at all, is judged from its wrapped size (Section 15.5.2).
• A receiver will not expand a message past 1 MiB. Decompression stops, and the message is dropped, if the content would come to more than 1,048,576 bytes. That is the same limit a station applies to a message handed to it for sending, so anything a sender accepts a receiver will open, and it keeps a small damaged or hostile stream from growing into a very large one.

21.5 The mLink time epoch

Some fields carry a time: when a weather observation was made, or "mail since this moment" in a mailbox check. Every such time on the air is counted from one fixed instant, the mLink epoch: 2020-04-20 00:00:00 UTC. Most fields count whole seconds in 32 bits.

Most computer systems count from 1 January 1970. Counting from 2020 buys two things. A 32-bit count of seconds lasts about 136 years, so it runs out in about 2156 instead of 2106, with no extra bytes on the air. And the numbers are small today, near 200 million late in 2026 against 1.79 billion, which leaves room for narrower fields where a time only needs a short range.

A time before the epoch is sent as the epoch itself. The epoch lives only on the air, and in the signed requests a station sends to the mailserver (Chapter 25). In the station's database and logs, and in everything it tells its client programs, times are ordinary Unix milliseconds. The station converts when it builds or reads a field, so no operator and no client program has to know the epoch exists.

21.6 The rule: payload details ride with the payload

Look over the announce frames (Section B.2) and a pattern shows. Every one is about who, when or what happened to a transfer. None says what a message is about or how it was packed. A text, a mail, a map object and a weather report travel the same way: an opening frame such as an RTS (Section B.8), some data frames, an ACK. What tells them apart is inside the message. That is a rule, and it has three reasons.

• The frame space is small. There are sixteen families of announce frame with sixteen subtypes each, and the family that controls transfers already uses twelve of its sixteen. A subtype spent on "weather report" is room the protocol cannot get back.
• Everything in a message gets the protocol's services. A new kind of data carried as a message is acknowledged, repaired, relayed and compressed without any change to the frames. A new announce frame gets none of that unless someone builds it again.
• The protocol stays simple. A station that does not understand a payload kind still receives, checks and acknowledges the message; it just cannot use the content. A station that does not understand an announce frame drops it, and the exchange around it stalls.

The test for something new is simple. If stations need it to decide who gets the bytes, when to transmit or what to repair, it belongs in an announce frame. If it only describes what the bytes are or how to read them, it belongs with the bytes: in the envelope byte if any kind of payload might want it, in the kind byte or the content if not.

21.7 What to remember

• Every message starts with an envelope byte (how it is packed) and then a kind byte (what it is). The kind byte sits inside the compressed and sealed part.
• A message is compressed with zstd only if that makes it strictly smaller; text and mail also try a built-in 8 KiB dictionary of typical ham traffic.
• An unknown dictionary, a set extension bit and the reserved encryption mode are refused, never guessed at. A receiver expands nothing past 64 KiB.
• Times on the air count from 2020-04-20 UTC; everything off the air uses ordinary Unix time.
• Details about a payload ride with the payload. Announce frames carry only addressing, timing and the state of a transfer.

The Nets window and its buttons are in Chapter 5. This chapter is about what the stations do.

22.1 What a virtual net is, and why have one

mLink's ordinary channel has no net control and needs none (Chapter 1). A virtual net is an optional layer on top. An operator opens a net under a name, such as TETON or MARITIME, and their station becomes the net's net control. Other operators ask to join and are given member numbers. The net can then do three things a crowd of peers cannot: know who is present, by a roll call in which every member answers in its own numbered slot; get a bulletin to everyone and know it arrived; and put its own traffic first when help is asked for.

The layer is opt-in in both directions. A station that never opens or joins a net works exactly as it would with no net on the frequency. Members still send ordinary messages to each other by callsign, and net control is not in that path: if it disappears, only the roll call and the bulletins wait for a new one. Net control carries no authority either. It keeps time, keeps the list and calls the roll; it cannot stop anyone transmitting, and any station may open a net under any name.

Any number of virtual nets may share a frequency as long as their names differ. Two nets that both call themselves TETON are treated as one net that has to sort itself out (Section 22.10).

22.1.1 Who is who

A station's part in a virtual net is worked out from what it has heard and done. It is never a separate setting.

Any station that decodes a virtual net's anchor starts following that net as a bystander. A station follows one virtual net at a time. A station set to listen only follows the net and sends nothing.

22.2 The net's frames

What a virtual net sends for its own upkeep is ordinary 11-byte announce frames of one family, ANCHOR (Section 14.3), thirteen in all. Net control sends the cycle ANCHOR and the closing ANCHOR, the ROSTER entry, the ROLL and four kinds of TALLY. A member, or a station that wants to be one, sends the CHECKIN, the JOIN, the JOIN THROUGH (asking for somebody else) and the ROSTER REQUEST. The owner sends the INSTRUCT when another station runs its net. The bit layouts are in Section B.14.

None of these frames is acknowledged with a frame of its own. A station knows its request worked when it sees the result: a joiner is in when it hears itself on the roster.

22.2.1 Frames that travel alone

Nine of the thirteen ride behind the sender's PRESENCE (Section 14.5). Four do not: the CHECKIN, a station's own JOIN, the ROSTER REQUEST and the INSTRUCT carry the sender's full callsign inside the frame and go out as one frame with nothing in front of it. The reason is air time: in a roll call every member sends the same short answer in turn, and with the callsign inside each answer is one frame of 0.64 s instead of two. The callsign in the frame is the station's identification (Section 14.8).

22.2.2 Name, key and tag

Only the anchor carries the net's full name. The other frames identify the net in one of two shorter ways:

• The key is 32 bits made from the name: the packed name itself for up to six characters, a fold of it for seven or eight. The ROLL and the two JOIN frames carry it, because they make a station act on the name alone: a ROLL makes members key up, and a JOIN makes net control list somebody.
• The net tag is five bits, a fixed fold of the name that every station works out the same way. The ROSTER entry, the ROLL, the CHECKIN, the tallies, the ROSTER REQUEST and the INSTRUCT carry it.

Five bits give 32 values, so two nets on one frequency can easily share a tag. That is fine, because the tag only narrows a frame down; something else always decides whether the frame is acted on. A check-in counts only when its callsign is on the station's own roster under the number the frame claims. A tally and a roster entry count only from the station's own net control. A roster request is answered only when the asker is on the answering member's roster. An INSTRUCT is obeyed only from the owner.

The one exception is the open check-in of a station with no number yet (Section 22.6.4), which is on nobody's roster. Net control accepts it when the tag fits, the frame arrives inside the open slots of net control's own roll call, and it names that roll call.

22.3 Opening, naming and joining

22.3.1 Net names

A net name is one to eight letters and digits, upper-cased. A message to a net is addressed to 0 followed by its name (Section 14.7), so eight is the most that fits a nine-character addressee, and the names CQCQCQ and CQQTH are refused because they would spell the all-stations and area addressees.

22.3.2 Opening a net

The station that opens a net becomes its owner, its net control and member 1, and sends its first anchor as soon as the rules for a beacon allow. There is no check that the name is unused: if a net of that name is already on the frequency, the two settle it between themselves.

The opener chooses two things, and both ride in every anchor. The cycle period is how often the anchor goes out: 300 s unless the opener picks another value from 150 to 600 s in steps of 30 s. Every wait in this chapter that is counted in cycles is timed by each station from the period it hears in the anchor. The net type is Casual or Safety Critical (Section 22.9.8).

22.3.3 Joining

A station asked to join a net waits until it hears that net's anchor, then sends one JOIN frame, alone, with its own callsign and the net's key. Net control lists the joiner, and the joiner learns it is in when its own roster entry arrives behind a later anchor.

If the entry does not come, the joiner asks again, more slowly each time: one cycle after the first JOIN, two cycles after the second, and so on. After six unanswered JOINs it stops and tells its operator. A standing join is remembered across restarts and starts the six tries again whenever the net is heard.

Each of these gaps, and further on each gap between re-sendings of an INSTRUCT, a member's bulletin and the owner's standing orders, also carries a random extra of up to 9 s on a small net and 18 s on a large one, so that members sent back to ask by one frame do not all key in the same instant a cycle later.

A member can ask for you. A member that decodes a JOIN from a station not on the roster keeps a note of it, and if the joiner is still not listed one cycle later (net control did not hear it) the member passes the request along as [presence][join through], with the joiner's callsign in the frame. Each member waits 1.5 s per member number beyond the cycle, so the lowest-numbered member who heard the joiner usually does it and the others see the listing and stay quiet. A member holds at most four such notes and passes each along once.

JOIN and JOIN THROUGH carry the same two things; the frame type says whether net control heard the joiner directly. A station listed from a JOIN THROUGH is marked heard through another member, and the mark comes off if its own JOIN gets through later. A joiner that hears its request passed along waits one cycle from that moment before it sends another JOIN.

Joining a net you cannot hear. A station in net control's skip zone never hears the anchor. When its operator asks it to join anyway, it listens for one cycle and then sends its JOIN regardless, on the same thinning schedule, for a member to pass along. In a Safety Critical net that member then speaks for it; in a Casual net it is listed but hears nothing back.

22.4 The roster and member numbers

The roster is net control's list of members. Each entry is a callsign, a member number and a few marks: listed on another member's word (heard through), did not answer the last roll call, has left the net, is the net's owner, is the owner's first, second or third alternate.

Numbers are handed out in order: the opener is 1, and each new member gets one more than the highest number on the roster. They are never reused: a member who leaves keeps its number, marked as left, and gets it back on return. The limit is 127, because a member number is seven bits and zero means "no number"; a joiner beyond that is not listed.

22.4.1 How the roster reaches the members

Up to three ROSTER frames ride behind each anchor, in the same transmission. A new or changed entry goes first, then the entries follow in rotation, so a newly listed member normally hears its own entry at the next anchor and a net of a dozen goes round in four. A full net of 127 would take 43 anchors, which is why a member has two faster ways to fill in its copy, described below.

Every change to the roster moves its edition on by one. The edition counts from 1 to 15 and starts again at 1; the anchor, every ROSTER frame and the ROLL carry it. Stations only ask whether two editions are the same: an anchor whose edition differs from a member's copy says changed entries are still to come round. The anchor also carries the highest member number on the roster, so a member whose copy holds fewer rows can see it is short. A listed station that sends JOIN again has not heard its own entry yet, and net control moves that entry to the front of the rotation.

The owner's entry rides in the rotation marked as the owner's, whichever station sends the roster, so that every copy says whose net this is. A stand-in sends no entry for itself: its PRESENCE already says who runs the net.

Net control keeps its roster across a restart and comes back running the net, with the edition moved on by one; if the members seated someone else meanwhile, the two are settled like any two net controls (Section 22.10). A member does not keep its copy: it comes back with its net, its number and the owner's callsign, and collects the rows again from the air.

22.4.2 Rows learned from a roll call

A check-in carries a callsign and a member number, which is one roster row. A member following a roll call of its own net adds a row when it decoded the ROLL, the check-in is in a numbered slot inside the range called, it has no row under that number or for that callsign, and the frame arrived when that number's slot says it should. The timing is the evidence the tag alone is not. Net control never learns rows this way; its list is the original.

22.4.3 Asking a member for the whole roster

A station that wants the whole list at once sends one ROSTER REQUEST frame, alone: its callsign, the net tag, the number of the member asked (zero for "any member"), and whether it wants the roster, the standing orders (Section 22.7.3), or both.

Asked of "any member", the members who heard the request line up by member number, lowest first, since the longest-serving member is likeliest to hold a complete copy. Each place in line is three seconds, long enough for those further back to decode the opening frames of an answer, and a member that hears another member begin a transmission to the asker stands down. There are eight places; members further back share the last, and a member whose path to the asker is too weak for a bulk transfer (below +6 dB SNR@3k, or unmeasured) goes behind all eight. A member whose place comes up while the channel is busy or a roll call is running looks again shortly. A member asked by number answers straight away.

The answer is the whole roster as one ordinary directed, acknowledged message with its own payload kind (Chapter 21): the net's name, the edition, the owner's callsign and one eight-byte row per member, about 110 bytes for a dozen members and a kilobyte for 127.

The asker adds the rows it lacks. A row it already holds is replaced only when the copy is of the same edition as the entries the asker last heard from net control, because an entry heard from net control outranks another member's copy of it; for the same reason a number it holds under a different callsign stays. Its own row is never taken from a copy.

If no answer comes, the station asks again by itself, three times at most: 90 s after the first request and 180 s after the second, giving up 360 s after the third.

22.5 The anchor and net control's cycle

The anchor is net control's heartbeat. Once every cycle period, give or take up to a fifth, net control sends

[presence][anchor][roster][roster][roster][hello][hello][hello]

on any free announce channel: the anchor, up to three roster entries and up to three HELLO frames (Section 18.7.1), a little over five seconds of air at most. It goes out under the rules of any beacon: the station is idle, an announce channel is free, no roll call is running, and the beacon's random wait has passed (Section 17.7.1). It also restarts the station's ordinary beacon timer. The spread in the period keeps two stations that send anchors for one net without hearing each other from landing on top of each other cycle after cycle.

One anchor frame carries the net's full name, its cycle period and its type; the roster edition and the highest member number; and:

• the term, a count of net controls round a circle of sixteen values: a station that takes over uses one more than the term it last heard;
• the live count: the members net control has heard lately, plus itself (Section 22.10.1);
• whether this net control is a stand-in, and whether it runs the net by the owner's wish;
• the member number of the owner's first alternate, "who is in charge if I disappear";
• whether this is net control's anchor said again by a member (Section 22.9.7).

A closing anchor has the same shape. It says whether the whole net is closing or only net control is stepping down, and in place of the first alternate it names the member the seat is handed to.

22.6 Roll call, check-ins and the tally

In an mLink roll call, net control sends one frame and every member answers in its own numbered slot, one after another.

22.6.1 The call and the slots

Net control sends [presence][roll] on a free announce channel, and the whole roll call stays on that channel. The ROLL carries the net's key and tag, which roll call this is, the first and last member numbers called, the roster edition, and a bulletin tag that is zero for an ordinary roll call. By default the call runs from the lowest to the highest number still on the roster. Net control's own number and members who have left are not called when they sit at either end; every number in between keeps its slot whether or not anyone will answer in it, which is what lets any station place any slot from two numbers and a constant.

A slot is 1.2 seconds, always, and is carried on no frame: 0.64 s of check-in and a margin for each member timing the slots from its own decode of the ROLL. The first slot starts 0.4 s after the ROLL is decoded, member n's slot starts (n − first) slots later, and the member keys its check-in exactly at the start of its slot. Net control, which cannot decode its own frame, counts from the moment its transmitter reports the ROLL sent.

Only two things keep a member out of its slot: an exchange of its own that is still under way, or a distress exchange (Chapter 23). A member held up that way may still start up to half a second into the slot. Later than that the frame would run into the next slot, so it lets this one go and gets a second try in the tail.

22.6.2 The check-in

A check-in is one CHECKIN frame, alone, in the member's slot. It carries the sender's callsign; the net tag and which roll call it answers; the sender's member number (zero means "I hold no number yet: list me"); how many slots come after this one, 0 to 30 exactly and 31 for "31 or more"; one other member's number that this station heard; and six marks:

• an operator is present; has traffic for the net; needs help reaching someone;
• this is the station's last check-in: it is leaving;
• has the bulletin, in a receipt roll only (Section 22.7.2);
• out of turn: this check-in is not in the sender's own numbered slot.

Vouching up front. In its numbered slot, a member puts in the heard field the number of the last member it heard check in before it. Net control then counts that member as present even if it missed the check-in itself, and marks it heard through. A frame net control lost in a one-second fade is repaired by the very next check-in, and the roll call often needs no tail at all.

Finding your slot without the ROLL. A member that missed the ROLL places the roll call from a check-in whose callsign is on its own roster under that same number and which is not out of turn. The sender's slot began about 0.9 s before the decode finished, so its own slot is (its number minus the sender's) slots later, and the last slot is the sender's plus the count that comes after. If its own slot has gone by, it waits for the tail.

22.6.3 The tally and the tail

Half a second after the last slot, net control sends a TALLY behind its PRESENCE: who was called and not accounted for. A member is accounted for if net control heard its check-in or another member named it.

One frame has 64 bits for the answer and a net can hold 127 members, so there are four kinds of tally:

1. Missing list. Up to nine missing numbers; an empty list means nobody is missing. This is the tally of nearly every roll call.
2. Heard list. If more than nine are missing but nine or fewer were heard, the heard numbers; every other number called is missing. It is used only when every number in the range belongs to a member still in the net.
3. Low map and high map. Otherwise one bit per member number, set for a missing one: numbers 1 to 64 in the low map and 65 to 127 in the high map. A map is sent only if somebody is missing on its side. When both are needed they go as [presence][low map][high map], and the first says one more follows.

Every tally also carries the net tag, the roll call it belongs to, a final mark and the length of the tail that follows. With nothing missing, the TALLY is final and the roll call is over. Otherwise there is a tail in two parts:

1. Second tries. One slot for each member named missing, in number order. A missed check-in is nearly always a fade, so the station most likely to fix it is the missing member itself a few seconds later. Its second check-in is marked out of turn.
2. Vouch slots. Then one slot for every number called, in order. A member that decoded a missing member's check-in itself, and has not heard anybody else speak for it, says so in its slot: one check-in, out of turn, with the missing number in the heard field.

After the tail net control sends the final TALLY, and the "did not answer the last roll call" marks on every station's roster follow it.

A member that placed the roll call from a check-in does not know which number was called first, so it can take its second try but cannot place a vouch slot or read a heard-list tally.

22.6.4 The open check-in

The final TALLY also asks "any late or new check-ins?": three open check-in slots follow it. A station that has asked to join but has no number picks one of the three from its callsign mixed with the roll call's number (two joiners that collide once do not collide every time), adds a small delay within the first quarter of the slot, and sends one CHECKIN with number zero. Nobody owns an open slot, so here the station does check that the channel is quiet first.

Net control lists a station it hears in the open slots at once. The joiner then waits for net control's next anchor, which carries the newest roster entry first. If that anchor does not list it, the joiner sends an ordinary JOIN five seconds later; if no anchor is heard, after two cycles.

22.6.5 The hold

The stations that hear a roll call stand back from it. How far depends on who they are.

A member, net control included, holds all its routine traffic on every channel from the moment it decodes the ROLL: new messages, beacons, JOINs and other voluntary frames wait. Replies to exchanges under way and anything to do with distress are not held. From the ROLL the hold covers the numbered slots, the tally and the longest tail this roll call could have, two more slots per number called; a TALLY with numbers missing says how long the tail really is. The hold ends at the final TALLY plus the three open slots, or when the time runs out. A member that placed the roll call from a check-in holds too.

Everyone else (a bystander of this net, a station in another net or in none) keeps off the one announce channel the roll call runs on, by treating it as reserved (Section 17.2), and carries on as usual on the other two and in the bulk region. Such a station need not have heard the ROLL. Every check-in says how many slots come after it, so a station that decodes any check-in, of any net, keeps that channel clear until those slots and the tally behind them are over, and each later check-in corrects the estimate. A TALLY with numbers missing keeps it clear through the tail.

A roll call of a twelve-station net (net control and eleven members) with nobody missing takes about 21 seconds from the first frame to the last open slot. One member missing adds a tail of twelve slots and a second TALLY, about 17 seconds. A member that decodes that ROLL and nothing after it holds for about 45 seconds.

Distress beats the roll call: a station that hears a distress call, or raises one, abandons the roll call and drops the hold at once. And outside roll calls, everyone who follows a net listens to a bulk transfer to or from one of its members for its whole length (Section 17.6).

22.7 Messages and bulletins to the net

22.7.1 A message to the net

Any station can address a message to 0 followed by the net name, for example 0TETON. It is a reserved addressee, so the message is sent as a broadcast: one transmission, no ACK (Section 16.8). Every station that decodes it keeps it. What differs is who is alerted. A message from a member or from net control alerts net control and every member. A message from outside the net is usually a question for net control, so only net control is alerted, and told the sender is not a member. Stations not in the net keep either kind quietly.

A member that catches only part of a message to the net asks for the missing piece with the usual say-again for broadcasts (Section 17.8). A bystander does not ask for missing pieces of a broadcast from a member of the net it overhears.

22.7.2 The bulletin and the receipt roll

Some traffic every member must have, such as a change of frequency. For that, net control sends a bulletin of up to 200 characters, in two steps:

1. Net control sends the text as a message to the net, under a payload kind of its own so that every station shows it as a bulletin.
2. Once that has gone out, net control calls a receipt roll: a roll call of every member whose ROLL carries a bulletin tag, eight bits made from the bulletin's message id (Section 16.2.2) and never zero. Each member answers in its slot as usual and sets "has the bulletin" if it holds a message from net control to this net whose id gives the same tag; members remember the ids of the last eight such messages. A "got it" left over from an earlier bulletin therefore cannot be mistaken for the new one.

If anyone lacks the bulletin (a member that did not check in counts as lacking it), net control sends it once more and calls one more receipt roll. A member that said "has the bulletin" the first time keeps that credit. Then net control tells its operator the result: every member has it, or the callsigns of those still lacking it, who can be reached by directed mail. One bulletin is in progress at a time. If net control loses the seat, the bulletin cannot be sent, or distress interrupts its roll call, the operator is told it was not confirmed.

The receipt rides in the check-in a member would send anyway, and a receipt roll is a real roll call in every other way, so the net pays for one round of slots and not for a dozen ACKs keyed in the same second.

A member's bulletin. Any member can send a bulletin: its station sends the text to the net marked as one. Net control's station takes it up without its operator doing anything. It sends the text again as its own bulletin, with the member's callsign in square brackets in front, and runs the receipt roll on that. If another bulletin is still being confirmed, net control does not take the second one up and its operator is told. The member's station listens for net control's sending of its bulletin. If that does not come within one cycle it sends the bulletin again, and a third time two cycles after that; four cycles later it tells its operator. Net control takes a given bulletin up only once.

22.7.3 Standing orders

A bulletin is news. A net's standing orders are the opposite: what every member is to know and do for as long as the net runs, such as how to check in and what to do after losing the net. A station that joins late must get them.

Standing orders are therefore mail (Chapter 24): one mail addressed to the net that carries a "standing orders" mark, a subject of up to 60 characters and a text of up to 1,000. Every member that takes them files them with its other mail. On the air they travel under a payload kind of their own, so that none of the machinery that carries ordinary mail for other stations acts on them, and the mail server plays no part. Only the net's owner or the station running the net may post them. The post goes to the net once, as a message to the net, and a later post replaces the one before.

What is current. Every ROSTER frame carries eight bits that name the current standing orders, or zero when the net has none. The value is computed from the mail itself, so every station holding the mail computes the same one, and a station learns that standing orders exist from the same frame that tells it it is listed. A net control that knows a different copy was current under the net control before it names none.

Who is believed. A member takes a copy as the net's standing orders in two cases only: the owner or its net control sent it, or another member sent it and it is the very copy net control names. Anything else is refused and not kept. Like every net frame this rests on the sender's callsign; nothing is signed.

Getting a copy. A member that missed the post, holds an older copy, or joined afterwards sees a value in the roster entries that is not the value of what it holds. Every such member learns it from the same frame at the same instant, so none of them asks at that instant. Each:

1. waits one minute, because a post on its way usually arrives by then. A station listed within the last two cycles that holds no copy has nothing on its way and skips the minute;
2. picks a random time: one of four to eight slots (more when more stations have been heard lately), a little under two seconds apart, counted only while the channel is quiet;
3. sends one ROSTER REQUEST marked "standing orders".

The members that hold the current copy answer as they answer a request for the roster (Section 22.4.3): they line up by member number, the first sends the mail to the asker as one directed, acknowledged message, and the others stand down when they hear it start. An unanswered request is repeated on the roster request's schedule, each time after a fresh random time, so two stations that picked the same slot key together once and then come apart.

One request is normally enough for everybody. A member that lacks the copy and hears another member ask before its own slot comes does not ask: it waits, overhears the copy sent to the asker and keeps it. Only if a minute passes and no copy has come does it start over with its own wait and slot. A station that has just taken a new post ignores roster entries naming a different copy for two cycles, because net control's entries may trail the post.

An owner that is not running the net. Members that hear its post take it at once, but the net as a whole learns of it from net control's roster entries, so net control has to take it up. The owner's station watches those entries and sends its post again if they do not name it: after one cycle, then two cycles later. Four cycles after the third sending it tells its operator.

22.8 Mail held for a member who is off the air

A mail between two members of a net often goes to a station that is not on the air: switched off, out of range, gone for the day. Outside a net that mail waits in the sender's outbox, and the sender's station keeps asking the frequency for a relay for as long as it stays on. In a named net, net control keeps the mail instead and hands it over at the member's next check-in. The sender may switch off.

22.8.1 When net control takes custody

The sender's station does nothing new. Its direct transfer goes unanswered, it sends a relay REQUEST as for any directed message (Chapter 19), and nobody who hears the member offers. Net control steps in only when all of these hold:

• it is seated as net control of a named net, and the sender and the recipient are both on its roster;
• the mail has one recipient, no Cc and no outside address, and it went on the air in the clear (sealed mail is left to its addressees);
• net control has not heard the recipient in the last two minutes;
• the station asking is the mail's author, not a relay asking for help with its own hop of someone else's mail;
• net control is not itself a working gateway: a gateway leaves the mail at the mailserver by its own rule, and that comes first (Section 24.5.5);
• its relay setting is allow bulk (Section 19.9).

When it already has the mail. Every station keeps what it overhears, so net control usually heard the direct attempt. After decoding the REQUEST it waits until the last relay OFFER could have been heard: 18.5 seconds, plus 0, 0.5 or 1 second more, chosen from its own callsign and the mail's id. That puts its answer after every station that can reach the member and still inside the sender's search, so the sender hears it before giving up. If in that time it hears any OFFER, a SELECT or a RESULT for the mail, or another station's TAKEN, it says nothing: a relay or a gateway is taking care of it. It still records the mail as held, quietly, in case the relay never reaches the member. Otherwise it sends [presence][taken] with the status "held" (Table B.23).

When it does not. A later REQUEST invites stations that hold no copy, and a REQUEST for mail sent in the clear carries a bit saying so. On such a REQUEST net control offers "send it to me first", claiming no link to the recipient, in the late slots, so that any station that can reach the member is chosen first. If the sender chooses it, the mail comes across behind a HANDOFF frame (Section 19.7.2) and net control answers with TAKEN "held". A message that turns out not to be one it keeps is carried on as any helper would carry it, and net control offers for that message no more.

At the sender. The TAKEN closes the matter. The outbox row reads held, with the note "held by net control" and its callsign (Chapter 6). The station asks the frequency for that mail no more, chooses no relay for it, and never sends it again by itself; a fresh send is the operator's decision. A sender that missed the TAKEN asks again later, and net control answers again, no sooner than 15 seconds after its last TAKEN for that mail.

Net control's own mail to a member who is off the air is kept the same way without anything going on the air: the row reads held at once.

22.8.2 The "mail held" list

Net control tells its net what it is keeping with a short net document, the "mail held" list: for each mail the member's callsign, the original sender's callsign and the mail's id. It holds at most ten entries, 148 bytes in all, so it always fits one short transfer (Section B.14). Over ten, net control still keeps every mail; the list names the oldest ten.

The list works like the standing orders (Section 22.7.3). Eight bits folded from it, or zero when nothing is held, ride in every ROLL frame. Net control sends the list to the net whenever an entry is added or cleared, through its ordinary send queue and after any TAKEN of its own has gone, so the sender hears the TAKEN first. A mail kept quietly, behind a relay, is named only by the next ROLL. A member whose copy does not match the ROLL asks for the list exactly as it asks for stale standing orders, with the same wait and the same random slot, and believes a copy on the same terms: from net control or the owner, or from another member when it is the copy the ROLL names. Each member keeps the entries with its own records.

22.8.3 Delivery

Only the station in the seat delivers. A held mail becomes due when its member checks in at net control's roll call, however old the check-in, or, outside a roll call, when net control hears the member transmit after it began holding the mail, for five minutes after that hearing. A hearing from before the hold does not count: it is how net control knew the member was gone.

Net control delivers in the quiet part of the cycle: not during a roll call, its hold or the open check-in window after it. It sends the oldest mail first, one at a time, as an ordinary directed transfer, and not when the transfer and its acknowledgement would run into its next anchor. The transfer carries a FOR frame naming the original sender and the mail's id (Section 19.5), so the member files the mail under the person who wrote it. When the member acknowledges, net control sends TAKEN "delivered direct", and the sender's row, if it hears it, becomes sent. A delivery that is not acknowledged leaves the mail held. It never starts a relay search; the next chance is the member's next check-in or the next time net control hears it.

An entry clears only when the mail is delivered: by net control itself; by a courier whose TAKEN says "delivered direct"; by a relay whose RESULT reports delivery for a request net control heard; or when net control overhears another station's delivery fronted by FOR and the member's acknowledgement of it, such as a gateway handing over the copy from the member's mailbox. Held mail never expires (Section 20.4).

22.8.4 Leaving a copy at the mailserver

If a station with internet has been heard in the last two minutes and the member has not, net control hands each held mail that is not yet at the mailserver to a gateway, the way a courier does (Section 24.6.2). The gateway's TAKEN "deposited" marks the entry as also at the mailserver, and the sender's row becomes deposited. The entry stays on the list. The member can now collect the mail through any gateway anywhere, and net control still delivers it directly if the member checks in first. After such a direct delivery net control sends a short mailbox-control message, "delivered" (Section 24.9), to the gateway it deposited with, or to the gateway heard most recently, once one has been heard in the last two minutes; that gateway marks the member's copy delivered so it is not offered again.

22.8.5 When net control changes

A member that stands in for net control (Section 22.9) already holds the list, so the entries become its own. Its ROLL frames carry the same eight bits, and it delivers each mail from its own copy, which it has because it overheard the mail when it was sent. A stand-in that never heard a mail cannot yet fetch it, so that entry waits for a station that holds it. When the owner comes back and takes its seat again it keeps its own records and its list goes on from there.

When a net splits, two stations may each think they are net control. Both may keep the same mail and send TAKEN "held", and both may deliver it. The member files it once and discards the second copy, because a mail is known by its author and its id.

22.9 When net control goes quiet

When net control fades out or goes off the air, the net does not end: a member takes over, and the name, the roster and the member numbers stay as they were.

22.9.1 Noticing the silence

A member considers net control gone when it has heard nothing from it for three and a half cycles: 17.5 minutes at the normal period. An anchor, an anchor said again by a member, a ROLL or a TALLY all count as hearing it. The wait is that long because the station running a net is also the busiest station in it: its anchor waits its turn behind the net's own traffic and can come more than a cycle late. A shorter wait would have members trying for the seat of a net control that was there all along.

Only members take over. A member also holds back if it has heard another member's check-in within the same three and a half cycles: other members are answering roll calls, so net control is alive and merely a hidden station to this member.

22.9.2 Who takes over

The members do not vote on the air. Each works out, from the HELLO reports in its links map (Section 18.8), how widely it is heard by other stations; its own claims about itself do not count. To be considered at all, a member must itself report at least two stations it hears, and at least one of those must report hearing it. A station that cannot hear, or cannot be heard, never takes the seat, whatever is said below about who goes first.

The member that ranks itself first claims first; each lower rank waits three more seconds, plus a random amount of up to about two. A claim is simply an anchor with the next term and the cycle period the net was running on. Being an anchor, it also takes the random wait every beacon takes, up to between 9 and 18 seconds, so the order is a tendency and not a schedule. What makes it work is that a member that hears a claim before its own has gone out drops its own and follows the new net control. Two claims at nearly the same moment are settled like any two net controls (Section 22.10).

Once seated, a net control stays until it goes silent, steps down or gives way under those rules. A better-placed member does not replace it: the scores move with propagation.

22.9.3 The owner and the stand-in

Every member remembers the callsign of the net's owner. A member that takes over while the owner it knows has merely gone quiet does not become the owner. It becomes a stand-in: it runs the net exactly as net control does, and every anchor it sends says so, in one bit of a frame that is sent anyway.

It matters because of the shape HF gives a net. A net seldom loses its net control for good; it loses half its members for an evening. The skip changes, the far half hears three and a half cycles of silence and seats one of its own, and the net carries on in two pieces. When the band comes back the two pieces are one net, and the original should simply continue, whichever half is bigger:

• The owner never gives the net up to a stand-in. Three seconds after hearing the stand-in's anchor it schedules an anchor of its own, so that nearby members hear it soon.
• A stand-in that hears the owner's anchor gives way at once, follows the owner, and hands its roster back (Section 22.10.2).
• A member following a stand-in switches to the owner as soon as it hears it. A member following the owner ignores a stand-in's anchor for as long as the owner is still being heard.

The numbers come through intact. Everyone listed before the split is still on the owner's roster under the same number. A station that joined the stand-in's half during the split holds a provisional number, because the owner's half may have given the same one to someone else; when the owner returns it gives the number up, and the owner lists it afresh.

A station becomes the owner by opening the net, by being handed it in a plain goodbye from the owner, by taking the seat after the owner has stepped down, or by its operator's decision to take over a net it stands in for. A station that has only ever followed a stand-in and never learned whose net it is stands in too if it takes the seat. Across a restart an owner comes back as the owner and takes the net back from an ordinary stand-in at once; a stand-in comes back standing in.

Taking over for good. If the owner is gone for good, the stand-in's operator can make the net theirs. Nothing on the air changes except the stand-in mark. If the old owner comes back after that, the net stays with the station that took it over, and the old owner rejoins as a member. Both can tell from the air: the new owner is on the old owner's roster and its anchors carry a newer term, which only a station seated later can have. This is the one use the term has in a virtual net.

22.9.4 Alternates

The owner can choose who stands in for it by ranking up to three members as alternates. The first alternate's number rides in every anchor and all three ranks ride in the roster entries, so choosing them costs no extra air. When net control goes quiet, alternate 1 claims first, alternate 2 three seconds later, then 3, and every other member waits as many three-second steps as there are alternates before its own claim. An alternate's claim skips the beacon's random wait, though it still needs a clear channel.

Each member counts the silence from the last anchor it heard itself, so a member that missed one more anchor than the alternate can still claim first. The member running the net then hands it to the best-ranked alternate that answers its roll call, with the goodbye that names a successor. Only the owner, or a station the owner has asked to run the net, can rank or drop alternates.

22.9.5 Letting another station run the net

Net control is a job, done best by the station that hears the most members, and that is not always the station whose operator opened the net: a net opened from a valley is better run from the hilltop. So the owner can hand the job to a member and stay the owner. On the air this is the goodbye that names a successor (Section 22.9.9), with one mark added to the closing anchor: "by the owner's wish". Because of it:

• nobody forgets the owner, as they would after a plain goodbye;
• the member named takes the seat as a stand-in, and every anchor it sends carries both the stand-in mark and "by the owner's wish";
• the owner does not take the seat back when it hears those anchors. It is an ordinary member of its own net, under the number it had.

A station running the net this way can rank alternates and change the period and the net type, which an ordinary stand-in cannot. No alternate replaces it while it is on the air, and if a member that cannot hear it claims as an ordinary stand-in, the owner's choice keeps the seat whatever the two member counts are. If it goes quiet, the members choose as always, and whoever is seated then is an ordinary stand-in.

The owner's instructions. The owner keeps its powers from where it sits. Removing a member, ranking an alternate, changing the period or the net type, handing the job to a different member and closing the net each go to the station running the net as one INSTRUCT frame, alone: the owner's callsign, the net tag, what is to be done, and the member number or value it applies to. That station acts only for the owner it knows, and schedules an anchor three seconds later so the owner sees the result. There is no reply frame. If the change does not show in the anchors and roster entries, the owner's station sends the frame again after one cycle and a third time two cycles after that; four cycles later it tells its operator.

The owner and the seat. If the owner stops hearing the station that runs its net, that station may still be running it perfectly well for everyone else. After the usual silence the owner may claim the seat, as any member may, but it claims as a stand-in, and gives way if the station it handed the job to turns out to be there. Only its operator's decision to take the job back makes the owner claim as the owner, and the station running the net then gives way as a stand-in does when its owner returns.

22.9.6 Is this a good seat?

A station cannot tell by itself that it is a poor place to run a net from, but a roll call shows it. After each roll call it ran, net control's station tells its operator how many of the members called it heard itself, how many it counted only on another member's word, and how many nobody heard.

It also finds, from the members' HELLO reports (Section 18.7), the member that reports hearing the most other members. When at least three members were called, fewer than half were heard from the seat, and that member hears more of the net than this station does, the operator gets one notice naming it. The comparison counts who each station hears, not who hears it: a station with a big signal and a noisy receiver is heard by everyone and hears almost nobody. Nothing goes on the air and no seat moves: who hears whom changes by the minute on HF, so the station reports and a person decides.

22.9.7 Members who cannot hear net control

A member that cannot hear net control must not conclude that the net has lost it. Besides the check-in rule above, three things keep one net from becoming two.

After a hand-over, wait. A member that hears a goodbye naming another member as the next net control does not try for the seat itself, even if it never hears that member. It waits the usual three and a half cycles and two more, and any sign in that time that the net is being run settles the matter: an anchor, an anchor said again by a member, a roll call, a check-in, a tally.

The old net control says the new one's first anchor again. The station that handed the seat over listens for its successor's first anchor and repeats it once, as [presence][anchor] marked as said again. Such an anchor carries net control's own fields plus net control's member number, so a listener can tell whose it is. A station in the net takes one only from a member on its own roster, treats it as if it had heard net control itself, and remembers which member it came through.

A wrong claim is corrected by the members who hear both. If a member that cannot hear net control claims the seat, net control may never hear the claim, and nothing would ever tell the claimant it had lost. So each member that follows a live net control and decodes the claim gets ready to say net control's anchor again for the claimant. They do not all speak: they stand in a line by member number, three seconds apart, after first leaving three seconds for net control to answer for itself. The wait is counted only while the channel is quiet, so the order holds. The first one speaks; the rest decode its anchor and stand down. The claimant then gives way under the rules for two net controls and ends up a member again under the number it had.

Two things keep it from trying again straight away. For as long as it still hears the member it reaches net control through, it does not try at all: the members who do hear net control will deal with a real vacancy. And when the net control it gave way to runs the net by the owner's wish, each time it gives way doubles the silence it waits for before its next attempt, up to sixteen times the usual.

22.9.8 Casual and Safety Critical nets

A net has a type, chosen when it is opened and carried as one bit in every anchor. A Casual net is the default: an evening round-table on a busy band, where nothing is said twice. A Safety Critical net is for when every member has to be reached and the frequency is the net's to use: a search, a storm watch. The owner, or a station running the net by the owner's wish, can change the type while the net runs. The rest of this section happens only in a Safety Critical net. One more difference is in the mail chapter: a member of a Safety Critical net that has internet asks over the air for every mail whose recipient it has not heard, as well as leaving a copy at the mailserver (Section 24.4.2).

One member speaks for each station that cannot hear net control. A station gets such a member in one of two ways, each of which already has a single speaker: the member passed the station's JOIN along, or it corrected the station's claim to the seat. A member speaks for at most four stations. For each of them it:

• says net control's anchor again once every cycle, with the station's own roster entry behind it. The first three times it adds net control's entry and its own, so that a station with no roster at all learns whose net this is, who speaks for it, and that it is listed. Several members doing this take turns by member number, three seconds apart, counting only while the channel is quiet;
• says again what the station sends to the net, so that net control hears it, and what net control sends to the net, so that the station hears it.

The station takes roster entries, and the value that names the standing orders, on that member's word, and asks it once for the whole roster. At a roll call it places its slot from a check-in it can hear and answers there; the member hears the answer and names it in a check-in of its own.

A member stops speaking for a station when it has not heard it for half an hour, when the station leaves, or when the net stops being Safety Critical. A station taken on by passing its JOIN along is also let go as soon as net control lists it plainly, and whenever the net gets a new net control, because it may hear the new one. If it cannot, it will claim the seat sooner or later, be corrected, and be taken on again; one taken on that way is kept.

Net control repeats what members say. Every text message to the net of up to 400 bytes that net control copies from a member, it sends once more itself, with the first sender's callsign in square brackets in front. Two members that cannot hear each other but both hear net control get each other's traffic this way. Each station keeps track of the messages it holds and the ones it has said again, so nobody is alerted twice and nobody repeats twice. A message to the net is thus sent twice, and three times when a station that cannot hear net control is involved, which is air time a Casual net on a shared frequency should not spend.

22.9.9 Stepping down, and the named successor

A net control that is leaving says so with one goodbye, [presence][roster][anchor]: its own roster entry, then a closing anchor that says the net goes on. Members that hear it cut the three and a half cycles to five seconds and then choose a new net control as above. If a roll call is running, net control finishes it first. If the goodbye then cannot go out within 15 seconds because the channel stays busy, the station stops being net control anyway.

Stepping down is not leaving. The entry in the goodbye puts the departing station on every member's copy of the roster, and so on the next net control's, under the number it had. If its entry has not come round one cycle after it hears the new net control, it sends a JOIN like any returning member.

An owner that steps down gives the net away: the next station to take the seat is the owner. After a stand-in steps down the owner is who it was, and the next member seated stands in too.

Net control can also name its successor: the closing anchor carries that member's number. The roster entry goes ahead of the anchor on purpose, because the members count their five seconds from the closing anchor and a frame after it would eat into the successor's head start. When the five seconds are up the named member claims first, with no rank wait, no random delay and no beacon wait. Every other member waits one extra three-second step, hears the successor first and follows it. The naming lapses after two and a half cycles, or as soon as any net control is heard. A successor named by the owner without the "by the owner's wish" mark becomes the owner.

22.9.10 Closing the net

Net control's operator can close the net, and so can the owner through an INSTRUCT. Closing sends [presence][anchor] with a closing anchor that says the net is closed. Every station that hears it from its net control forgets the net: members lose their numbers and bystanders stop following it. A standing join survives, so those stations ask again the next time a net of that name is heard.

22.10 Two net controls under one name

Two net controls under one name happen in two ways. The common one on HF is a net that propagation split. The rarer one is two operators out of each other's earshot each opening TETON: two owners, two different nets. Each net control that hears the other applies the same tests in the same order, so exactly one gives way:

1. Between two stand-ins, one that runs the net by the owner's wish keeps the seat.
2. Between an owner and a stand-in, the owner keeps the seat.
3. Between two owners of the same net (one took it over while the other was away), the one that took it over keeps the seat.
4. Otherwise the live count decides.

22.10.1 The bigger live net keeps the seat

A net control's live count, the number in its anchor, is the members on its roster it has heard within the last three and a half cycles, plus itself. When both net controls own their nets, or both are ordinary stand-ins, the one with the higher live count keeps the seat. If the counts are equal, the alphabetically lower callsign keeps it. The term is not consulted. Both sides read the same two numbers and the same two callsigns, so both reach the same answer, and the one that keeps the seat schedules an anchor three seconds later so that nearby members hear it soon.

When the other owner is not on its roster, a net control knows two different nets have met, and tells its operator which net keeps the name. Renaming a net, or agreeing which net to run, is the operators' call.

Members apply the same tests to a rival anchor for their own net, comparing its live count with the one their own net control last announced. A rival that would win is followed at once. One that would lose is ignored while their own net control is still being heard, and remembered: if their own net control then goes silent for three and a half cycles, they follow the rival.

22.10.2 Handing over the roster

The net control that gives way sends the winner everyone on its roster who has not left:

[presence][join through m1][join through m2]...[join through m15]

Each frame is a JOIN THROUGH with one member's callsign. One transmission carries up to fifteen, the most a chain with no opener holds (Section B.3); a longer roster goes out as further chains five seconds apart. The former net control also sends a JOIN for itself.

The winner lists the handed-over members as heard through, with new numbers after its own members', whose numbers stand. Each member of the losing net sees that its net is run by a station that was not on its roster, which tells it this is a merge and not an ordinary change of net control. It drops its old number and roster and waits one cycle before sending a JOIN of its own, so the hand-over can list it first.

A stand-in handing back to the owner sends the same chain with a different outcome. Members listed before the split are already on the owner's roster and keep their numbers. Those the stand-in listed during the split get fresh numbers, and a member the owner dropped for silence during a long split gets its old number back.

22.11 Leaving, and dropping off after silence

There is no separate frame for leaving. A member says goodbye with a check-in that carries the "last check-in" mark.

Outside a roll call it sends one CHECKIN at the next free moment, marked "last check-in" and "out of turn", and forgets the net without waiting for confirmation. Net control accepts a check-in from a listed member outside a roll call for exactly this purpose: it marks the entry as left, keeps the number for a possible return, and sends the changed entry behind its next anchor. Members that decode the goodbye mark the row on their own copies straight away. During a roll call the goodbye rides in the member's own check-in, in its numbered slot; the member then forgets the net but goes on holding its routine traffic until the roll call is over. If its slot has gone by, the goodbye goes out after the roll call.

Stations also just disappear. Once a cycle, net control looks for members listed more than two hours ago that have shown no sign of life for two hours: it has not heard them, and no check-in has come from them or named them. A member that net control never hears directly but that the others vouch for at every roll call therefore stays. The silent ones are marked as left, numbers kept. A stand-in never drops the owner this way. Net control's operator can also remove a member sooner.

A member that hears its own entry come round marked as left, although it never said goodbye, takes it at its word: it stops answering roll calls and becomes a bystander, and its operator is told. A standing join for that net is cancelled too, so the station does not ask straight back in; the operator can join again by hand, and gets the old number back.

22.12 Members first

Three cooperative jobs spread their answers over time slots so that they do not collide: offering to relay (Chapter 19), carrying someone else's mail as a courier, and answering "who has mail for me?" (Chapter 24).

While a virtual net is alive on the frequency, each of those sets of slots is cut in two. A station helping its own net's traffic takes one of the early half; every other helper takes one of the late half. Nothing else about the timing changes. For a relay OFFER, which ordinarily has nine slots, a member helping a member answers in one of the first four and anyone else in one of the next four; the ninth goes unused. The station that asked chooses about two seconds after the first OFFER arrives, and volunteers still waiting stand down when they hear its choice, so in practice a member's offer is the one chosen.

Inside each half, a large net does not crowd the slots. When five or more stations could answer, each works out its own place in line and normally only the best two speak (Section 19.3.4). A member ranks itself among the members, and on an equal signal the lower member number is ahead.

"Its own net's traffic" means the message is addressed to this station, or this station is in the net and the message's sender or addressee is a member or net control. Everything else, including a bystander helping the net, is late. "Alive" means the station has heard its net's anchor, or another virtual net's anchor, within the last three and a half cycles.

The result is members first, not "members only": a bystander that is the only station able to help still answers, just later. Distress traffic is never affected by net membership.

22.13 What to remember

• A virtual net is an optional layer on a peer-to-peer channel. It has an owner, whose net it is, and a net control, who runs it; they are usually the same station and need not be.
• Net control sends an anchor once a cycle with up to three roster entries behind it. Members are numbered in joining order, up to 127, and keep their numbers.
• A roll call is one ROLL, one single-frame check-in per member in constant 1.2-second slots, a TALLY, a tail of second tries and vouches, a final TALLY and three open slots. Members hold routine traffic meanwhile; everyone else keeps off that one announce channel.
• A bulletin is followed by a receipt roll and one re-send. Standing orders are one mail every member keeps; every roster entry names the current copy.
• After three and a half cycles of silence a member takes over as a stand-in, and the owner gets the net back when the two hear each other. Two different nets under one name go to the one that hears more of its members, then the lower callsign, never the term.

The screens for declaring, hearing and acknowledging an emergency are described in Chapter 5. This chapter is about what the station does.

23.1 The rule that outranks every other rule

Everything else in mLink is engineering, tuned for the typical case. The emergency service has three rules that are not open to that kind of trade.

1. Never make emergency decoding worse. No change anywhere in the station may cost the emergency receiver even a marginal amount of sensitivity, whatever it buys elsewhere and however rarely the loss would bite.
2. Nothing blocks an emergency send. There is no form to complete, no field that must be valid and no confirmation that must be understood. The client may warn ("no position, rescuers cannot locate you directly") but it never refuses, and neither does the station.
3. Every field is optional. Position, the nature of the trouble, how many people, who you are: each has a "not provided" value, and a call with nothing filled in is still a complete distress alert.

23.1.1 Sign-in and roles

Rule 2 reaches the station's access control (Chapter 7). Five commands count as emergency commands: declaring an emergency, cancelling one, acknowledging one, reading the lists of emergency codes, and listing the stations in distress. All five need only the lowest role, operator. And they still run for a session that an administrator's decision would otherwise close: an operator whose account was suspended or removed while they were signed in (the session then ends at their next ordinary command), and a walk-up guest who was signed in when guest access was switched off.

The exemption covers a session that already exists. On a station with walk-up access switched off, a stranger who walks up afterwards cannot sign in at all, and so cannot send anything, a distress call included.

23.2 What "comes first" means on the air

The emergency service has its own slice of the passband, the emergency region (Section 8.3). The regions do not overlap in frequency, so the receiver listens to all of them at once, and nothing else the station does switches emergency decoding off. The one limit is physical: a radio cannot hear while it transmits (Section 3.5).

On the transmit side, "emergency comes first" means these things and no others.

• A distress pass does not wait for the channel. It is not held by other stations' reservations, it does not wait for the receiver to finish a frame it is collecting, and it skips the last listen before keying (Section 17.4). The acknowledgment sent in the emergency region is treated the same way.
• Sending a distress call cuts off your own transmission. If the station is in the middle of transmitting anything else when the operator sends, that transmission stops at once and the first pass goes out in its place, a fraction of a second later. The message that was cut goes to Drafts with the note "interrupted by emergency broadcast"; it is not sent again unless the operator sends it. The station it was going to recovers as it does from any transmission that stops part way (Section 16.9). Only the operator's own send does this. A repeat pass waits for the transmitter, and emergency traffic already going out (an earlier pass, a repeated call, an acknowledgment) is never cut.
• The listen-only setting does not apply. A station set to listen only still transmits its own distress call.
• An active SOS quiets your own routine traffic. The gap between passes belongs to the station that may be answering you. Your station holds its queued messages and skips its routine PRESENCE beacons and position reports until the SOS is cancelled or acknowledged. Nothing is dropped. Replies you owe to another station still go out.
• A heard emergency does not stop other people's traffic.

23.3 What an emergency message carries

The emergency region has its own slow modem, NB8FSK, which delivers one emergency frame of 11 bytes in 10.24 seconds (Chapter 10). An emergency message is 1 to 15 of those frames sent back to back in one transmission. Every frame starts with two header bytes: which frame this is and how many the message has, and the incident number that ties the frames of one message together. The other nine bytes are content. The layouts are in Section B.17; here is what the fields mean.

23.3.1 Frame 0: the whole emergency in nine bytes

Frame 0 is the only frame that must exist, and it is complete without the others. It packs what a rescue coordinator acts on into 72 bits:

• Position, in steps of about 10 and 20 metres, with two companions: where it came from (a GPS fix, entered by hand or picked from a map, dead-reckoned or last known, or no position at all) and how far to trust it, in classes from about 10 m to worse than 10 km. A GPS fix and "somewhere in this grid square" look the same as numbers; the accuracy class tells the rescuer how wide to search.
• Environment and nature, two short code lists described below.
• Severity: unknown, Mayday (immediate threat to life), Pan-Pan (urgent, no immediate threat) or advisory.
• People involved and mobility, as classes, not counts (three or four people; five to nine; can move, needs help, cannot move). A rescuer sends the same boat for five people as for seven; an exact count goes in the text.
• Incident age: fresh (under about 15 minutes), recent (under an hour), sustained (under six hours) or prolonged.

The operator does not set the incident age. The station works it out from the time since the declaration before every pass, so a listener who first hears the call three hours in learns straight away that this is a survival situation, not a fresh accident.

23.3.2 Environment and nature

mLink asks two questions where many distress systems have one flat list, because a dispatcher decides two things. Which team to send depends on where the casualty is: on water, in wilderness, on a mountain, on a road, in an aircraft, in a building or underground. What that team must bring, and how fast depends on what is wrong: illness, injury, exposure, entrapment, fire, hazardous material, lost or stranded, violence, or disabled and adrift.

The station daemon owns these lists and hands them to any client that asks, so every screen uses the same words. A code the receiver does not recognise is shown as that list's "not provided" entry; it never causes an error.

23.3.3 The text frames: who you are and what is happening

Every frame after frame 0 carries thirteen characters of text, from one fixed set of 45: the space, the digits, the letters A to Z, and . , - / ? : + #. Lower-case letters are sent as capitals. Any other character is left out, never replaced and never a reason to refuse; the station tells the client how many it left out. Thirteen characters from that set fit exactly in nine bytes.

The text is two fields, identity and detail, sent as one run of characters: the identity, a separator, the detail, then padding to fill the last frame. The separator is a 46th value that stands for no printable character, and the padding is the same value. An identity with no detail carries no separator, so a 13-character identity takes one text frame, not two.

Fourteen text frames give room for 182 characters: identity, separator and detail together. Identity is free text (a callsign, a vessel name, a person's name); nothing checks that it looks like a callsign. If the text is too long, the identity is kept whole, up to 181 characters, and the end of the detail is cut off.

23.3.4 How an incident is recognised everywhere

Two numbers name an incident across the network. The first is the one-byte incident number in every frame header. The station keeps a counter that survives restarts and adds one for every declaration, so a station that reboots does not reuse a number listeners may still remember.

The second is a 16-bit check value computed over the decoded content: frame 0 with the incident age treated as "fresh", then the identity and detail text. The sender and every station that decodes the call arrive at the same value, and leaving the age out means it does not change as the call ages. The pair (incident number, check value) is what an acknowledgment must match to stop the call, and how every station recognises a repeat of an incident it already knows.

23.4 An active distress call

Declaring an emergency does not send one message. It starts the SOS beacon: the station builds the frames, transmits the first pass at once, and keeps repeating the same frames until one of three things happens:

• the operator cancels it;
• the operator declares again, which replaces it with a new incident under a new number;
• an acknowledgment for exactly this incident is heard.

The beacon never gives up by itself. The call is written to the station's database before the first pass, so a station that loses power or restarts while the SOS is active starts repeating again without anyone re-entering anything, with the incident age still counted from the original declaration.

Repetition is how a whole message gets through at −17 dB SNR@3k when a single pass is dependable only to about −15 (Section 10.8). And a neighbour that was transmitting during one pass heard none of it; it will hear a later one.

23.4.1 When the next pass goes out

The schedule has two rules, and the later of the two wins.

1. A repeat rule: the next pass is due 75 seconds after the current pass was keyed, plus a random 0 to 15 seconds.
2. A listening rule: after the station stops transmitting (anything at all, not only the SOS), it listens for at least 15 seconds, plus a fresh random 0 to 15 seconds, before the next pass may key.

The random parts keep two stations in distress from falling into step and colliding on every pass. The listening rule exists for the acknowledgment described below: the answer to an SOS is one ten-second frame that must fit in the gap between passes.

For a short call the repeat rule decides: a one-frame call takes about 10 seconds, repeats every 75 to 90, and leaves 65 to 80 seconds of listening. For a long call the listening rule decides: an eight-frame call is about 82 seconds of air, so its gap is 15 to 30 seconds, and the longest call, 15 frames, repeats about every 169 to 184 seconds.

23.4.2 Cancelling

Cancelling stops the passes and clears the stored call. Nothing is transmitted to say so: there is no "cancel" frame. Other stations notice only that the passes have stopped, and their rebroadcasts stop too, because a station rebroadcasts again only while it keeps hearing the call.

23.5 Hearing an SOS

A decoded emergency frame must pass two cheap checks before the station acts on it, so that noise which happens to look like a frame cannot raise an alarm (Section 10.7.2). Those checks never judge the values in the frame: a strange position, an unknown nature code or an empty identity all pass.

23.5.1 Putting the message together

Frames are collected by incident number, in any order and across passes, and an unfinished message is kept for as long as it takes. The station follows up to six incidents at once; a seventh takes the place of the one that has been quiet the longest, so a new distress call is never turned away because a table is full.

A complete message is reported exactly once. Later passes are recognised as repeats, and each one tells the station that the incident is still active, which matters for rebroadcasting and acknowledging.

23.5.2 What a completed incident sets off

A newly completed incident, heard directly or through another station's rebroadcast, is stored in the station's message log with every decoded field, so a station with no client connected still holds it. It raises a critical notification on every connected client that spells out the incident in one line, including which station passed it on, if any. A gateway also hands it to the mail server, as described at the end of this chapter, and a directly heard incident is queued for rebroadcast.

If what the station hears is its own distress call coming back through another station's rebroadcast, nothing is stored; the operator is told that the call was heard and rebroadcast, and by whom.

23.6 Acknowledgment: how the repeats stop

The beacon keeps going until somebody takes responsibility. In mLink terms that somebody is an Authoritative Station. That is not a special kind of station and not a setting: it is whichever operator passed the emergency to the people who can respond (the coast guard, a sheriff's dispatcher, a search team) and says so on the air. Any signed-in operator may acknowledge an incident the station holds, adding a line of contact text (agency, reference number, phone).

The station records the acknowledgment at once, drops any rebroadcast of that incident it had waiting, and sends the acknowledgment two ways.

23.6.1 The announce-band acknowledgment

The first copy is a short chain in the announce region: the station's PRESENCE, then frames carrying the incident number, the check value and up to 118 bytes of contact text. It is sent once, as voluntary traffic, when the station is idle and an announce channel is free.

Every station that hears it records who acknowledged and the contact text, drops any rebroadcast it had waiting, and never rebroadcasts that incident again. If the station in distress hears it, and the number and check value match its own call, the beacon stops and the operator is shown who acknowledged and how to reach them.

23.6.2 The emergency-region acknowledgment

The announce region needs about −5 dB, but the SOS can be heard at −17 dB. In between, you can hear the distressed station perfectly well but it cannot hear your announce traffic at all. So the acknowledgment is also sent on the distressed station's own terms: as an emergency frame, decodable as deep as the SOS itself.

It is sent as a single frame 0. It carries the incident number and check value it answers, and two bits that mark it as an acknowledgment, so a receiver can never mistake it for a new distress call. Its own header carries the answered incident number with every bit flipped, so it cannot be confused with the frames of the call it answers. It carries no contact text, although the format has room for text frames: several frames might not fit in the distressed station's listening gap, and one frame always does.

This frame is not sent at the moment the operator acknowledges, because the distressed station is probably in the middle of a pass and deaf. The acknowledging station waits for the end of the next pass it hears:

• if it decodes the pass's last frame, it keys at once, as the distressed station stops transmitting and starts listening;
• if it decodes only an earlier frame, it works out from the frame number when the pass will end (frames follow each other every 10.24 seconds) and keys 0.4 seconds after that.

It answers again at the end of later passes, no more than once a minute, for as long as it keeps hearing them. If a second operator acknowledged the same incident, whichever station hears the other's emergency-region acknowledgment first stands down, so the distressed station is answered by one voice and not a chorus.

A station in distress that hears only this frame stops its beacon just the same. It cannot name who answered, so the operator is told that "an Authoritative Station" acknowledged.

23.7 Other stations pass it on

The emergency region is slow and deep; the announce region is fast and heard by everyone near a station. A station that decodes a distress call directly therefore repeats it in the announce region, so that everyone within reach of that station learns of it too, including stations with a poor path to the person in distress.

The rebroadcast is one chain: the station's own PRESENCE, then up to 15 EMERG frames (Section B.10.1). They carry the incident number, the check value, the nine bytes of frame 0, and as much text as fits, packed as in the emergency region, which leaves room for 156 characters. Identity is kept whole; detail may be cut short. The check value is carried as first computed, never worked out again, so a copy with shortened detail still names the same incident. Receivers show the incident as heard "via" the rebroadcasting station.

Rebroadcasting is on by default and has its own setting, which takes the technician role to change. A station with it switched off, or set to listen only, still hears, stores and reports every incident to its own operator. The relay policy levels (Section 19.9) do not affect it.

23.7.1 Not everyone at once

If ten stations hear the same SOS, ten rebroadcasts would be nine too many, and ten stations keying at the same instant would destroy each other. So each station waits a hold-off that differs from station to station, and drops its own rebroadcast if it hears someone else's, or an acknowledgment, first.

The hold-off is at least 5 seconds. On top of that the station takes one of a set of slots 1.5 seconds apart, plus up to 0.45 seconds within the slot. Both come from scrambling the station's callsign together with the incident's check value and the time of the incident's last rebroadcast, so neighbours land at different times without any coordination, and two that share a slot once are unlikely to do so again. There are 8 slots, growing to 16 with the number of stations heard in the last half hour, so the wait runs from 5 seconds to about 16 on a quiet band and to about 28 on a busy one. A slot is longer than it takes to send and decode an announce frame, so a station in a later slot hears the earlier rebroadcast in time to drop its own.

When its moment comes, the station must be idle, hear no signal, and have an announce channel free. If not, it waits a quarter of a second plus a short random time and looks again, so that stations held up by the same busy channel do not all key on its first quiet instant.

Three more rules keep the flood in check:

• Only a station that heard the call directly rebroadcasts it. A rebroadcast is never rebroadcast again.
• While the distressed station keeps repeating, the incident may be rebroadcast again, but not within five minutes of the last rebroadcast the station sent or heard.
• Once an acknowledgment has been heard, nobody rebroadcasts that incident again.

23.8 From the air to a dispatcher

Hearing an SOS helps only if a person who can start a rescue finds out. Many mLink stations are also gateways to a mail server (Chapter 25), and those stations hand every incident they hear to it.

When a station completes a new incident, direct or through a rebroadcast, and its own link to the mail server is up (enabled, registered, and in contact within the last ten minutes), it writes the incident up as an ordinary mail message and deposits it at the server. The subject reads like SOS Immediate threat to life (Mayday): Medical (illness) / Water / marine; the body lists every field of the alert, the identity and the detail, then the incident number and check value and a note on how to reply. Depositing costs no air time and never delays alerting or rebroadcasting.

The server files the message in a reserved SOS mailbox, so nothing is lost even if nobody is watching yet, and copies it to everyone subscribed to the reserved sos mailing list. Subscribing to that list is how an administrator or trained dispatcher volunteers to receive incidents.

Acknowledgments follow the same path. A gateway that deposited an incident and later hears it acknowledged, or whose own operator acknowledges it, deposits a follow-up, ACKNOWLEDGED SOS ..., naming who acknowledged and their contact text.

If the station in distress is itself a working gateway, it deposits its own incident as soon as the beacon starts, alongside the radio call, and tries again at each pass until a deposit has been handed off. Its message is the one any gateway that hears it would write, so the copies merge.

23.8.1 Two-way SOS

The incident mail is addressed to the SOS mailbox and, if the identity is a valid callsign, also to that callsign. That second address is the return path. A dispatcher who replies to all puts an answer in the distressed station's mailbox at the mail server, and ordinary mail delivery carries it over the radio from there: any gateway that hears the station offers it the waiting mail (Chapter 24). The station answers with ordinary mail.

This is why a callsign is the best identity to give. A name or a vessel description still reaches the dispatcher, but it cannot be addressed, so replies have nowhere to go.

23.9 What to remember

• Three rules are absolute: nothing may make emergency decoding worse, nothing blocks an emergency send, and every field is optional. An empty call is still a valid distress call.
• An SOS is a beacon, not a message: it repeats until cancelled, replaced or acknowledged, survives a restart, and always leaves at least 15 seconds of listening after each pass so an answer can get in.
• Frame 0 alone is a complete alert; text frames add identity and detail, thirteen characters each. Incidents are recognised everywhere by their number plus a check value over the content.
• Acknowledging sends two copies: one with contact text in the announce region, and a single emergency-region frame keyed the instant the distressed station's pass ends, so the answer reaches as deep as the call.
• Stations that hear a call directly rebroadcast it in the announce region after a hold-off and stand down if someone else does it first; gateways deposit it in the SOS mailbox, and a callsign identity lets a dispatcher reply.

The windows for writing, sending and collecting mail are described in Chapter 5; the states a mail passes through in the Sent list are in Chapter 6.

24.1 Mail is built from what is already there

A mail is an ordinary message with a particular payload shape. It travels by the same transfers, the same acknowledgements and the same relay handshake as anything else. On top of that sit four announce frames that exist only for mail (TAKEN, QRY, AVAIL and GET), three small payloads for mailbox business, and a server on the internet, the mailserver (Chapter 25), that holds mail for stations that are not on the air right now.

The design goal fits in one phrase: lazy on the air. Never key the radio for something the internet, another station, or plain patience can do instead. No station opens a "session" with anything.

24.2 What a mail is made of

A mail is the payload of an ordinary message whose kind byte says "this is mail" (Section 21.3), so it is compressed, and sealed when encryption is used, like any other payload. In the order they are packed, a mail holds:

• a version number and a byte of flags saying which of the optional parts below are present;
• the recipients: up to 16 To callsigns and up to 16 Cc callsigns, six bytes each (Section 14.6);
• optionally up to 8 outside addresses of up to 63 bytes each, for recipients that are not callsigns: a mailing list or an internet email address;
• optionally an in reply to: the two-byte message id of the mail being answered, enough for a client to show a thread;
• optionally a sender name of up to 31 bytes, such as "Tyler D.";
• optionally a subject of up to 255 bytes;
• optionally an author and a position, up to 31 bytes each, saying which operator at a station with several operators wrote it (Chapter 7);
• the body, up to 65,535 bytes, which may be empty;
• optionally up to 16 attachments, each with a file name, a one-byte type and its length;
• optionally, and always last, a two-byte sender tag.

A part that is absent costs nothing. One flag is not a part at all: it marks the mail as the standing orders of the virtual net it is addressed to (Chapter 22). The sender tag is added by a station that is registered at a mailserver. No station on the air can check it; it lets the server refuse a mail that some other station hands in under your callsign (Section 25.5.1).

24.2.1 Two kinds of "to"

There are two addresses on every mail, and keeping them apart is the key to the whole chapter.

The first is the on-air addressee: the station the transmission is aimed at, the one whose acknowledgement the sender waits for. It rides in the transfer's opening frames, not in the mail. The second is the list of recipients: the To and Cc callsigns inside the mail, the people the mail is for.

Usually the two agree. But they are allowed to differ, and mLink uses the difference as a signal. A transmission aimed at a gateway, carrying a mail whose recipients do not include that gateway, means "please carry this onward". A transmission aimed at nobody in particular, the all-stations address 0CQCQCQ (Section 14.7), carrying a mail whose recipients are real callsigns means "anyone: can you get this to the mailserver?" No marker byte says so; the mismatch between the two addresses is the request.

Outside addresses get no special treatment on the air. Only the mailserver acts on them, when the mail reaches it.

24.2.2 Attachments

The type codes cover plain text, JPEG, PNG, WAV, Opus, MP4, PDF, JSON, HTML, a generic "binary", and one type of mLink's own: a batch of map objects that the recipient can put on their own map (Chapter 28). A receiver treats a type code it does not know as plain binary.

24.2.3 How big a mail can be

The format allows an attachment of four gigabytes. The air does not. A mail must fit in one transfer after it has been compressed and wrapped: 64,004 bytes to a single station (Section 15.4.4), and 6,028 bytes when it is sent to everyone, because a broadcast gets no checkpoints and so may not run past one segment (Section 15.5.3). Text shrinks a good deal on the way; a picture or a PDF barely shrinks at all, because it is compressed already. A mail too big for any transfer is marked failed with the reason.

24.3 Where mail lives on a station

A station keeps every mail it decodes: mail addressed to it, and also mail it overheard between other stations, which is filed quietly in case somebody later needs a station that holds it. Beside the fields it keeps the exact packed bytes that came off the air. When the station later carries somebody's mail onward, it sends those bytes unchanged, so every copy of a mail everywhere is byte-for-byte identical. The same author with identical bytes is one mail, however many ways it arrived. Nothing is removed automatically; the station has a command to delete mail older than a given date, and the operator decides when to use it.

24.4 How a mail finds its way out

A station works down a short list of ways out. The rule of the list: prefer the way that uses less air and fewer other stations, and fall back only when the better way is not there.

24.4.1 By internet, on request

An operator whose station is registered at a mailserver can ask for a mail to go by internet. The station hands it straight to the server; nothing is keyed, and the mail is marked deposited when the server accepts it, or failed if the server cannot be reached or says no. A radio-only recipient still gets the mail over the air later, from whichever gateway hears them (Section 24.8), so a mail sent this way still has to fit a radio transfer to arrive.

24.4.2 When your own station is a gateway

A station that is itself a working gateway (Section 24.5.1) asks one question before it sends a mail by radio: has the recipient been heard in the last two minutes? If so, the mail goes over the air as below. If not, there is no point keying up for a station that is probably not listening, so the station deposits the mail at the mailserver at once and airs nothing. The mail shows as deferred while the deposit is under way and deposited when the server has it.

There is one exception: mail for a station in your own net. A net exists so that its members reach each other, so here the station does both. It leaves a copy at the mailserver, and it also asks the frequency for a station to carry the mail over the air, as any relay search does (Chapter 19), asking again after a growing wait until the mail is delivered or its lifetime ends. The row reads "copy left at the mailserver; asking the net to carry it over the air". "In your own net" means any of three things: the recipient is on the roster of a net you are a member of; a member of that net has said within the last 30 minutes that one of its other radios hears the recipient (Section 18.7); or your net is Safety Critical, in which case every recipient you have not heard counts. When the mail arrives over the air the station tells the mailserver its copy was delivered, so the recipient is not offered it again. If nobody carries it before the lifetime ends, the row rests as deposited.

Should that deposit fail, the mail goes back in line and is sent by radio exactly as a station without internet would send it; the station does not try the server a second time for that mail. A deposit cut short by a restart leaves the mail as a draft (Section 20.7).

A gateway's own pickup broadcast (below) goes the same way: it deposits the mail itself and airs nothing. Mail addressed to a virtual net or to an area on the map is not a pickup and is sent over the air as usual.

24.4.3 Straight to the recipient

With one recipient, the transmission is aimed at that recipient and sent like any other directed message: the station picks how to send it from the size and its estimate of the link (Section 15.5.2), sends, and waits for the acknowledgement. The acknowledgement is the proof of delivery; the mail is sent.

24.4.4 When the direct transfer goes unanswered

If the recipient never answers, the station asks for a relay, as it would for any directed message (Chapter 19). Mail adds one more kind of helper to that search: a gateway that overheard the mail. What it does is described under overheard mail; the outcome is a mail marked deposited, and a search that ended in success.

In a named net there is one more rung. When nobody who hears the recipient answers and both stations are on the net's roster, net control keeps the mail for the recipient and delivers it at their next check-in; the mail is marked held (Section 22.8).

24.4.5 When the link is too weak to try

Sometimes the sending rules say a direct transfer of this size cannot work at all (Section 15.5.5). For mail that is not the end. The station tries, in this order:

1. If it is itself a working gateway, it deposits the mail. No air. If the server refuses or cannot be reached, the mail is failed.
2. Otherwise, if it has heard a gateway within the last two minutes, it aims the mail at that gateway instead of at the recipient, choosing the most recently heard one. The gateway sees a mail not addressed to it, recognises the request, and deposits it.
3. If neither is possible, the mail is failed, with the size and the rule that refused it in the note. It does not sit in a queue pretending.

24.4.6 The pickup broadcast

A mail for several recipients, or one addressed to 0CQCQCQ, goes out as a pickup broadcast: a transmission aimed at everyone, carrying a mail whose recipients are real callsigns or outside addresses. It means "anyone who can: take this to the mailserver". It must fit the broadcast limit of 6,028 bytes; a bigger mail must be sent to one station.

The broadcast airs and the mail shows as sent, which for a broadcast means only that it went out. The station then listens for somebody to claim it. The next sections say who can.

24.4.7 Encrypted mail takes only the direct ways

A mail sealed with encryption (Section 26.3) goes over the air and nowhere else. The mailserver, a gateway and a courier all work by reading a mail, to find its recipients and to file it, so none of them is offered one: no deposit, no gateway in place of the recipient, no bundle, and no courier or gateway acts on a sealed mail it happens to be able to open. A request to send a sealed mail by internet is refused. This is today's limit, not the intended design: delivery help from stations and a mailserver that cannot read the mail is planned and not yet built (Section 25.6).

24.5 Custody: who is holding your mail

Custody is responsibility. A station that takes custody of a mail is saying: "I have stored it somewhere safe, and it is my problem now, not yours." In mLink the only safe place that counts is the mailserver, and the only station that can claim custody is one that has just put the mail there.

24.5.1 Gateways

A gateway is any station whose link to a mailserver is switched on, registered and recently proven. It says so with the gateway flag in every PRESENCE it sends (Section 14.2.1), and every station that hears it notes the flag in its heard list. It needs no special hardware and no special licence, only a working internet connection.

The proof is kept fresh by the gateway itself: it looks in its own mailbox every five minutes, and also 15 seconds before each of its own beacons, and brings in whatever is there. The look before a beacon is why a station with its own internet connection is not offered its mail over the air: by the time another gateway hears the beacon and looks, the mailbox is empty. If a request to the server gets no answer at all, the gateway stops showing the flag at once and tries again a minute later. A server that answers with a refusal is plainly still there, so a refusal does not stop the flag.

24.5.2 The custody rule

A gateway takes custody of a mail when all of these hold:

• it received the mail as a pickup broadcast, or in a transmission aimed at the gateway itself;
• the gateway is not one of the mail's recipients (mail for you is yours to keep, not to forward);
• the mail has somewhere to go: at least one To, Cc or outside address;
• it has not already heard the same mail claimed.

It then deposits the mail at the mailserver, and only after the server confirms does it send [presence][taken]. That one announce frame is the whole custody layer on the air. It names the mail's author and its message id, and carries one of four statuses (Section B.10):

• deposited: the mailserver accepted it just now. The sender's mail becomes deposited.
• already held: the mailserver had it before. Still "got it"; also deposited.
• delivered direct: a courier handed it straight to its only recipient, who acknowledged it. The sender's mail becomes sent.
• held: net control of a named net keeps it for a member who is off the air. It does not mean the mail is at the mailserver. The sender's mail becomes held (Section 22.8).

A gateway never announces custody it does not have. If the deposit fails, it stays silent, and the mail stays in play for someone else. A sender accepts a TAKEN naming its mail at any time, even long after it stopped listening for one.

24.5.3 When several gateways hear the same broadcast

Each waits a random time of up to four seconds before depositing. The first to finish sends TAKEN; the others hear it while they wait and drop the job. If two deposit anyway, no harm is done: the mailserver recognises the identical bytes and stores the mail once, and the second TAKEN says "already held".

24.5.4 When the sender missed the TAKEN

A TAKEN can be lost, and the sender will then send the mail again. A gateway that hears a mail it knows to be at the mailserver does not ignore the repeat; it answers "already held". It gives that answer at most once in 15 seconds for one mail. Because the repeat reaches every gateway at once, each waits a short random turn of its own before answering, so the first answer is heard by the others and they stay quiet. Where many gateways are in earshot, a repeat REQUEST is answered by place in line, as the first was.

24.5.5 Overheard mail

A gateway also overhears mail aimed at other stations. It deposits that too, with no TAKEN: the transfer in progress has its own proof of delivery, the recipient's acknowledgement. The quiet deposit costs no air, and the mailserver discards duplicates.

It pays off when the direct transfer fails. The sender's REQUEST for a relay names the mail, and a gateway that holds that mail can help without any path to the recipient. It waits three to four seconds, and if in that time it hears neither a SELECT choosing a radio relay for the mail nor another station's TAKEN, it deposits the mail again and sends TAKEN. A gateway that hears five or more other gateways does not rely on that short wait, because dozens of gateways may hold the same mail. It takes a place in line among the gateways it has heard in the last half hour, by the rule relay volunteers use (Section 19.3.4): places one and two answer about three seconds after the REQUEST, on different announce channels, three and four at about five seconds, five and six at about nine. A gateway past the sixth place still leaves its copy at the mailserver and says nothing on the air. A gateway waiting to answer drops its answer the moment it hears another gateway's TAKEN for the same mail. If a REQUEST goes by with no answer heard, each gateway draws its place from half as many on the next one, down to six, so a few gateways among many still answer within a request or two. The sender's station counts its search as answered and marks the mail deposited. The mailserver behaves like a relay with endless patience: it hands the mail over whenever the recipient next turns up.

24.6 Couriers: carrying mail toward the internet

Now suppose nobody who heard a pickup broadcast is a gateway. The mail is in their stores, but nobody can deposit it. A station that hears a pickup broadcast and cannot deposit it becomes a courier: it holds the mail and moves it one step closer to the mailserver, or to its recipient, when a chance comes along.

24.6.1 Who becomes one, and the wait

A courier announces nothing when it takes the job. It already has the mail in its store; it makes a note: this mail, this author, still needs a way out. A station keeps up to eight such jobs at a time.

Four kinds of station never make the note: a working gateway (the custody rule covers it), a station set to listen only, a station whose relay setting is below allow bulk (Section 19.9), and any station when the sender of the broadcast was itself showing the gateway flag, because the courier would only be carrying the mail back to where it came from.

A courier waits at least 24 seconds before doing anything, because a gateway that heard the broadcast directly can take about that long, on a busy channel, to deposit and get its TAKEN on the air. On top of that comes a wait of its own: one of 8 turns on a quiet net and of up to 16 on a busy one, the turns six seconds apart, plus up to three seconds more. Its first chance therefore comes between 24 seconds and a little over a minute after the broadcast on a quiet net, and up to two minutes after it on a busy one. Two couriers holding the same mail reach their first chance at different moments, and the later one sees what the earlier one did. A TAKEN heard at any point ends the job.

24.6.2 Handing it on

Once its wait is over, a courier checks about once a second whether it has a way forward:

1. If the mail has exactly one recipient, no Cc and no outside address, and the courier has heard that recipient in the last two minutes, it sends the mail straight to them. Delivery beats custody. When the recipient acknowledges, the courier sends TAKEN with the "delivered direct" status.
2. Otherwise, if a gateway is on its heard list as on the net (Section 18.9), it sends the mail to the most recently heard one. The gateway applies the custody rule, deposits, and sends TAKEN.
3. Otherwise it keeps waiting, and transmits nothing to say so.

Either way the transfer carries a FOR frame at the front naming the mail's true author and its id, the same frame a relay uses (Section 19.5), so the mail is filed under the person who wrote it and not under the courier. A courier holds off for two seconds after hearing a gateway's PRESENCE, since that gateway is still transmitting and cannot hear anything yet, and while any announce channel is reserved (Section 17.2).

Net control of a named net uses the same hand-off for mail it keeps for an absent member (Section 22.8.4), aimed at gateways only, since it delivers to its members itself. The gateway deposits and says TAKEN "deposited"; net control keeps its own copy and still delivers it if the member checks in first, and then tells the gateway with a "delivered" message (Section 24.9) so the mailbox copy is closed.

After a gateway acknowledges the transfer, the courier allows 30 seconds for the TAKEN. If none comes, or the transfer came to nothing, it tries again a minute later. It keeps the job for one message lifetime (Section 20.4) and then forgets it. That is the courier giving up, not the mail: the sender's station still owns the mail and keeps trying.

24.6.3 A crowd of couriers

Picture a pickup broadcast heard by ten stations, none of them gateways, and then a gateway coming into range. Three habits stop all ten sending the same mail to it.

• Spread out. The random waits above mean the couriers do not all move at once.
• Stand back when another courier is already carrying it. A courier that hears a FOR frame naming the mail cancels its own attempt, even one already queued or on the air, and waits a minute or more before it looks again. If the other courier succeeds, a TAKEN ends the job. If it fails silently, the job reopens.
• Stop the moment it is done. When a TAKEN for the mail is heard, every courier drops the job wherever it stands. A copy waiting in the send queue is removed; one on the air is cut off cleanly (Section 16.9).

24.6.4 Carrying the news back

The gateway's TAKEN reaches the stations that hear the gateway. But the sender may have been heard only by the courier, and may never hear that TAKEN. The courier whose finished transfer the TAKEN answers therefore repeats it once, toward the sender.

Only that one courier does it, and lazily. It skips the repeat if the links map says the sender hears the gateway directly (Section 18.8). Otherwise it waits three seconds plus 0.7 seconds for every decibel by which its link estimate for the sender falls short of +18 dB, plus up to six seconds more that differ from station to station. A courier that has not heard the sender in the last half hour counts as hearing it worst and waits about 23 to 29 seconds. If another TAKEN for the same mail is heard first, the repeat is cancelled.

Each courier only ever moves the mail closer: from a holder to a gateway, or from a holder to the recipient. Nobody plans a route.

24.7 When nobody took it: waiting for a gateway

After a pickup broadcast airs, the sender listens for a TAKEN for ten minutes. If none arrives, the mail becomes deferred with the note "no pickup: waiting for a gateway". Nothing is transmitted while it waits, and no clock ends the wait (Section 20.6).

The cue to try again is an event: hearing any PRESENCE that shows the gateway flag. The station then waits two seconds, waits for all three announce channels to be free of reservations, and sends its waiting mail again. This time it aims the mail at the gateway it has just heard: a transfer aimed at one station gets an acknowledgement and repair of lost frames, and the gateway's custody rule takes it from there. Several waiting mails go together (Section 24.11). If the link to that gateway is too weak for a transfer of that size, the mail is broadcast again instead.

A mail that has been tried and failed does not go again on every gateway heard. It waits the same doubling gaps as any deferred message, one minute to thirty-two (Section 20.6.1). A gateway heard while a mail is inside its gap is remembered, and the mail goes as soon as the gap ends, provided the gateway has been heard within the last two minutes. The station also holds these sends back while it is slowing its large transfers on a crowded channel (Section 17.7.2).

24.8 Receiving mail without asking

To receive mail held at the mailserver, a station normally does nothing at all. It does not need to be registered, to have internet, or to ask.

24.8.1 A gateway hears you

Every transmission starts with a PRESENCE. A gateway that hears one, from any station and for any reason, asks the mailserver over the internet whether that station's mailbox holds anything unread. If it does, the gateway sends [presence][avail]. AVAIL is an announce frame naming the mailbox, the number of unread mails and their total size. If the box is empty, the gateway says nothing.

Three limits keep this polite. A gateway looks in any one station's mailbox at most once in fifteen minutes. When it has told a station of waiting mail and the station has not asked for it, the gateway waits longer before saying the same thing again: 15 minutes after the first time, 30 after the second, and 60 after the third and every later one. The wait goes back to 15 minutes when the station asks this gateway for its mail or about its mailbox, or when the number or size of the mails waiting changes. A station heard asking a different gateway for its mail has plainly been told already, so every other gateway counts that as a telling of its own and stays quiet for its first wait of 15 minutes. That quiet is given once for each gateway the station asks. It never offers to a station that shows the gateway flag, because that station fetches its own mail over the internet. And when several gateways hear the same station, each waits a turn of its own within the first ten seconds or so, and a gateway that hears another's AVAIL for that station, or hears the station ask another gateway, drops its own, including one still waiting for its turn.

24.8.2 Offer, request, delivery

A station that hears an unasked AVAIL for itself, showing mail waiting, and that cannot reach the mailserver itself, answers by itself with [presence][get]: an announce frame naming that gateway and asking it to deliver everything. The gateway fetches the oldest unread mail and sends it as an ordinary directed transfer with a FOR frame in front naming the mail's author. When the recipient acknowledges, the gateway tells the mailserver the mail was delivered, and then sends the next. One mail per transfer, each confirmed before the next starts.

A GET gets no acknowledgement of its own. If nothing arrives within 12 seconds the station sends it again, up to three times in all, and it holds the repeat back while a delivery from that gateway is visibly under way. If the gateway still has not answered, the station asks again two minutes later and then at doubling gaps, for as long as that gateway's AVAIL is less than ten minutes old. On the gateway's side, a repeated GET while the same mail is already queued or on the air for that station does not start a second copy.

24.8.3 Asking instead of waiting

A station can also ask. It sends a mailbox query, [presence][qry]: "any gateway, please check my mailbox". A gateway that hears it checks and answers with an AVAIL marked as an answer, even when the answer is "no mail". Gateways take turns as they do with unasked offers. A station may send one query a minute.

The query can ask for a list as well. The AVAIL then says a list follows, and the gateway sends one to three short messages, each a mailbox listing payload naming up to five waiting mails, oldest first: the author, the size, the mail's id and the first 14 bytes of its subject. Nothing is delivered until the operator chooses. Without the list, the station answers the AVAIL with a GET for everything.

If no gateway answers within 30 seconds, the station looks for a gateway that told it about waiting mail in the last ten minutes, and if there is one, sends that gateway a GET.

24.9 Mailbox business that travels as a message

The four mail frames reach only the stations that hear them directly. For business with a gateway out of direct range there is a mailbox control payload (Section 21.3): a few bytes sent as an ordinary directed message, so that the relay handshake can carry it. It has eight uses.

• Fetch one. It names a mail from a listing by its author and its id, and asks the gateway to deliver exactly that mail.
• A relayed query and its answer. A station whose QRY nobody answered may send the same question as a message to the gateway it heard most recently in the last two minutes. This is off unless the operator switches it on, because it spends a third station's air time on routine traffic. The gateway answers with the count and size, as a message, and starts delivering without waiting for a GET.
• Registering, and the server's answer. A station with no internet sends its public key to a gateway, which registers it at the mailserver and sends back the server's public key (Section 25.3.1).
• Which lists exist, and the answer. The answer names up to eight mailing lists with the number of subscribers of each.
• Delivered. Net control names a mail it has delivered directly to a member, by its author, its id and the member, and the gateway marks the member's mailbox copy delivered (Section 22.8.4). A gateway that overhears a delivery and the member's acknowledgement does the same by itself, with nothing sent.

24.9.1 Mailing lists over the air

Lists live at the mailserver (Section 25.7.1), and a station without internet uses them with nothing but mail. To post, it sends a mail with the list's address as an outside address. To join or leave, it sends a mail to the list's address whose subject or body is the single word "subscribe" or "unsubscribe". Either goes out as a pickup broadcast, a gateway deposits it, and the server acts on it; the confirmation comes back as mail. Since a default server accepts a carried mail only when it can check the sender tag, this works for a station that has registered, which it can do over the air.

24.10 How a pickup is named

A mail on the air is named by its two-byte message id (Section 16.2.2), and two bytes are too few to name a mail alone. So every mail frame or payload that names a mail carries the author's callsign beside the id: TAKEN, the FOR on a delivery, the fetch-one request. In storage a mail is looked up by the pair.

One wrinkle is particular to mail. The id depends on the on-air addressee, so the same mail aimed at a gateway and sent as a broadcast would have two different ids. For pickup and custody mLink always uses the broadcast form, computed as if the mail had been sent to 0CQCQCQ, whichever way a copy travelled. The sender, the courier and the gateway all compute the same number without anyone transmitting it. The one exception is a gateway answering a REQUEST for a relay: its TAKEN quotes the id the REQUEST used.

24.11 Bundles

Every transfer starts with opening frames, and those are the part most likely to collide with somebody else. So when a station is about to send a mail, it looks at what else is queued. Any other mail for the same station joins the same transmission as a bundle: up to eight mails, each kept byte-for-byte as it would have been sent alone. When the destination shows the gateway flag, waiting pickup broadcasts join too, since the gateway would deposit them anyway. Several waiting pickups can also go out together as one broadcast. Compression works across the whole bundle, so mails with similar headers shrink further together.

A bundle holds at most 48,000 bytes of mail before compression when aimed at one station, and 5,600 bytes as a broadcast, which keeps it inside the broadcast limit. Each mail inside keeps its own id, worked out by both ends in the broadcast form, so custody, TAKEN and the spotting of duplicates work on each mail separately, and each keeps its own entry in the sender's outbox. Encrypted mail and mail addressed to an area are never bundled.

24.12 What to remember

• A mail has two addresses: the station the transmission is aimed at, and the recipients inside the mail. A mismatch between them is how a mail asks to be carried onward.
• The station picks the way out. A gateway deposits mail for a station it has not heard in two minutes and airs nothing. Otherwise: direct to the recipient, then a relay or a gateway that overheard it, and for several recipients a pickup broadcast.
• Custody is claimed with one TAKEN frame, and only after the mailserver has confirmed the deposit. Couriers stay silent until they act, stand back when another is carrying the same mail, and stop the moment it is taken.
• A station receives without asking: a gateway that hears its PRESENCE checks the mailserver and sends AVAIL; the station answers with one GET.
• A mail fits one transfer: 64,004 bytes wrapped to one station, 6,028 as a broadcast. Several mails for one station travel as a bundle.

The windows where an operator sets up, registers and uses the mailserver are described in Chapter 5.

25.1 A mailbox server with no radio

The mailserver, called the CMS (central mail server) in the station's log, never touches audio, never transmits, and never reads a station's database. Stations reach it in exactly one way: a gateway, a station with a working internet connection, sends it a request on its own behalf or on behalf of a radio-only station it has heard. When gateways do that is the subject of Chapter 24.

The program is deliberately plain. It keeps everything in one database file, listens on the local machine only (port 8380 unless told otherwise), speaks unencrypted HTTP and handles one connection at a time. The public address and its TLS certificate belong to an ordinary reverse proxy in front of it. Everything a station asks goes to one address as a small JSON document naming a command, and every request is complete in itself: there is no session to open or keep alive.

25.2 What it stores

25.2.1 The mail exactly as it flew

The mailserver stores each mail as the exact packed bytes that go over the air, the same bytes a station keeps in its own store. It unpacks a mail only to read what it needs: the recipients, to know which mailboxes get a copy, and the subject and size, to show in a listing. A gateway that later fetches the mail gets those same bytes back and sends them unchanged. There is one mail format in mLink, not a radio format and a server format with translation in between.

25.2.2 Mailboxes appear on their own

There is one mailbox per callsign, and it comes into existence the first time a mail arrives for that callsign. The owner does not have to have registered, or even to have heard of the mailserver. Mail simply waits. Registration matters for other things: asking the server anything at all, and letting other stations hand in mail the owner wrote (Section 25.5.1). Reserved addresses such as 0CQCQCQ are never mailboxes; the server skips them when handing out copies.

25.2.3 A mail only moves forward

Each stored mail has one of three states, and it only ever moves forward:

1. Deposited: waiting for its recipient. This is what "unread" means in a listing.
2. Fetched: the recipient has it, either because their own station collected it over the internet or because a gateway delivered it over the air and reported the delivery.
3. Archived: the owner's station has confirmed that it holds its own copy. A station that collects its mail over the internet does this as soon as the mail is safely stored. Archived mail drops out of the ordinary listing.

Collecting mail never deletes it, and nothing deposited or fetched is ever removed automatically. The server's operator may choose to delete archived mail after a number of days, in an hourly sweep; the default is to keep everything.

Each mail also records whether it came from the internet, from a radio gateway or from the server itself.

25.2.4 How the server tells mails apart

The server identifies a mail by its own row number and by a fingerprint of its bytes (a SHA-256 hash). A mailbox can hold a given fingerprint only once. That one rule makes every deposit safe to repeat: if five gateways overhear the same broadcast and all deposit it, the mailbox ends up with one copy, and the later depositors are told they were not first.

The server also stores the mail's two-byte on-air message id (Section 16.2.2), because gateways quote it, but never relies on it to tell two mails apart.

25.3 Mail login: the mailkey

A station that wants to ask the mailserver anything registers once. From then on it proves who it is with a mailkey: a 32-byte secret that only that station and the server hold. A secret cannot be sent over amateur radio in the clear, and it may not be sent encrypted either (Section 26.1). So the mailkey is never sent at all. Both ends work it out.

25.3.1 Registering without sending a secret

The first time it needs one, a station creates a key pair on the standard P-256 curve: a private key that never leaves the station's computer, and a matching 65-byte public key. The mailserver has a key pair too. Registration swaps the two public keys and nothing else:

1. The station sends its callsign and its public key.
2. The server records the callsign against that public key, and answers with its own public key and a key number.
3. Each side combines its own private key with the other side's public key, by the ECDH method, and runs the result through a standard key-derivation step (HKDF-SHA256) together with a fixed label, the callsign and the key number. Both arrive at the same 32 bytes. That is the mailkey.

The station keeps its key pair, the key number and the mailkey in its own database. The server keeps the station's public key and the mailkey.

Because nothing secret crosses in either direction, registration also works over the air. A station with no internet sends its public key to a gateway as a mailbox-control message of 66 bytes; the gateway registers it at the server and sends back a status, the key number and the server's public key, 71 bytes (Section 24.9). The gateway holds neither private key and can compute nothing from what it carries. A dishonest gateway that swapped in a wrong server key would leave the station with a mailkey the server does not share: a registration that does not work, not a stolen identity.

The server program also accepts a registration by callsign and password, and then makes up a random key and returns it in its reply. That path is for tools and administrators on the internet. No mLink station registers that way, and no password is ever part of an exchange over the air (Section 26.5).

25.3.2 When someone else claims your callsign

The first registration for a callsign claims its mailbox. After that, an attempt to register the same callsign with a different public key, or with a wrong password, gets nothing. The server adds one to a conflict counter for the mailbox, records the attempt, and puts a notice titled "Mailbox ownership conflict" into the real owner's mailbox. Only one such notice is outstanding at a time, so repeated attempts do not flood the box. Registering the same public key again changes nothing.

For a real dispute the server's administrator has two offline commands: one lists every mailbox with unresolved conflicts, and one resets a mailbox's credential by hand.

25.3.3 A second device

A home station and a field laptop under one callsign each have their own key pair and therefore their own mailkey. Since a second public key for a claimed callsign is refused, the second device needs the first one's permission, and the server provides for it with an enrollment code. A registered device asks for one: 128 random bits, valid for 24 hours, usable once. The operator carries it to the new device by hand, and the new device registers its public key together with a keyed check computed with the code over its callsign, the time and its public key. That check is safe to send in the clear: a 128-bit random code cannot be guessed from it the way a password could, and the code works once. The server tries up to eight keys for one callsign.

This is a function of the server. The station software has no control yet for asking for a code or for using one.

25.3.4 Signed requests

Every request other than registration carries three extra fields: the station's callsign, the time in seconds since the mLink epoch (Section 21.5), and an 8-byte keyed check. The check is the first 8 bytes of an HMAC-SHA256, keyed with the mailkey, over a fixed label, the callsign, the time and a hash of the request's body. The server works the check out again with each mailkey it holds for that callsign and accepts the request if one matches.

It refuses a request whose time is more than ten minutes from its own clock (the default; the server's operator can change it), any exact repeat of a request it has accepted, and any request older than one it has already accepted from the same callsign. Together those stop someone replaying a recorded request. Every request also carries a number of its own, so that two otherwise identical requests in the same second do not look like a replay. The check proves who is asking and hides nothing: the request itself is readable.

25.4 Open pickup: anyone may carry anyone's mail

Any registered station may list and fetch any station's mailbox, not just its own. That is the open-pickup model, and it is what makes receiving without asking work (Section 24.8): a gateway that hears a station asks "what is waiting for this callsign?" under its own mailkey, fetches the mail, and delivers it over the air. Three rules keep this sensible:

• Looking does not count as delivery. When a gateway fetches someone else's mail, the mail stays deposited.
• Delivery is reported, and the reporter is recorded. After the recipient acknowledges the mail over the air, the gateway tells the server so, and the mail moves to fetched. Any registered station may make that report, and the server's journal records which one did. Everything is attributable, which is what ham nets have always relied on.
• Managing a mailbox is the owner's job. Archiving mail and filing it into folders are allowed only on your own mailbox.

25.5 Mail coming in

Mail enters a mailbox in one of five ways.

25.5.1 A gateway deposits mail it carried

This is the everyday case. The gateway sends the mail's bytes, the author's callsign and the mail's on-air id. Its own callsign is proved by the signed request; the author's is only claimed.

That claim is checked with the sender tag, the two bytes a registered station puts at the end of every mail it writes. The tag is the first two bytes of an HMAC-SHA256, keyed with the author's mailkey, over every byte of the mail before it, under a different fixed label from the one signed requests use, so that neither can be passed off as the other. The server tries the claimed author's mailkeys against it:

• The tag matches. Only a holder of that mailkey could have made it, so the claim is proved and the mail is accepted.
• The author is registered here and the tag matches none of their keys. Refused, always. The failure adds one to that callsign's conflict counter and is journaled. The refusal names the callsign and how many keys were tried, because the usual innocent cause is a gateway naming the station that handed it the mail and not the mail's author.
• The mail has no tag, or its author is not registered here so the tag cannot be checked. Refused by default. A server started with a permissive setting accepts these; that setting is for bringing up a new net before its stations have registered.

So mail from an unregistered station still reaches anyone it can reach over the air, but on a default server no gateway can carry it into a mailbox.

25.5.2 Why two bytes are enough

A real digital signature would cost 64 bytes, which is 41 % of the 156 bytes a shortburst holds (Section 15.2). Two bytes are 1.3 %. mLink chose air time.

Two bytes work because of how the tag can be attacked. Nobody can compute a tag without the mailkey, so there is nothing to work out at leisure from recorded traffic. A forger can only guess, and each guess means handing the server a deposit: one chance in 65,536 for each key the author has. The server limits the guessing where it is aimed. Once five deposits naming one author have failed that author's tag within ten minutes of the first failure, every further deposit naming that author is refused until those ten minutes are up, whichever station posts it, and the refusal comes before any key is tried. The count is kept on the author, not on the depositing station: a gateway that carries a forged mail it heard on the air is not the forger. The price is that someone posting bad tags under your callsign can hold up mail that other stations carry in for you; mail you send over the internet yourself is not affected.

25.5.3 A station sends directly over the internet

A registered station with internet can hand a mail it wrote straight to the server. No tag check is needed: the author is the station making the signed request.

25.5.4 A distress call is heard

A gateway that completes an on-air distress call writes it up as a mail and deposits it (Section 23.8). The server files it in the reserved SOS mailbox, the permanent record, and gives a copy to every station subscribed to the reserved mailing list "sos". Every gateway that hears the same call writes the same bytes, so the fingerprint rule merges their deposits into one. A distress deposit is never refused for a missing sender tag.

25.5.5 Internet email arrives

If its operator sets it up, the mailserver collects incoming internet email from an ordinary email provider's mailbox, every 60 seconds by default. It does this as a POP3 client (POP3 is the standard way to download mail from a mailbox); it is not a server that mail programs can connect to. The addressing is either CALLSIGN@ the operator's domain, sent through a catch-all, or mailbox+CALLSIGN@, which works on any provider that keeps the part after the plus sign. Each email becomes an mLink mail in that callsign's mailbox, from the special sender EMAIL, with the email address as the sender name. The server keeps the subject and the first plain-text part, up to 60,000 bytes. Email to anything that is not a valid callsign is thrown away. The server does not speak encrypted POP3 itself; it expects a small local tunnel program to handle that.

25.5.6 The server writes to you

The server sends its own notices as sender MLINKMAIL: ownership conflicts, and confirmations of mailing-list subscriptions.

25.6 Encrypted mail: not held here yet

mLink can encrypt a mail for services whose rules allow it, such as the MARS and SHARES programs (Section 26.3). On amateur frequencies encryption stays off, and nothing in this section applies.

The mailserver holds no key that opens anyone's mail, and it is never given one. It files a mail by reading it: the recipients decide which mailboxes get a copy, and the sender tag is checked against the text. An encrypted mail gives it nothing to read. So today's rule is simple: an encrypted mail is never deposited. It goes over the air to the stations it is addressed to and nowhere else.

The stations enforce this, not the server:

• A station asked to send an encrypted mail by internet refuses, and says why. The operator sends it over the air or sends it in the clear.
• A gateway that hears an encrypted mail does not deposit it, even when it holds the group key and could open it. Depositing would file the opened text where its author never sent it.
• No station carries an encrypted mail as a courier, bundles it with other mail, or sends it to the mailserver first when the recipient is not answering.
• In a cluster, an encrypted mail is not copied to another member's radio.

The cost falls on the sender. Nothing holds an encrypted mail for a recipient who is off the air: no mailbox, no pickup later from another gateway, no copy to an email address or a mailing list. The mail waits at the sending station, which keeps trying, and every attempt goes out encrypted the same way. A service that needs both encryption and a mailbox that holds mail for absent stations does not get both from mLink today.

The on-air side of the same rule is in Section 24.4.7.

25.7 Where a mail goes

When a mail arrives by any of these routes, the server gives a copy to each recipient.

• Every To and Cc callsign gets a copy in its own mailbox.
• An outside address at the mailing-list domain (lists.mlink.org unless the operator changes it) is a mailing list.
• Any other outside address is internet email. It joins a queue for sending out.

The server reports back how many of the copies were new. That is what lets a gateway say on the air either "deposited" or "already held".

25.7.1 Mailing lists

A list is named by its topic, the part before the @: letters, digits, dots, dashes and underscores, up to 32 characters, case ignored. A topic comes into existence with its first subscriber.

A mail to a list whose subject or body is exactly "subscribe" or "unsubscribe" is a command from its sender: the server updates the list and mails back a confirmation, and nobody else sees it. Anything else is a post, and every subscriber except the author gets a copy. A registered station with internet can also join, leave and ask for the list of topics with a signed request. How a station without internet does the same is in Section 24.9.1.

25.7.2 Email out

If the operator configures one, the mailserver hands queued internet email to an outgoing mail relay, acting as an SMTP client (SMTP is the standard way to send mail). The relay is usually a mail program on the same host. The mail goes out from CALLSIGN@mlink.org by default, carrying the subject and body text; attachments are not sent on. The queue is checked every 15 seconds. A failed attempt is retried after 30 seconds, then after doubling delays up to eight hours, and a message is marked failed after ten attempts.

25.8 Mail going out to stations

A station reads a mailbox in two steps: a check, which lists what is there (sender, subject, size, state, id and folder), and a fetch, which returns one mail's bytes. A station whose mailserver link is on and registered checks its own mailbox every five minutes, fetches what is unread, and confirms each mail once it is stored. A mail that also arrived over the air appears once.

Folders exist on both sides. The server keeps an inbox for each mailbox and lets the owner file mail elsewhere; when an operator files a mail on a registered station, the station asks the server to file its copy the same way, naming the mail by its fingerprint.

25.9 Chat channels

The mailserver also hosts simple chat rooms for stations with internet. A channel is named like a mailing-list topic and comes into existence with its first line. A line may be up to 512 bytes; a channel keeps its most recent 500 lines, and a station collects new lines 50 at a time. Posting and reading both need registration. Chat is not mail: nothing is per-recipient, and nothing is kept once it has scrolled out of the 500.

25.10 The journal

Every change the server makes to mail and accounts (a registration, a deposit, a state change, a folder move, a list subscription, a failed tag, an email sent) also adds a line to a journal, in the same database transaction, so the two can never disagree. Journal lines hold references and facts (which mailbox, which mail, which station did it), not copies of mail or keys. It is the audit trail behind open pickup. Chat lines are not journaled.

25.11 Staying up: the warm standby

A mailserver can run with a warm standby: a second copy of the program on another host, kept up to date and ready to take over. The primary is started with a shared secret, which switches on two private addresses: one that reports the journal's latest line number, and one that returns a consistent copy of the whole database. The standby is started pointing at the primary with the same secret. Every 10 seconds by default it asks for the line number, and when that has moved on it downloads a fresh copy and swaps it in. The whole database is copied because the journal holds no mail and no keys and so could not rebuild them.

A standby refuses all normal requests with "service unavailable", so stations cannot write to two servers at once. To promote it, the operator restarts it without the standby setting. The server's own key pair lives in the database, so the promoted standby has the same one, and every station's mailkey keeps working without anyone registering again.

25.12 What to remember

• The mailserver has no radio. It keeps a mailbox per callsign, created on first arrival, holding each mail as the exact bytes that flew, and it never deletes mail that has not been picked up.
• A station proves who it is with a mailkey that both ends work out from swapped public keys. Nothing secret is sent, so a station can register over the air.
• Every request is signed with eight bytes of a keyed check and the time; every mail a registered station writes ends in a two-byte sender tag that only the server can check.
• Open pickup: any registered station may check and fetch any mailbox, so any gateway can deliver anyone's mail. Deliveries are reported, and the journal records who reported them.
• Today an encrypted mail never reaches the mailserver. It travels over the air to its addressees only, so nothing holds it for a station that is off the air. Help from the mailserver and from stations outside the encryption is planned and not yet built.
• Today's mailserver is bare-bones: one server, one hand-promoted standby, no management tools beyond SQLite's own. Stronger security, sharding, automatic duplication and management tools are planned and not yet built.

The encryption settings and the composer's encryption choice are described in Chapter 5.

26.1 The rule, and where mLink stands

In the United States, amateur radio is governed by Part 97 of the FCC rules. Section 97.113(a)(4) prohibits "messages encoded for the purpose of obscuring their meaning", and other countries' licences carry similar conditions. The test is simple: anyone with the right, openly available tools must be able to read what you send.

Security features meet that test in two very different ways.

• Authentication proves who sent something, or that it was not altered, while leaving the content fully readable. A signature at the bottom of a letter does not hide the letter.
• Encryption hides the content. That is what the rule forbids on amateur frequencies. mLink has an optional encryption layer because it is also meant for radio services where encryption is permitted, such as the MARS and SHARES programs, which operate under federal rules and not under Part 97. On amateur frequencies, leaving it off is the operator's responsibility.

Everything else mLink does to a message is readable by anyone running mLink. Compression is an openly published method with a dictionary built into every copy of the software (Section 21.4), and the frame formats are in this book (Appendix B).

26.2 Authentication: mail login

The authentication mLink uses on the air belongs to mail, and its home is Section 25.3. In brief: a station and the mailserver each work out the same secret from public keys they have swapped, so the secret is never transmitted; the station uses it to sign its requests to the server, and to put two bytes at the end of each mail it writes so that the server can tell that mail from a forgery. None of this hides anything, which is why all of it is usable on amateur frequencies.

26.3 Optional encryption

Encryption is asked for one message at a time, and only for three kinds of message: a text, a data message, and a mail sent by radio. Without a request a message goes in the clear, and a request the station does not understand is treated as clear too. A station with no keys loaded cannot seal anything. Everything a station sends on its own account is always in the clear: beacons, position reports, certificates, mailbox requests and listings, and every mail a gateway or courier carries for somebody else.

There are two modes, recorded in two bits of the envelope byte (Section 21.2):

• Group key. A 256-bit key shared in advance by everyone in a group and named by a 16-bit key number. Every station in the group must hold the same key under the same number; a station holds up to 16. No certificates are needed, and a group-key message may be addressed to one station or to everyone.
• Certificate. A key computed from the sender's private key and the addressee's certificate, particular to that pair of stations. It works only for a message to one named station.

A sealed mail travels over the air only. Depositing at a mailserver, courier carriage and bundling all work by reading the mail, so none of them is used for one (Section 24.4.7).

26.3.1 The cipher

• The message is sealed with AES-256 in GCM mode, an AEAD cipher: it hides the content and attaches a 16-byte tag that fails to verify if even one bit was changed.
• In certificate mode the two stations agree on a key by ECDH on the P-256 curve: each combines its own private key with the other's public key, and both arrive at the same secret, which never crosses the air. A standard key-derivation step (HKDF-SHA256) turns it into the AES key.
• Certificates are signed with ECDSA on the same curve.

26.3.2 Where it sits in a message

The message is compressed first and sealed second, because sealed data looks random and would not compress. The nonce (a "number used once") is 12 random bytes, fresh for every message, so the same text sent twice gives different sealed bytes. Certificate mode needs no key number: the key follows from who is sending to whom, and the transmission already says that.

26.3.3 What is protected, and what is not

The body and the kind byte are hidden, so a listener cannot tell a chat line from a mail. The rest of the transmission is as readable as ever: who is sending, who is addressed, how long the message is, and its 16-bit check, which is computed over the message before it is sealed (Section 16.2).

The receiving station reads the envelope byte, finds the key (the group key with that number, or the key it shares with the sending station) and opens the seal. If it has no such key, or the tag does not verify, the message is dropped and not acknowledged. A station that overhears a sealed message it cannot open keeps no copy today, and so cannot offer to relay it. Relaying by stations that cannot read the message is planned and not yet built.

In certificate mode the key between two stations is the same every time, computed from their two long-lived keys. That costs no extra transmissions, but anyone who later obtains one station's private key can open the recorded traffic between that pair.

26.4 Certificates and the keyring

Certificate mode rests on a certificate authority (CA) run by the group that wants it: one root certificate that every station in the group is given. A separate command-line tool, run on a machine that is not a station, creates that root and issues certificates, and the CA's private key never touches a station. Each operator receives a private key and a certificate, signed by the CA, that ties their callsign to their public key. The station is told where those files and the root are when it starts. A station without them still works; it can use group keys but not certificate mode.

To seal a message for a station you need that station's certificate. It arrives in one of two ways: installed by hand, or over the air, since a station can send its own certificate as an ordinary message whose payload kind is certificate, always in the clear because it holds nothing secret. Either way the receiving station accepts it only if it is signed by the root and the callsign in it is the callsign it was installed under or came from. Nobody can file a certificate under someone else's callsign.

All of this lives in the station's keyring: its own identity, if it has one, the group keys it has been given, and the certificates of other stations. Group keys and other stations' certificates are stored in the station's database and loaded again at start-up; the station's own private key stays in its own file. The station will report what it can do (whether it has an identity, which key numbers it holds, which stations it holds a certificate for) but never the keys themselves.

26.5 No password ever goes on the air

A password is short and guessable. If any proof of knowing one were sent by radio, a listener could record the proof and try every likely password against it at leisure, and the cure, encrypting the proof, is what the rule forbids. So no mLink exchange over the air contains a password or anything computed from one. What goes on the air in its place is a public key, when a station registers at a mailserver, and after that the two-byte tag on each mail (Section 25.3.1). The names and passwords operators use to sign in to a station stay between the client and that station (Chapter 7).

26.6 Why distress messages are never signed or sealed

A distress call (Chapter 23) has no envelope byte and no place for a key: it is a fixed format that every station can read.

The same holds when a gateway writes a call up as mail for the mailserver (Section 23.8). The write-up carries no gateway name, no clock time and no sender tag, so that every gateway hearing the same call writes exactly the same bytes and the server stores them once. A tag or signature inside it would be the gateway's, not the distressed station's, and it would differ from gateway to gateway, turning one incident into several. Who carried the call is still known, because the gateway's request to the server is signed. And the server never refuses a distress deposit for want of a tag.

26.7 What to remember

• Part 97 forbids hiding what a message says. Proving who sent it, with the content still readable, is a different thing and is allowed.
• Encryption is optional, off unless asked for per message, needs keys loaded on purpose, and exists for services that permit it. On amateur frequencies, leaving it off is the operator's responsibility.
• Two modes: a group key shared in advance, or a key computed between two stations from CA-signed certificates. AES-256-GCM; compress first, then seal; the body and the kind byte are hidden, the callsigns and the length are not.
• No password, and nothing computed from one, is ever sent by radio.
• Distress calls are never signed, never sealed, and never refused for lack of authentication.

The Tracked Data window and the map's weather menu are described in Chapter 5. This chapter is about how the data is described, asked for and carried.

27.1 The idea

A station in a field camp, on a boat or in a disaster area often has a radio and a laptop and nothing else, while a few hundred kilometres away another station has working internet. mLink lets the second fetch small, well-defined pieces of data for the first. Weather is the one data type the network carries today. The design keeps three things apart:

• a source is where data can come from and how to read it;
• a query is what you want: "the weather here, once" or "keep the weather there up to date";
• the cache is what you already have: the latest result for each source and set of parameters.

27.2 Sources: what a station knows how to fetch

An internet source is a capability, not a request. It describes one web service the station knows how to use: a web address with named blanks to fill in (a weather-station code, or a latitude and longitude), any request headers the service expects, and, for each field mLink wants, the path to that value in the service's JSON reply. It also names the kind of data the result is, a default refresh interval, an enabled switch and, for services that need one, an API key. The key stays on the station and is never sent on the air.

Two weather sources come built in, both enabled. One reads the latest observation from a US National Weather Service observing station, given that station's code, and refreshes every 10 minutes by default. The other reads current weather from wttr.in for any latitude and longitude, and refreshes every 30 minutes.

The list of sources lives in the station's database. An operator can add sources or change a built-in one; an edited built-in source is marked as the operator's own, so a later software update can add new sources without overwriting the change.

27.3 Queries and the cache

An internet query is a record that says "I want this data". It names a source and its parameters, and makes two choices. How often: one-off (fetch once, then stop; the record stays for reference) or tracked (fetch again every refresh interval until it is removed or disabled). How: from this station's own internet, or by asking over the air and waiting for another station to answer.

A third kind is never created by an operator: a peer-served query, which the station makes for itself when it hears another station ask for data and can answer (Section 27.5).

Queries are kept in the station's database, so tracked queries carry on after a restart. Each records where its latest data came from (this station's own internet, or a peer over the air), when, and whether the last attempt succeeded.

Results go into the cache, one entry per source and set of parameters. An entry outlives the queries that filled it: stale data is still useful data, especially in the field. Entries that no enabled query uses and that are more than seven days old are cleared out when the station starts.

27.4 Asking over the air: the INET-REQ frame

When a query is set to ask over the air, the station sends one short transmission: its PRESENCE, saying who is asking, followed by one INET-REQ frame (Table B.17).

[presence][inet_req]

The request has no addressee. It is a question to anyone in earshot who can answer, and it says four things: the kind of data wanted (weather at a position is the only kind today), a session number, a freshness hint, and the parameters for that kind, which for weather are a latitude and longitude good to a metre or two.

27.4.1 The session number and the freshness hint

The answer comes back some seconds later as a separate transmission, and the session number ties the two together. The asker picks it at random from 1 to 254, stores it on the query, and looks for it in every answer that arrives. Each request gets a new one, so an answer to an older request, arriving after the station has asked again, does not match and is set aside.

The freshness hint is the asker's way of saying how old an answer may be and still be useful; it is 30 minutes unless the query says otherwise. It is a hint, not a contract: an answering station today fetches fresh data every time.

Asking is a transmission the station chose to make, not a reply someone is waiting for, so it goes at normal priority (Section 17.4). A tracked query sends a fresh request, with a fresh session number, at each refresh interval, so the data keeps arriving for as long as someone in range can supply it.

27.5 Who answers

Every station that hears an INET-REQ considers it. What happens next depends on what the hearing station has.

• An enabled source for that kind of data. It makes a peer-served query with the requested position, preferring the latitude-and-longitude weather source since that is what the request carries, and fetches the data from its own internet. If the fetch succeeds, it gets ready to answer.
• A source, but the fetch fails, for example because the internet is down just now. It says nothing.
• No enabled source for that kind. It says nothing. A station that cannot help stays quiet and leaves the air to one that can.

Several connected stations may hear the same request, and one answer is enough. So a station with an answer ready does not send it at once. It waits 0.3 seconds plus a random time of up to about 7 to 10 seconds (longer when more stations have been heard lately), and if the station is busy or hears a signal when that time comes, it waits a little longer. A station that hears another station's answer to the same asker and session while it is waiting drops its own.

The asker gives each request an answer window of 20 seconds. If nothing arrives, a one-off query asks once more with a new session number, and after a second silence it is marked "no station answered". A tracked query is left alone: it asks again at its next refresh anyway.

A station set to listen only neither asks nor answers.

27.6 The answer: an ordinary short message

The answer is not a special frame. It is an ordinary message addressed to the asker, sent as a shortburst (Section 15.2):

[presence][sbrts][shortburst]

What makes it an answer is inside the payload. Its kind byte says internet response (Section 21.3), and the first two bytes of the body repeat the kind of data and the session number from the request. The weather record follows. The answer is sent once; if it is lost, the asker's second request or a tracked query's next one brings another.

27.6.1 The weather record

The weather travels as a packed binary record of 18 bytes, not as the JSON the web service returned, which runs to hundreds or thousands of bytes.

The answering station converts whatever units its source used (pascals or millibars, metres per second or kilometres per hour) into this one format, so the asker never needs to know which web service answered. With the envelope byte, the kind byte, the data kind and the session, the whole payload is 22 bytes. A record that small and that dense does not get smaller with compression, so it goes out as it is.

On arrival the asker decodes the record, stores it in its cache as if it had fetched it itself, marks the query as answered by a peer, and gives the clients a map marker at the requested position.

27.7 The background worker

A web request is slow by radio standards: a bad one can hang for tens of seconds while a server times out. Meanwhile the station has to keep listening, decoding and keying the transmitter on time. So all internet work is kept away from the radio side of the station (Chapter 29).

• One background worker does all the slow work. Every web fetch, and every other job that waits on the network (talking to the mail server, for example), is handed to a single worker and run there, one after another.
• The station's database is never held during a fetch. The worker takes the database only for the brief moments it needs to read a source or store a result, so the radio side never stalls behind a slow website.
• Every fetch has a time limit: 10 seconds to connect and 30 seconds in total.
• Unchanged data is not downloaded twice. Where a service supports it, the station tells the server which version it already has, and the server can answer "not changed".

Tracked queries schedule themselves on the same worker: when a fetch finishes, the next one is booked for one refresh interval later.

27.8 What to remember

• A source is a capability (a web service and how to read it); a query is what you want (one-off or tracked, from your own internet or over the air); the cache keeps the latest result.
• An off-grid station asks with [presence][inet_req]: one question to anyone in earshot, carrying the kind of data, a session number, a freshness hint and a position.
• Stations that can fetch the data wait a random time, and the first one answers with an ordinary directed short message; the rest stand down when they hear it. A station with no source, or whose fetch fails, stays quiet.
• A weather answer is an 18-byte record, 22 bytes of payload in all.
• All internet work runs on one background worker, with time limits, and never holds up listening, decoding or transmitting.

The World Map window, its tools and its menus are described in Chapter 5. This chapter is about what goes over the air and what the station keeps.

28.1 Your station's position

28.1.1 Grid squares and how precise they are

Amateur radio names places with the Maidenhead grid locator, such as DM43. Each pair of characters divides the previous area again: two letters name a field of 20° of longitude by 10° of latitude, two digits a square of 2° by 1° (roughly 170 by 110 km at mid latitudes), and two more letters a subsquare of 5 by 2.5 minutes of arc, a few kilometres across.

Every PRESENCE frame carries the sender's locator to six characters (Section B.5): a subsquare, about 5 by 7 km at mid latitudes. It costs nothing extra and it is on every transmission, so every station heard has a place on the map: the centre of its subsquare. An operator who would rather not say that much can set the station to send four characters, which puts it only within a square of roughly 170 by 110 km. A station that has declared an emergency sends six whatever the setting. The map keeps whatever precision was heard last. The frames in this chapter are finer still. An area can be given as a six-character locator; a position report, a map object and a weather request carry latitude and longitude to about 1 to 2 metres; a distress call carries them to about 10 to 20 metres, with a statement of how far to trust them (Section 23.3.1).

The grid square you configure also answers two questions other stations ask: "is anyone in this area?" (the geopoll, Section 18.5) and "am I inside the area this message was aimed at?" (later in this chapter). Both use the centre of that square. A station with no grid square set never claims to be anywhere.

28.1.2 A precise position, typed or from GPS

The station also keeps a precise position for itself, separate from the grid square. An operator can type one in, or a GPS receiver can keep it current.

mLink does not talk to GPS hardware itself. It reads fixes from gpsd, the standard Linux GPS service, over its network interface (by default on the same computer, TCP port 2947). The station daemon connects, asks gpsd to stream position reports, and uses any 2D or 3D fix. A vehicle standing still would otherwise cause a disk write every second, so the daemon stores a new position at most every 10 seconds, or sooner when the station has moved more than 25 metres. If gpsd is not running yet, the daemon tries again after 5 seconds, doubling the wait up to a minute, so the order in which things start at boot does not matter.

The precise position moves your own marker on every connected client's map and feeds the automatic position reports below. It does not change the grid square in your PRESENCE; that stays the one you configured.

28.2 Position reports

Radio amateurs have tracked vehicles and hikers for decades with APRS, the Automatic Packet Reporting System: a station sends its position now and then, and everyone's map shows it moving. mLink has the same idea as an announce frame of its own, the position report, and borrows the name for it.

28.2.1 The position report frame

A position report is one announce frame (Section B.12). It holds a latitude and longitude, a course in 2-degree steps and a speed in km/h (both optional), and one printable character that listeners use as the map symbol, * unless the sender chooses another.

The frame carries no callsign. It is credited to the station whose PRESENCE came just before it on the same announce channel (Section 14.5), so a report goes out as [presence][position]. A report whose PRESENCE was missed cannot be credited to anyone and is dropped: an anonymous dot on the map is noise, not information.

Reports are sent once and never acknowledged; the next one will be along soon. Each station that hears one moves the sender's marker to the reported spot and adds the point to that sender's track history, which the map shows as a trail.

28.2.2 Sending reports

A report goes out in one of two ways.

• Once, on request. The client asks the daemon to send one report and gives it the position, and a course and speed if it has them.
• Automatically. The daemon sends a report on a set interval whether or not a client is connected, which is what a vehicle or a backpack station wants. The daemon accepts any interval from 30 seconds to one day and raises anything shorter to 30 seconds; the client's settings offer 2, 5, 10 and 30 minutes. The first report goes out one full interval after the beacon is switched on, and each interval is varied by up to 20 % either way so that two trackers on the same setting do not keep colliding.

The automatic report uses the precise position if the station has one, and otherwise the centre of its grid square. It reports the station as stationary (no course or speed), and up to three of the station's HELLO frames may ride behind it (Section 18.7.1).

A position report is routine traffic. It goes on any free announce channel and waits until one is free, with the same random wait as a beacon (Section 17.3). A station set to listen only sends none, and none go out while the station's own SOS is active (Section 23.2); the SOS frames carry the position anyway.

28.3 The tactical overlay

A position report says where one station is. A search, an event or a wildfire response also needs to say where things are: the area already searched, the route of a march, the command post, the last known position of a missing hiker. The tactical overlay is a shared set of such map objects. A station sends them, and they appear on the map of every station that receives them, labelled with the sender's callsign.

28.3.1 What an object can be

There are four shapes. A point may have a radius, which makes it a circle, and one or two wider rings at twice and three times that radius. A line and an area (a closed polygon) have up to 24 corners. A vector is a bearing and a range from a point. Every object has a colour, a symbol, a label of up to 39 characters and a comment of up to 120, and positions are stored to a metre or two.

An object can also carry a course and speed. The map then shows where the object would be by now, joined to its last reported spot by a dotted line, the way APRS maps show dead reckoning. The projection stops at 24 hours.

28.3.2 How objects travel

Map objects do not have an announce frame of their own. A batch of 1 to 64 objects is packed into a compact payload of its own payload kind (Section 21.3) and sent like any other message, so it gets the right size of transmission for its length and a chance at compression without anything new on the air.
